TRUE RESIDENTIAL
™
ELECTRICAL REQUIREMENTS
For all built-in models, the electrical supply should be located within the shaded area shown in the
illustration (See Figure 5). Follow the National Electrical Code and local codes and ordinances when
installing the receptacle. A separate circuit, servicing only this appliance is required. A ground fault
circuit interrupter (GFCI) is not recommended and may cause interruption of operation.
NOTES:
• THE OUTLET MUST BE CHECKED BY A QUALIFIED ELECTRICIAN TO BE
SURE THAT IT IS WIRED WITH THE CORRECT POLARITY.
• VERIFY THAT THE OUTLET IS PROPERLY GROUNDED.
• POWER SUPPLY 115 V AC, 60 HZ
• CIRCUIT BREAKER 15 AMP
• RECEPTACLE 3-PRONG GROUNDING-TYPE
FRONT VIEW

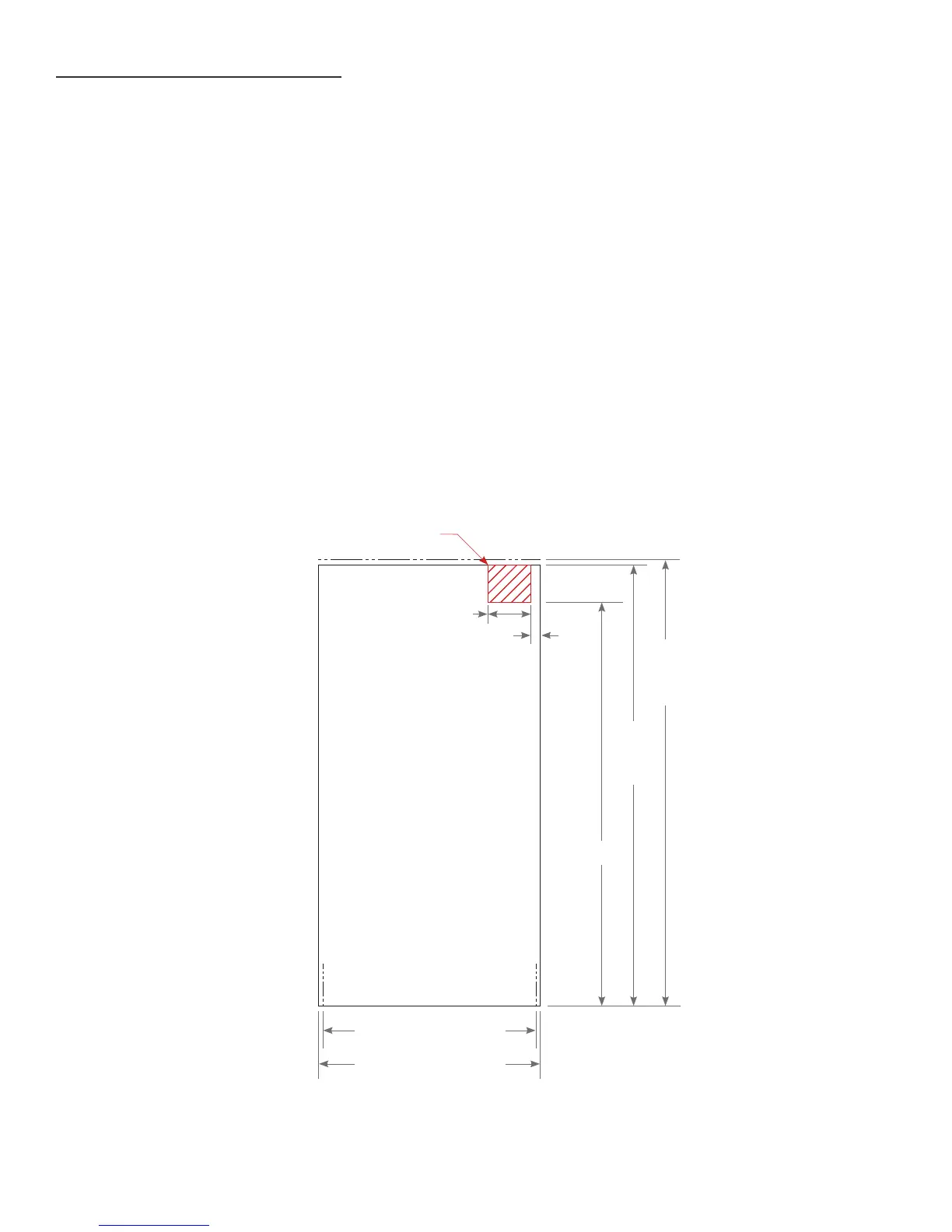

FIGURE 5 - ROUGH OPENING
41
¾
" PROUD INSTALL
42
¼
" FLUSH INSTALL
8
"
Electrical located
in this area
2
"
84
¼
"
FLUSH
INSTALL
84
"
PROUD
INSTALL
77
"
NOTE: DIMENSIONS MAY VARY BY ±
1
/
8
”
To Next Page
