True 42 - Page 8

4
TRUE RESIDENTIAL
™
SITE PREPARATION
• Rough Opening dimensions. (See figure 1 and 2)
• For FLUSH installations the front face of the unit will be flush with the surrounding cabinets. (See figure 3)
• For PROUD (Standard) installations, the front face of the unit will extend beyond cabinets. (See figure 4)
24
" MINIMUM
PROUD INSTALL
TOP VIEW

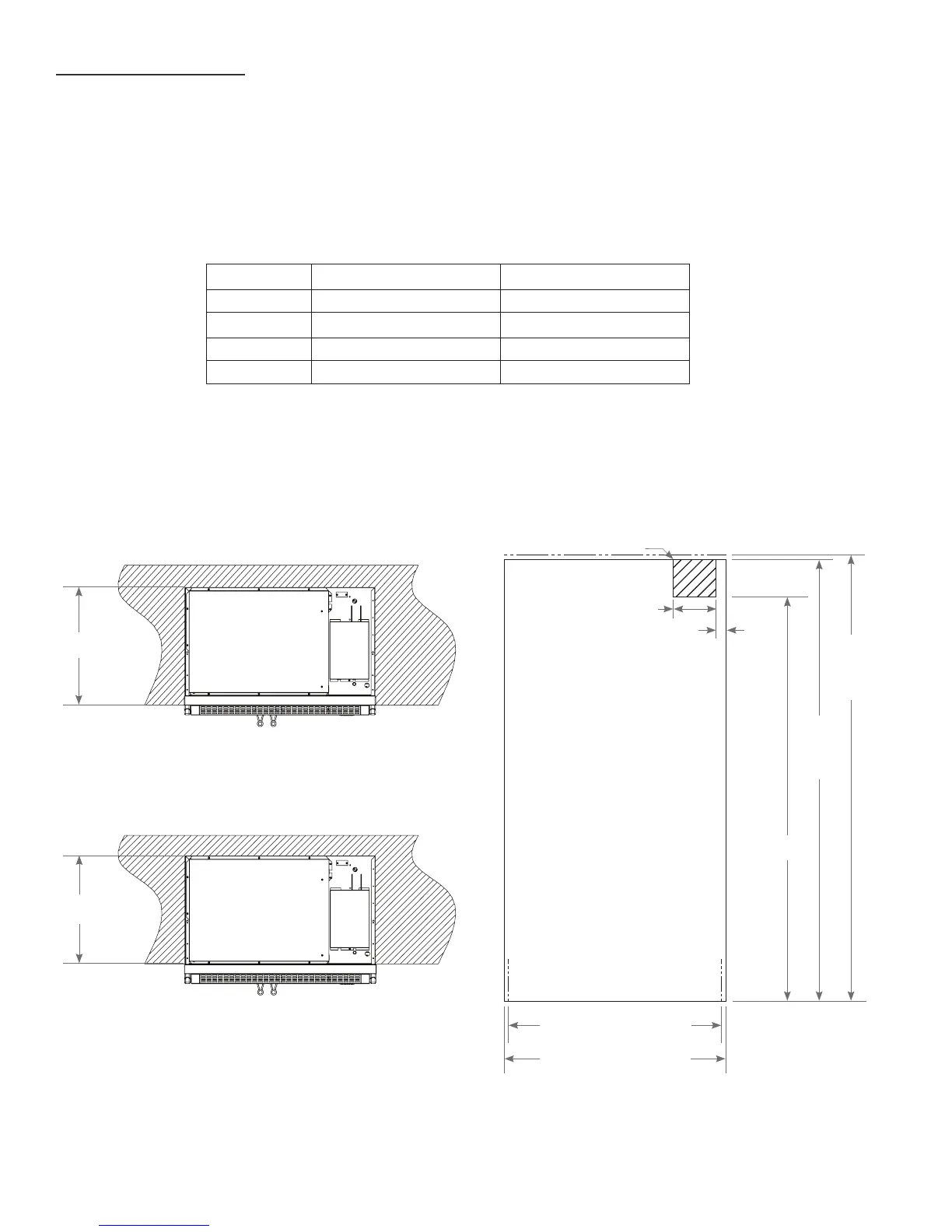

FIGURE 1 - ROUGH OPENING
FLUSH INSTALL
PROUD INSTALL
FRONT VIEW
FIGURE 2 - ROUGH OPENING
MEASUREMENTS & WEIGHT
41
¾
" PROUD INSTALL
42
¼
" FLUSH INSTALL
NOTE: DIMENSIONS MAY VARY BY ±
1
/
8
”
FLUSH PROUD
WIDTH
42
¼
”
41
¾
”
DEPTH 26
”
24
”
HEIGHT
84
¼
”
84
”
WEIGHT* 720 Lbs 720 Lbs
Cord Length 8 feet 8 feet
8
"
Electrical located in
this area
2
"
84
¼
"
FLUSH
INSTALL
84
"
PROUD
INSTALL
77
"
* Because of the weight of this unit, it is recommended to consult a ooring
expert prior to installation. The ooring beneath the unit should be rated to
support at least 150 pounds per square foot.
26
" MINIMUM
FLUSH INSTALL
