Assembly Instructions
3

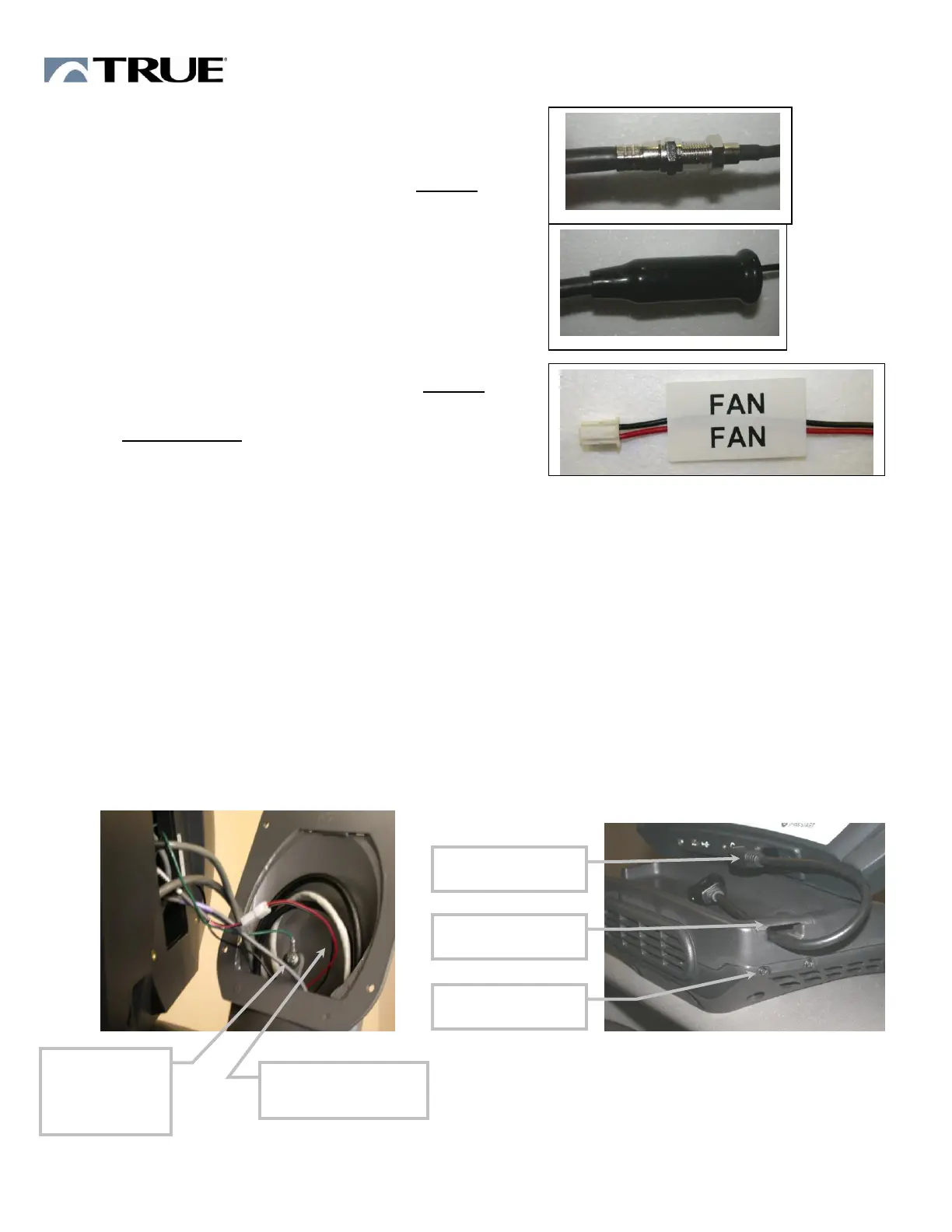

8 COAX Cable (Coaxial Video) - CABLE
1. Torque to 1.8 ft-lb +/- .3 ft-lb (2.5 N-m +/-0.5 N-m)
2. Slide rubber boot COMPLETELY over COAX
connection so that no metal is visible.
IMPORTANT: See Important TV Signal
Requirement on Page 1. (Not present on
PS850 model)
9 FAN Cable– red and black wire - CABLE
(DC Fan Power from Display)
STANDARD on CS500, CS550, CS800 models
Not available on LC1100 model
NOTE: 2-pin connector is polarized. Insert properly.
5. After cable connections are made, gently recess all excess cabling back into Console Rack neck
(where cabling exits). See Fig. 1 below.
6. Place Display onto Console Rack neck mounting flange so that flange sits in display recess.
7. Attach using four M5 screws w/ split lock washer (b).
8. Remove two small screws on right side of Fan Housing. See Fig 2 below.
9. Lift up on Cord Retainer to remove. Set Cord Retainer and screws aside.
10. Place iPod ® cable into recess on top right side of Fan Housing.
Note: iPod ® Cable is not removable from Display Front. Any attempt to remove cord could
damage cord or display front lower panel.
11. Replace Cord Retainer into Fan Housing.
12. Replace two small screws into Fan Housing.
Fig 1 Fig 2: Fan – CS Products Only
iPod® Cable
Small Screw
Cord Retainer
Secure
6 GND
here
Excess cables
nested here
