True CS800 Assembly Instructions

Assembly Instructions
7
BIKES and ELLIPTICALS

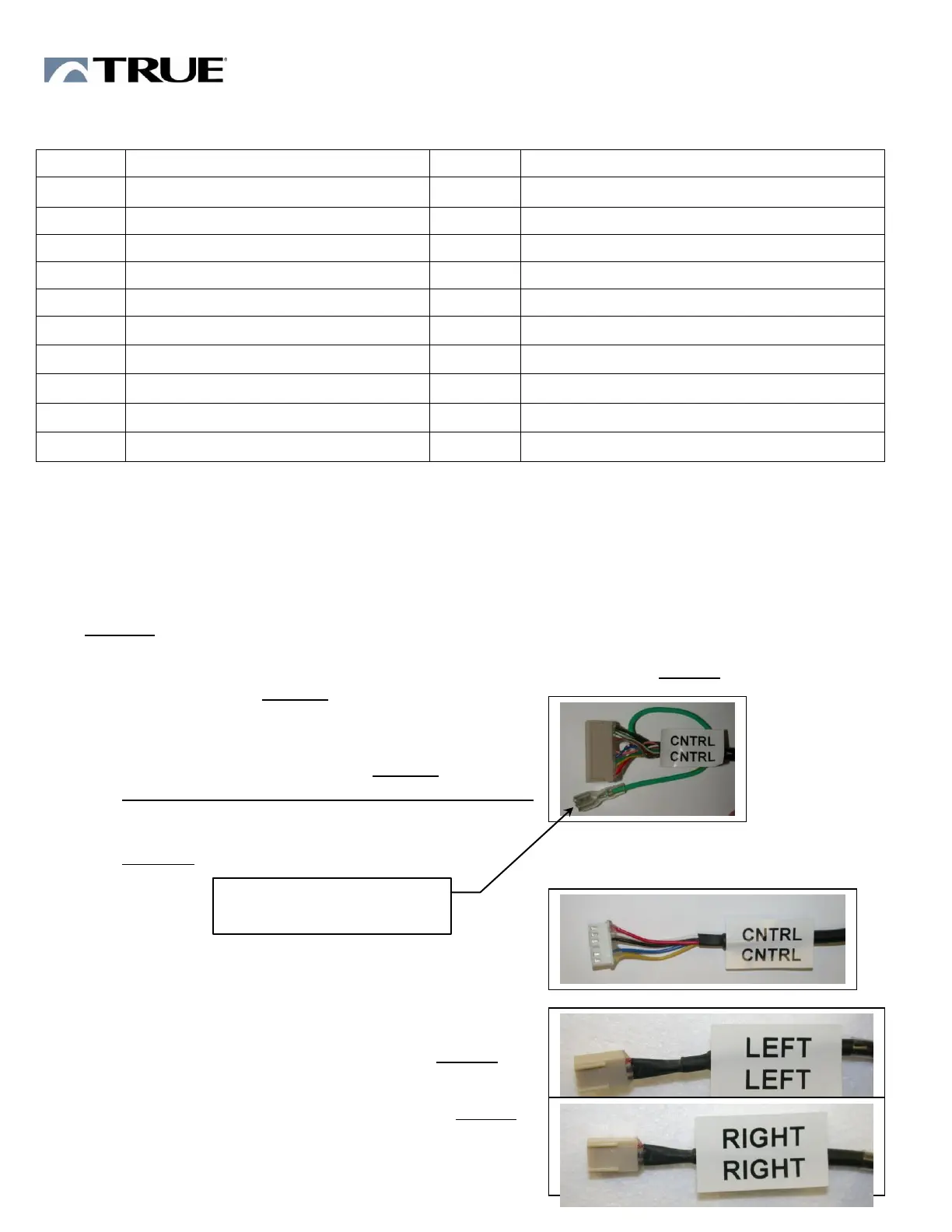

15 INCH LCD with TOUCHSCREEN DISPLAY HARDWARE KIT
ITEM
DESCRIPTION
QTY
WHERE USED
a
15 inch LCD Display
1
Treadmill Display
b
Screw M5 w/ lock washer
4
Display Attachment
c
Auxiliary Power Supply
1
In Frame for Display Power
d
8 inch Wire Ties
4
Secure Power Supply
e
4 inch Wire Ties
2
Cable Management
f
Fan*
1
Frame
g
Fan Grill – Plastic*
1
Console Lower Housing
h
Screw, Lock Washer, Nut*
2 each
Fan Mounting
i
Owner’s Manual CD
1
j
Warranty Card (on CD)
1
*NOTE: Optional item. Available only on Commercial Series (CS) products.
BIKES / ELLIPITICALS
1. Using 8 inch Wire Ties (d), install Auxiliary Power Supply per specific Bike or Elliptical Frame
Assembly Instructions shipped with bike or elliptical.
2. Install Fan and Fan Grill: Reference Bike or Elliptical Frame Assembly Instructions for installation.
Optional: Supplied with CS products only.
3. Firmly hold display. Using the DISPLAY CONNECTION DIAGRAM-BIKE and ELLIPTICAL, connect
the following Console Rack cables to their mating cable (indicated by CABLE), or connector on the
Display (indicated by BOARD).
1 CNTRL Control Cable – BOARD
NOTE difference in Bike and Elliptical connectors.
BIKE: 12-pin connector.
DO NOT connect green wire for this product.
ELLIPTICAL: 6-pin connector.
Connectors are polarized. Insert properly.
2 LEFT Contact Heart Rate Cable - CABLE
3-Pin connectors are polarized. Insert properly.
3 RIGHT Contact Heart Rate Cable - CABLE
3-Pin connectors are polarized. Insert properly.
↑BIKE
↓ELLIPTICAL
DO NOT CONNECT ON
BIKE MODELS
