Assembly Instructions
8

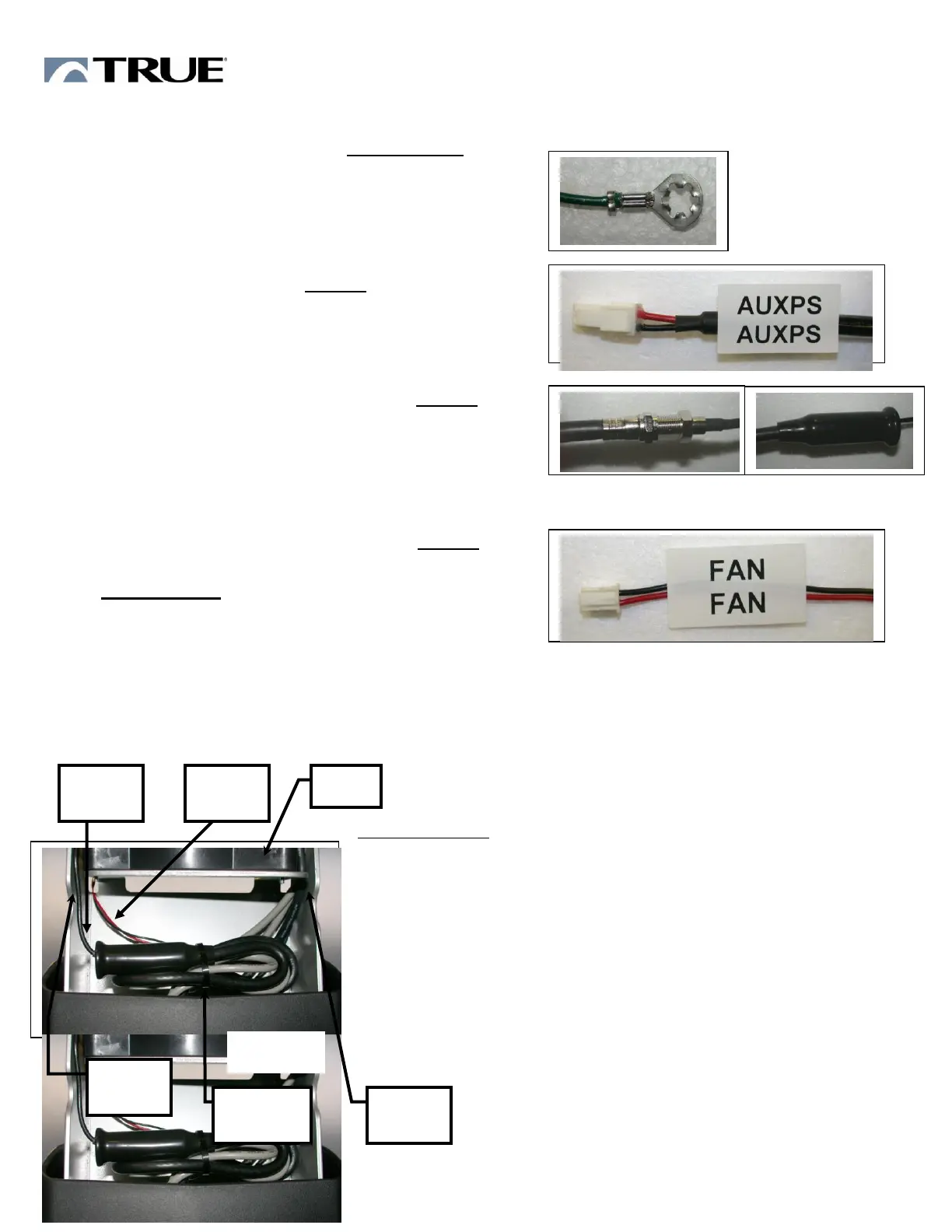

4 GND Display Ground – Console Rack
See pictures on next page of GND screw locations.
Position Ground lug pointing up so that it does
not interfere with the Display attachment.
5 AUXPS Cable – CABLE
(DC Power Supply to display)
2-pin connector is polarized. Insert properly.
6 COAX Cable (Coaxial Video) - CABLE
1. Torque to 1.8 ft-lb +/- .3 ft-lb (2.5 N-m +/-0.5 N-m)
2. Slide rubber boot COMPLETELY over COAX
connection so that no metal is visible.
IMPORTANT: See Important TV Signal Requirement on page 1.
7 FAN Cable: red and black wire - CABLE
(DC Fan Power from Display)
STANDARD on CS800 Upright and Recumbent
Bikes and CS800 Ellipticals. N/A on LC models.
NOTE: 2-pin connector is polarized. Insert properly.
4. Place Display onto Console Rack neck mounting flange so that flange sits in display recess.
5. Attach using four M5 screws w/ split lock washer (b).
6. After cable connections are made, gently recess all excess cabling into Console Rack neck (where
cabling exits).
a. For CS800 Elliptical: (see Fig 4a below).
i. These instructions will allow for an organized routing of cables,
prevent them from touching the rotating underside of Fan, and
prevent pinching cables when console housing is attached.
ii. Route red and black wires from Fan down into LEFT GAP.
Route under Fan and up through RIGHT GAP toward connection
to Fan display cable.
iii. Route COAX cable from display down into LEFT GAP.
iv. Slide all other cables into RIGHT GAP.
v. Gather cables below as shown and wire tie as shown in Fig 4a.
Be sure cables does not touch rotating underside of Fan.
To Next Page
