True CS800 - Display Console

Assembly Instructions
9
7. Follow Bike or Elliptical Frame Assembly Instructions for additional console housing attachments.
WARNING: Do not allow wires to be pinched when installing console housing.
Note: iPod ® Cable is not removable from Display Front. Any attempt to remove cord could
damage cord or display front lower panel.
_____________________________________________________________________________________________________________

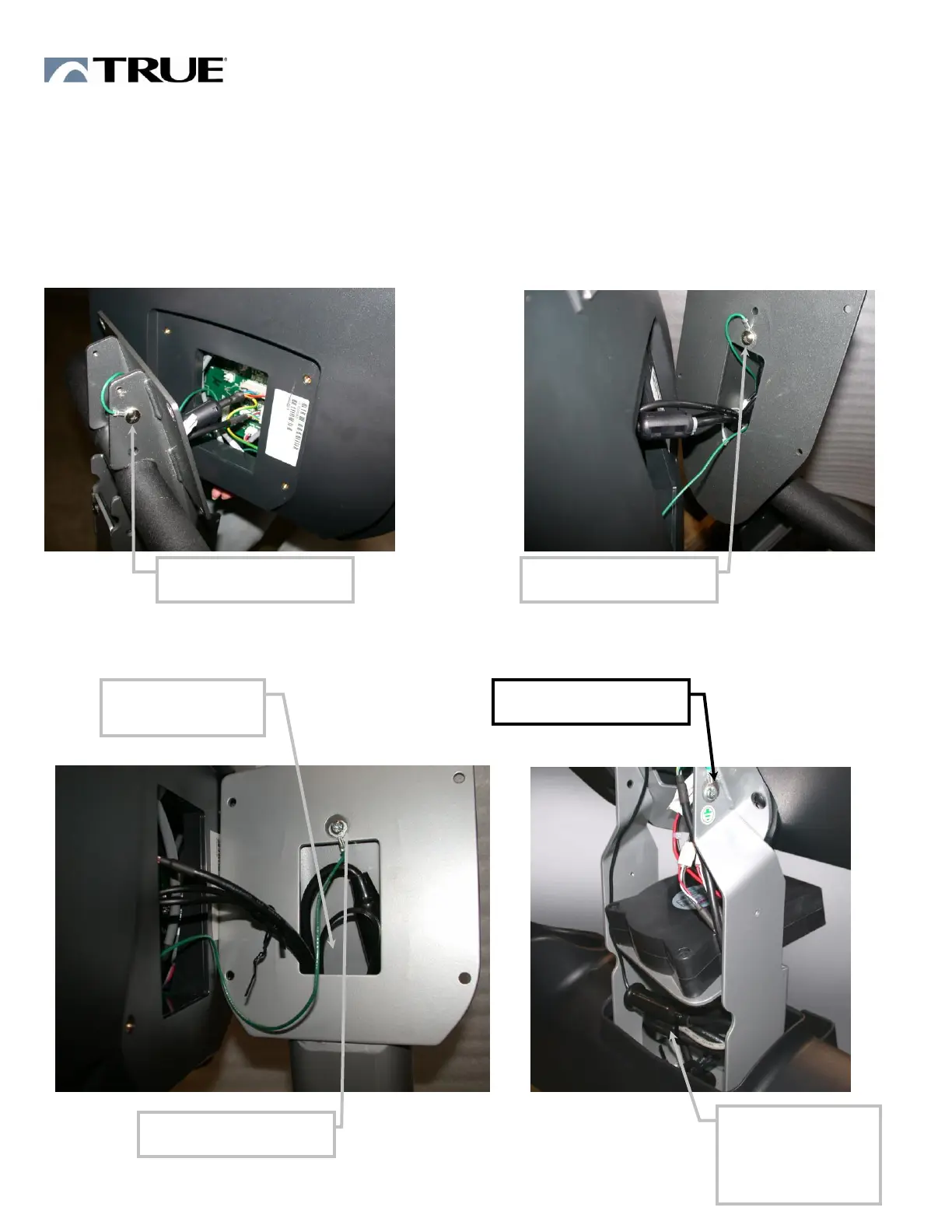

Ground Screw Locations for Bikes
CS800 Upright & Recumbent, LC900 Upright Bike LC900 Recumbent Bike
_____________________________________________________________________________________________________________
Ground Screw Locations for Ellipticals
LC900 Elliptical CS800 Elliptical
Secure 4 GND here
Secure 4 GND here
Secure 4 GND here
Secure 4 GND here
Excess cables
nested here.
See Step 6 for
details.
Excess cables
nested here
