9
TRUE
glass door merchandisers
www.truemfg.com

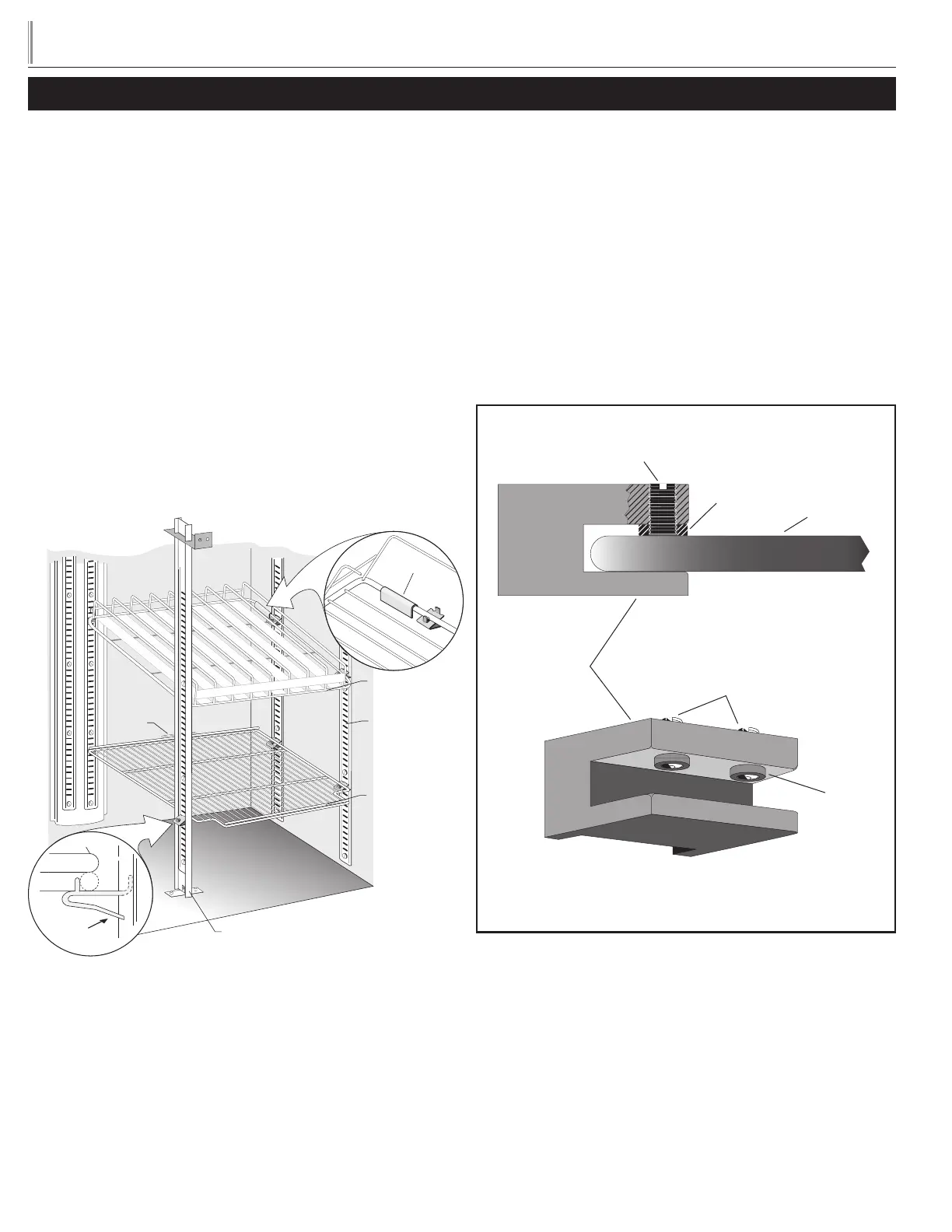

TRUETRAC ORGANIZERS: TrueTrac organizers for Glass
Door Merchandisers come with a package of shelf retainer clips.
Install clip on the side to the rear of organizer (see illustration) to end
of organizer that rests against left or right outside wall.
With correct installation, the retainer clip should separate the rear of
the organizer from the rear interior wall of the cabinet.
NOTE:
No retainer clips needed on center organizers of a GDM-69.
Shelf
Clip
Shelf
Shelf
Organizer
Pillaster
(I-beam)
Shelf
Standards
Retainer
Clip
T-Series
& GDM-5
Airflow
Guard
SETUP
Shelf Bracket
O-Ring
Shelf Retaining Screw
Glass Shelf
O-Ring
Shelf Retaining Screw
G4SM-23RGS SHELF BRACKET ASSEMBLY
STANDARD ACCESSORIES
SHELVING INSTALLATION / OPERATION
SHELF INSTALLATION:
A. Hook shelf clips onto shelf standards.
B. Position all four shelf clips equal in distance from the floor for
flat shelves.
C. Lower front of gravity feed TrueTrac organizers to enable
proper feed.
D. Place shelves on shelf clips making sure all corners are seated
properly.
WIRE SHELVES: Wire shelves are oriented so that cross support
bars are facing down.
NOTE: GDM-5 models include an airflow guard on the rear of
shelves to maintain an air space at the rear of the cabinet. (see illus-
tration).
