CHAPTER 2: ASSEMBLY INSTRUCTIONS
PRE-ASSEMBLY CHECK LIST (continued):

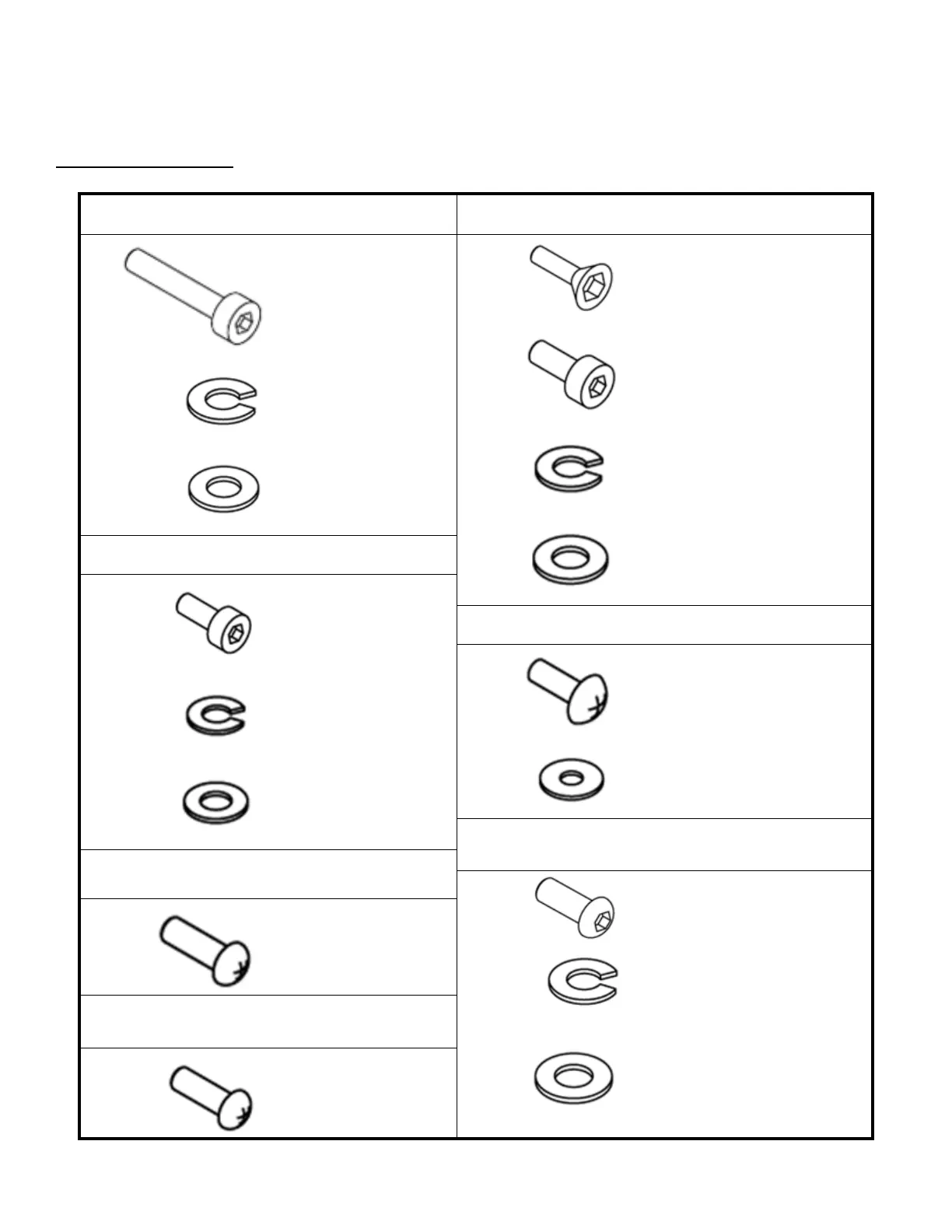

Provided Hardware:
STEP 1 & 2 (FRONT & REAR STABILIZER BARS) STEP 4 (SEAT HANDLEBAR)
Hex Screw, M10xL55
(X1) Qty. 4
Counter-bore Hex Screw,
M8xL20
(C4) Qty. 4
Hex Screw, M8xL20
(X4) Qty. 2
Sp
lit Washer, M10
(S1) Qty. 4
Split Washer, M8
(S4) Qty. 2
Flat Washer, M10
(F1) Qty. 4
Flat Washer, M8
(F4) Qty. 2
STEP 5 (SEAT BACK FRAME PIVOT ASSEMBLY)
Hex Screw, M6xL15
(X5) Qty. 8
STEP 6 (REAR SEAT PIVOT COVER)
Phillips Head Screw, M5xL15
(X6) Qty. 2
Split Washer, M8
(S5) Qty. 8
Flat Washer, M5
(F6) Qty. 2
Flat Washer, M8
(F5) Qty. 8
STEP 11 (FRONT MAST)
STEP 7 (SEAT BACK FRAME COVER)
Hex Screw, M10xL16
(X11) Qty. 5
Phillips Head Screw,
M5xL20
(X7) Qty. 4
Split Washer, M10
(S11) Qty. 5
STEP 15 (CONSOLE COVERS)
Flat
Washer, M10
(F11) Qty. 5)
Phillips Head Screw,
M4xL10
(X15) Qty. 4
