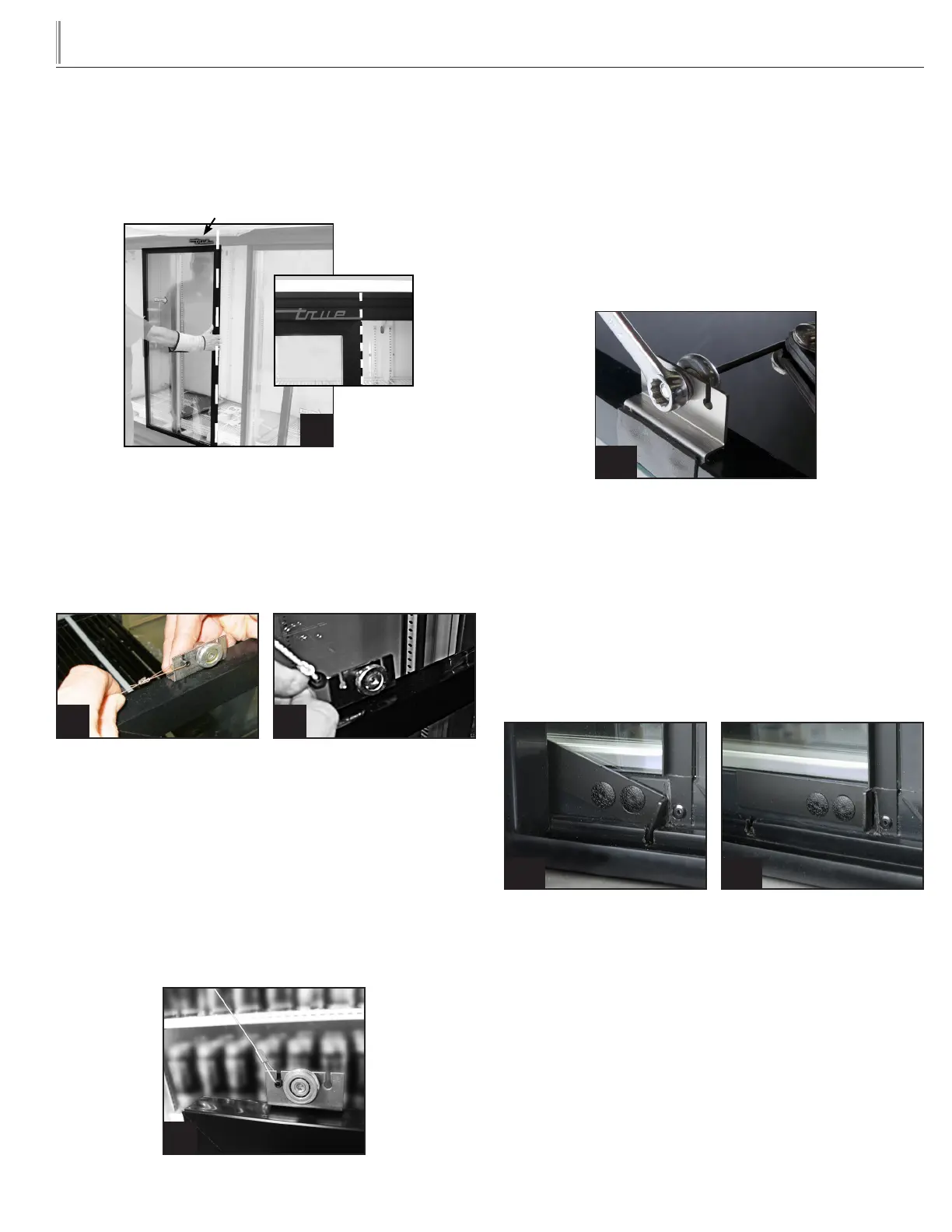

STEP 7 - Let the door cord slowly retract back into the door side
channel.
STEP 8 - When reinstalling door, make sure door cord grommet
attaches to roller slot closest to pulley. See image 9.
STEP 5 - Slide left door to the right so right edge lines up with the
end of the TRUE Logo located at the top of the door frame. See
image 6. Then lift door out of track same way as image 4.
(Three Door Units ONLY)
TRUE Logo
6
NOTE: Door cord will either be nylon cord or metal cable.
STEP 6 - Remove door cord from roller bracket. The black plastic
tab holding the door cord slides out the back. See images 7 & 8.
TO ADJUST SLIDE DOOR
STEP 1 - After cabinet is installed in a final location and correctly
leveled check for any openings when the slide doors are completely
closed. If there are any gaps/openings between the closed doors and
cabinet, the doors will need to be adjusted.
STEP 2 - Using a 7/16" wrench or adjustable wrench and 1/8" Allen
wrench loosen roller and move along slotted hole. After adjustment
has been made tighten the roller into place. See image 10.
10
7
Door roller bracket with metal cable.
8
Door roller bracket with nylon cord.
9
Door closing to the left
SLIDE DOOR UNITS WITH HOLD OPEN FEATURE
These instructions explain how to keep door in open position.
A. Slide the door open.
B. Latch the door in the open position from the back side of door
(notch in track).
C. Door latch in image 1 is in the open position.
D. Door latch in image 2 is in the closed position.
Rear view of door & track
1 2
