TDD-1 CO2 KNOCK-OUT
This instruction is TRUE’s recommended procedure for installing a
remote CO2 container.
REQUIRED TOOLS
• Pliers
• Power Drill
• Silicone Sealer
• Drill bit, 1/2"
STEP 1 - Remove black knockout plug with a pair of pliers.
NOTE: Knockout plug for CO2 line can be locate in two different
areas. View diagram to locate these two areas.
STEP 2 - Use drill and bit to bore hole straight back through wall
into compressor compartment.
STEP 3 - Snake CO2 line through hole down and around exiting
behind rear castor underneath rear grill.
STEP 4 - Seal hole around CO2 line with silicone sealer to
prevent cold air leakage.
O
F
F
9
8
7
6
5
4
3
2

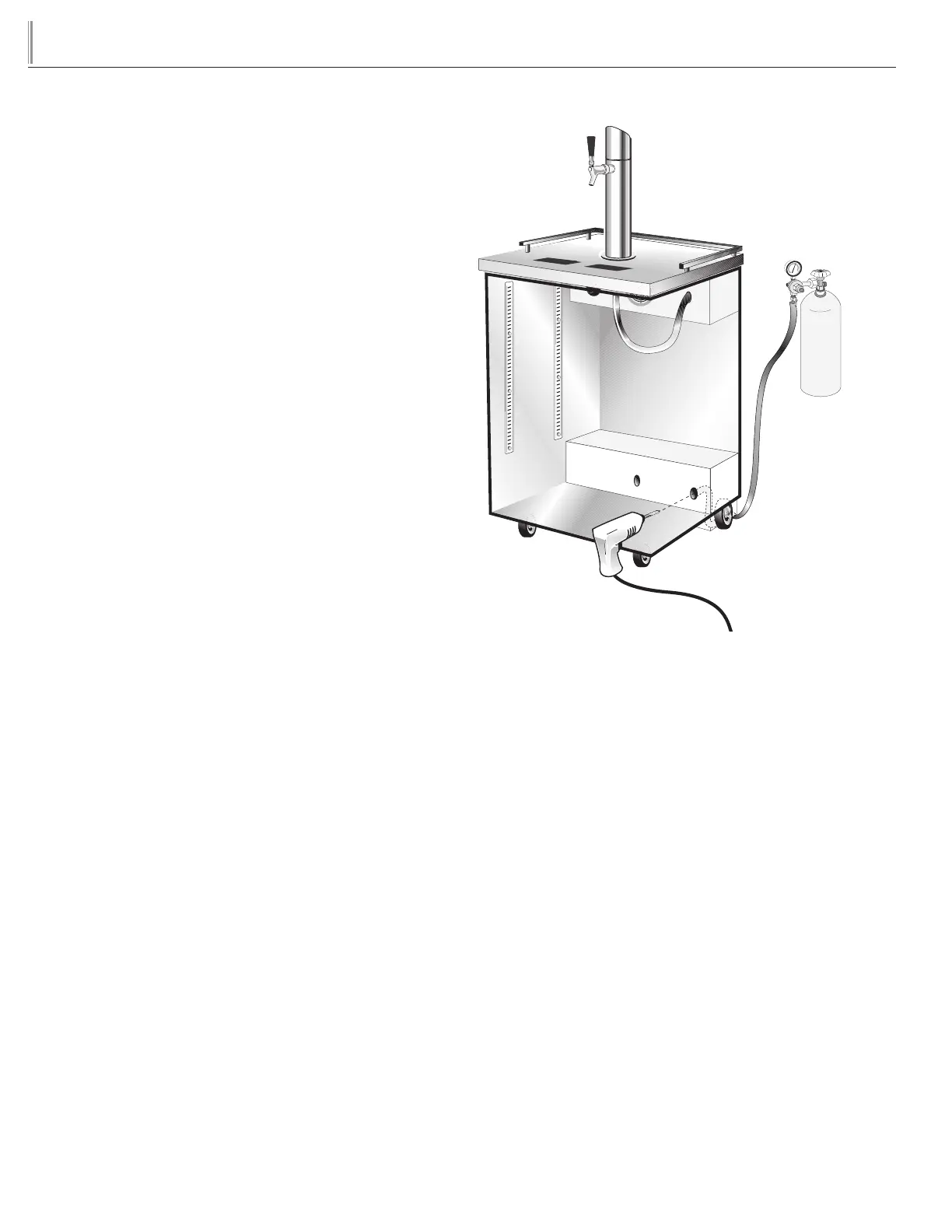

Knockout Plug can
be located at either
location.
