CHAPTER 2: ASSEMBLY INSTRUCTIONS
Truefitness.com / 800.426.6570 / 636.272.7100
11
BIKE ASSEMBLY STEPS:
CAUTION:
• Use caution when assembling bike. It is recommended that at least two people unpack and assemble bike.
• Remove all bike components from packaging.
• For each step use hardware in the corresponding bag
• To protect the floor from damage, rest the bike frame on a large piece of cardboard packaging

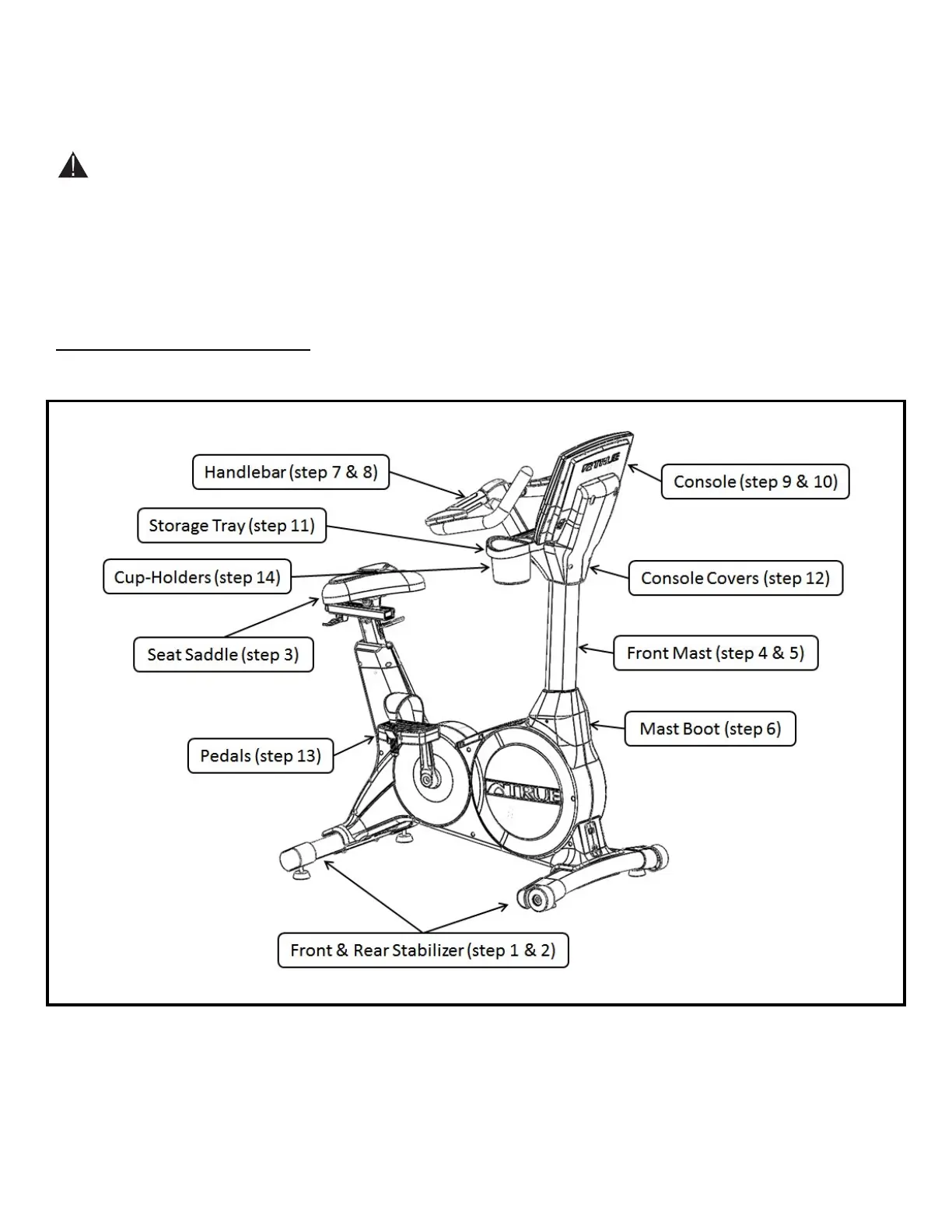

Sub-Assembly Identification:
Use the image below as a reference for where the provided sub-assemblies will be located in the complete bike assembly:
