CHAPTER 2: ASSEMBLY INSTRUCTIONS
Truefitness.com / 800.426.6570 / 636.272.7100
21

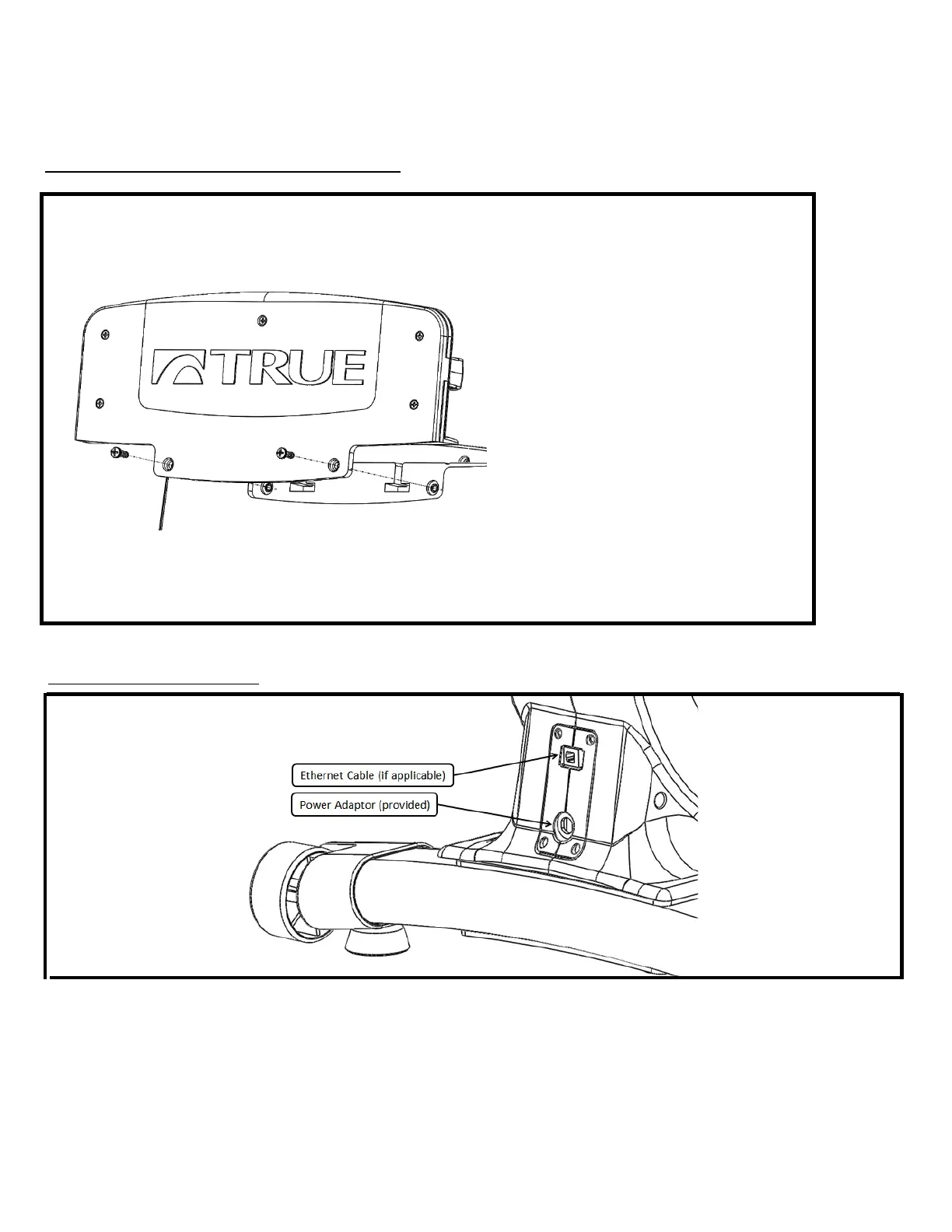

• Attach the two t-shaped bottom
connectors on the tablet holder to the
back of the console as shown.
• Secure the tablet holder to the back of
the console by fastening the M4 screws
(quantity 2) in the predefined holes as
shown using a Philips Head
screwdriver.
BIKE ASSEMBLY STEPS (continued):
Step 16 Attach Tablet Holder to Console:
Final Unit Connections:
