Trueview 7365 - Wiring Diagram and System Overview

Model 7365

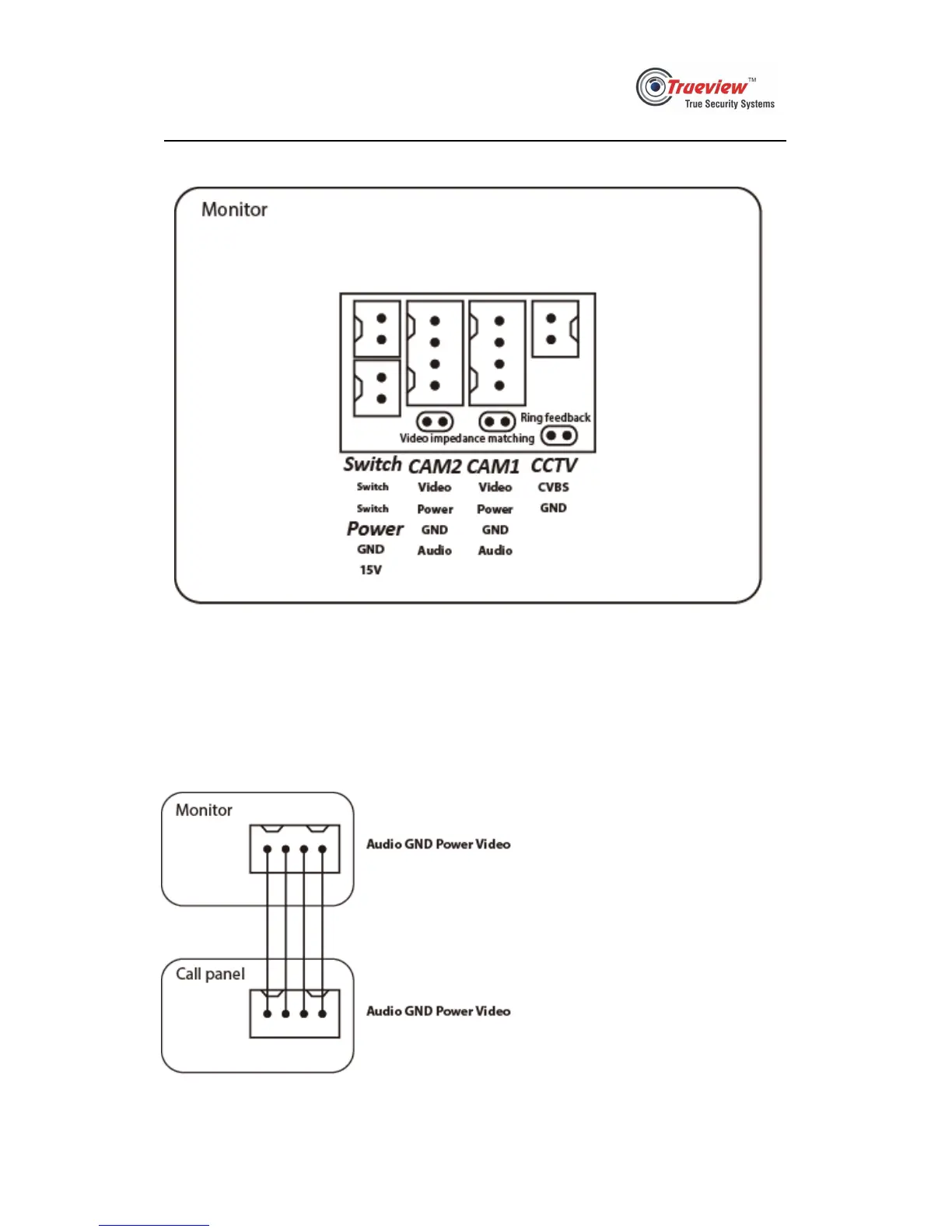

5. Wiring diagram
Power: 15V DC Input
CAM1: used to connect call panel 1
CAM2: used to connect call panel 2
CCTV: used to connect a CCTV video signal input (CVBS video signal)
Switch: can be used as the switch of CCTV
