6

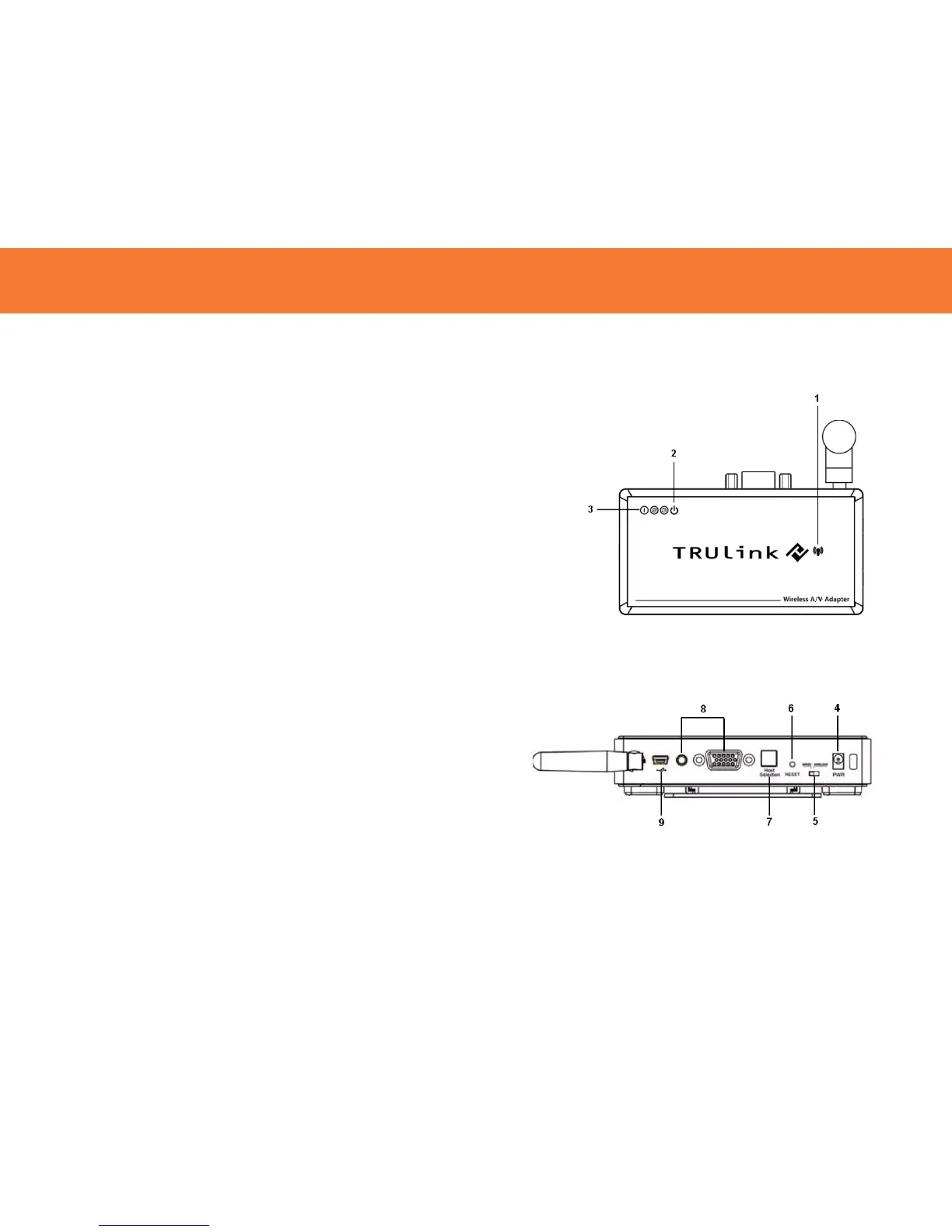

1. VGA: VGA Activity Indicator
• LED is solid when display cable is connected.
• LED is blinking when data is being transferred.
2. PWR: Power Indicator
• LED is solid when power is applied.
3. 1-2-3: Status Indicator
• Illuminated number/s indicates the wireless USB Host
Adapter that is currently synced with the Wireless VGA with
Integrated Audio Adapter.
4. PWR plug
• Power adapter input
5. Wireless/Wired switch
• Choose from wired or wireless mode by moving the switch.
6. Reset
• Association history can be erased by pressing and holding
this button for 10 seconds.
7. Host Selection:
• This button is used to select a different Wireless USB Host
Adapter
8. VGA/Audio Outputs
• HD15 and 3.5mm output connections for connecting to your
video and audio source
9. USB input
• In Wireless mode, this connector is used for cable
association.
• In Wired mode, this connector is used for wired operation of
the Wireless VGA with Inte
