Technical Data
(measured in accordance with EN 12864 under Truma test
conditions)
Gas type
Liquid gas (propane / butane)
Admission pressure
0.3 – 16 bar
Output pressure
30 mbar or 50 mbar, according to variant
Regulator capacity
1.5 kg/h
Regulator inlet
Male thread M20 x 1.5 (G.13)
Regulator outlet
Olive screw connection, 8 mm or 10 mm
Recommended tightening torque
3 – 5 Nm for nut M20 x 1.5 (G.13)
Horizontal triggering value
3.5 g ± 0.5 g
Conformity Declaration
The Truma MonoControl CS gas pressure regulation system
complies with the pressure-device directive 97/23/EC under
application of EN 12864/D and directive 2004/78/EC Annex VIII
“Safety Requirements for LPG-Operated Combustion Heating
Devices”.
Product Identification Number
CE-0085BQ0102
DG approval number: 3894
Right reserved to make technical changes!
Residual gas: Do not smoke, avoid open flames!
Installation must be conducted by a technician!
In order to ensure that the equipment operates correctly,
the gas pressure regulation system must be securely
screwed to a stable wall / ceiling (with 2 screws).
Always read the installation instructions prior to installation
and observe them!
Depending on the version, the MonoControl CS must be fitted
to a stable wall in a vertical position or fitted to the top of the
gas cylinder box in a horizontal position. The triggering ele-
ment (A) must always be in a vertical position.

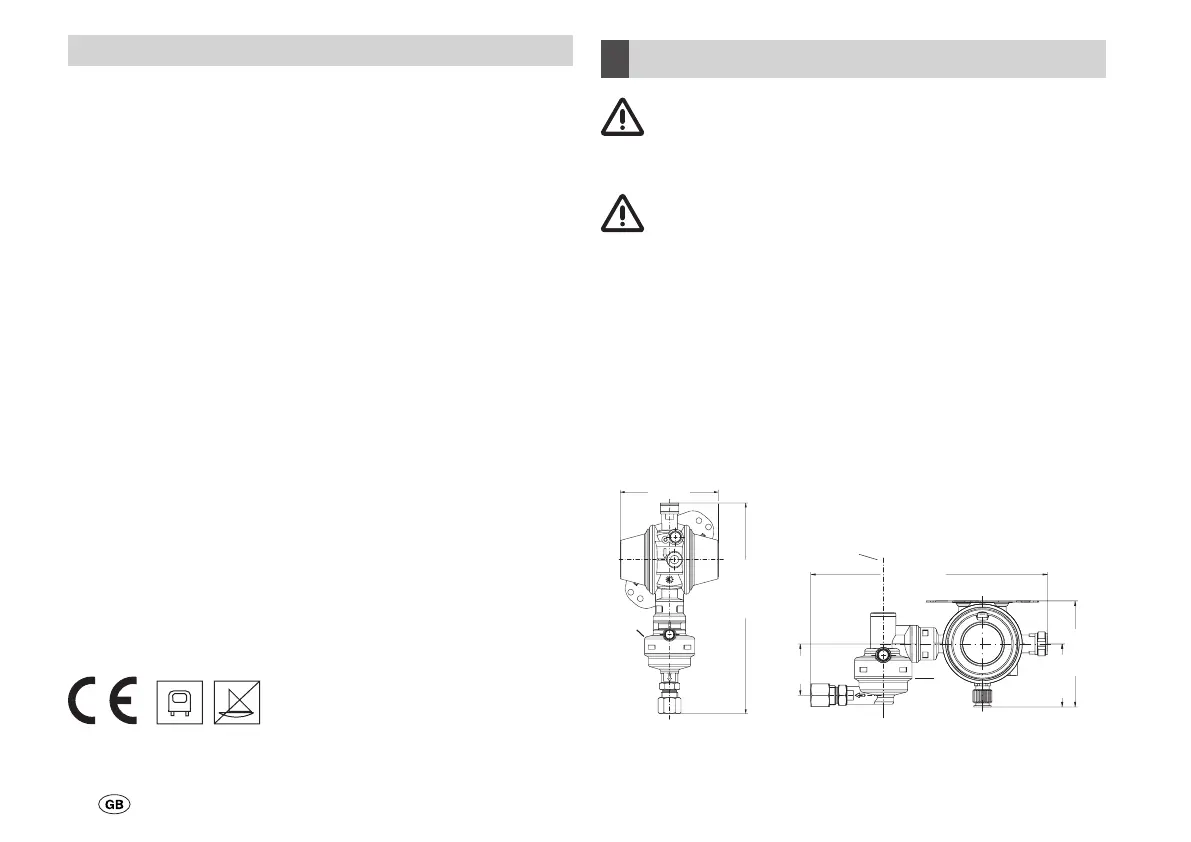

Installation dimensions
~ 95
~ 203
A
~ 89
~ 198
~ 53
43
A
