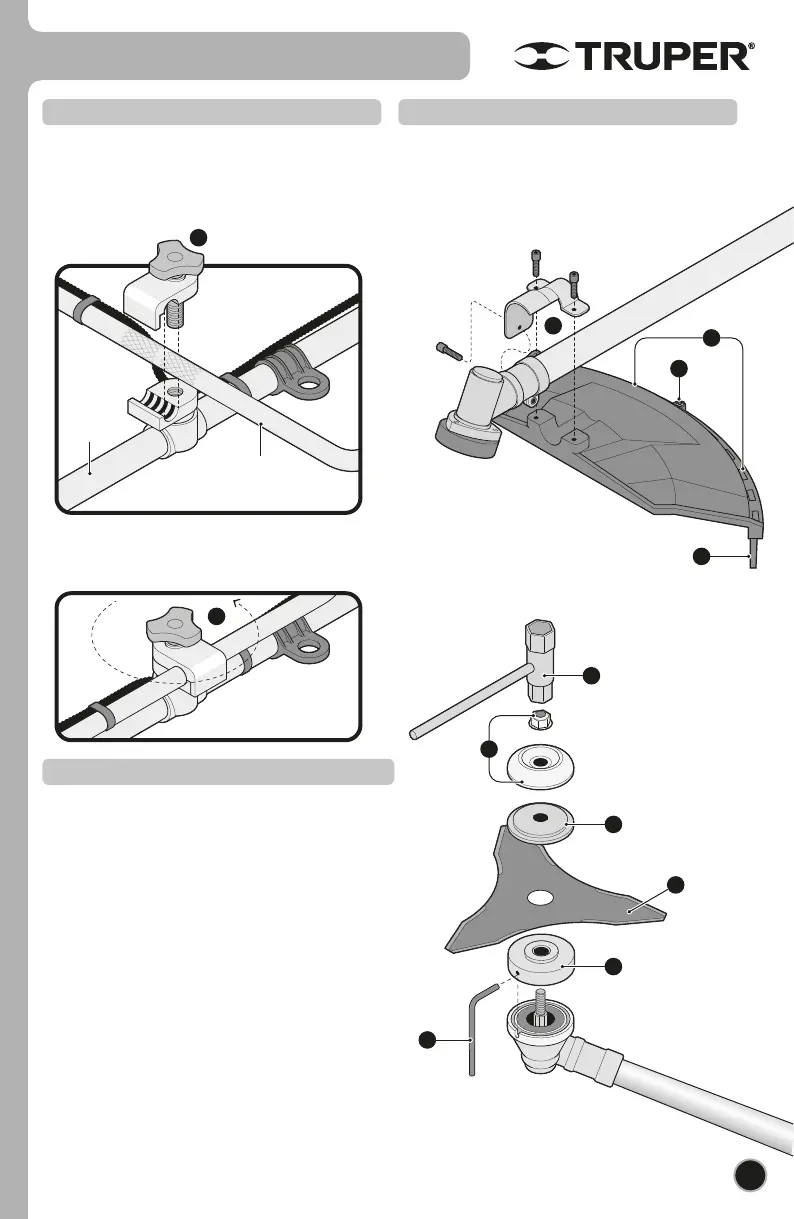

Straight Axis
a
Handle
7
Assembly
• Separate the hinge bracket from the straight axis frame
loosening the easy adjusting knob (a).
• Set the handle in the straight axis frame.
• Secure the handle in place and tighten the easy
adjusting knob firmly.
Handle
• Fasten the guard into the cutting head using the bracket
and the bolts included (A).
• If using the line spool, use the guard with the protection (B)
included.
• When using the blade, remove the screw in the rear of
the guard (C). Press both clips (D) and remove the
protection.
Guard
• Press the turn table onto the cutter head (1).
• Set the blade onto the pressed turn table making sure the turning
direction is the same as the sense labeled on the guard (2).
• Set the flange onto the blade (3).
• Set the cover and the lock nut (4).
• Insert the Allen key in the pressed turn table to block the axis (5)
and tighten the lock nut counterclockwise using the included
wrench (6).
• Use the guard with the protection removed. See the guard section.
Blade installation
D
A
B
C
b
• To rotate the handle, loosen the easy adjusting knob and
turn the handle (b) 90°. This is useful to store and
transport the brushcutter.
3
6
1
5
2
4
ENGLISH
