5. Install Screen Interlock!

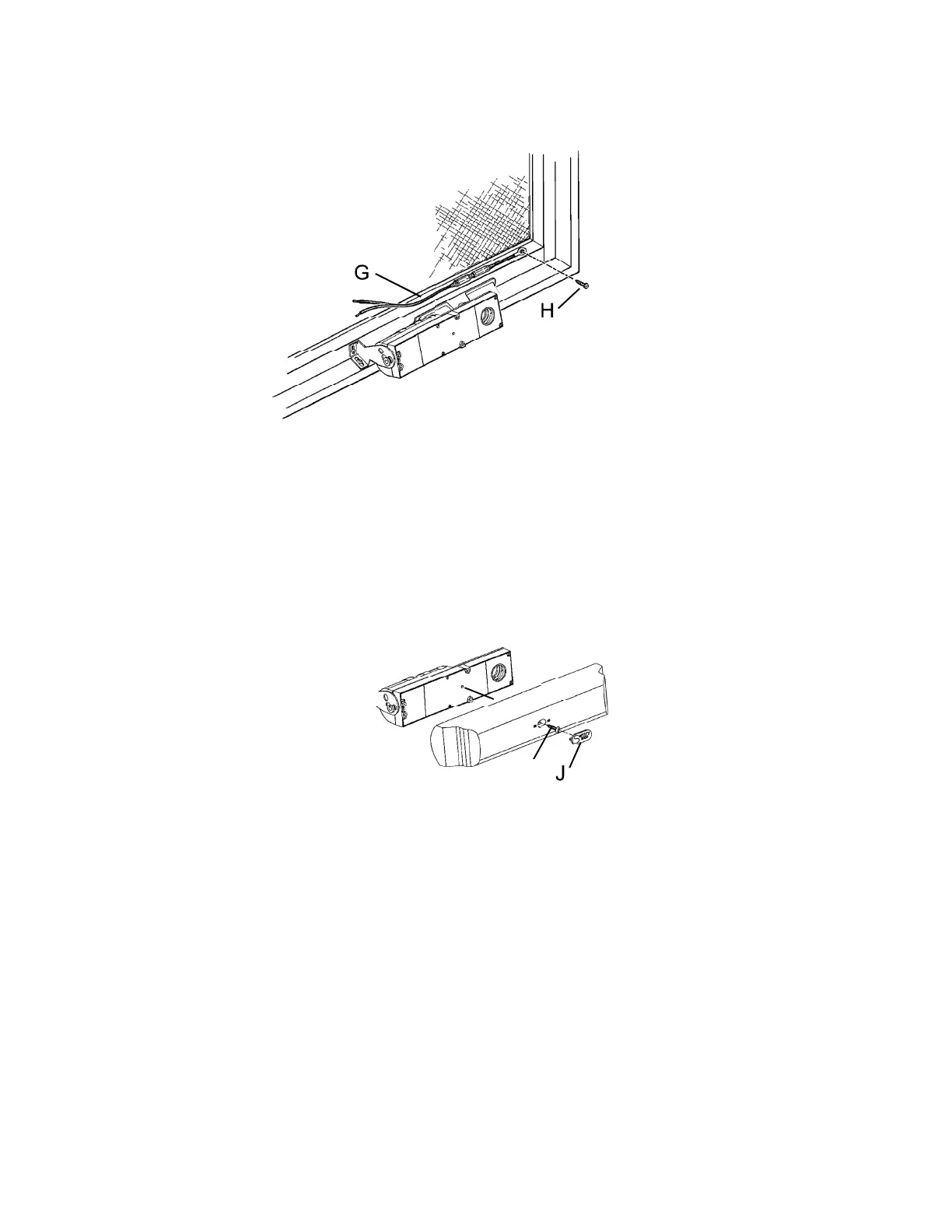

Install screen interlock (G) as shown using pan head screw (H)
supplied.
WARNING: The screen interlock must be correctly installed on windows or skylights less than 8 ft
from the floor. It is intended to prevent personal injury and/or window damage during operation.
On vents above 8 ft a jumper wire (included) is installed into the Grey terminals of block 10.
6. Secure Wires & Install Cover
Connect motor wires per wire diagram and secure with tape. Install the motor cover using the
6X3/8 PH screw (K) found under cover button (J).
*WARNING: Use of a longer screw will damage motor.
K*
To Next Page
