Manual of Mid-drive Conversion Motor——TSDZ2B
Document No.：TSE-PM-MM-TSDZ2B-A-00
Suzhou Tongsheng Electric Appliances Co., Ltd 5 / 10

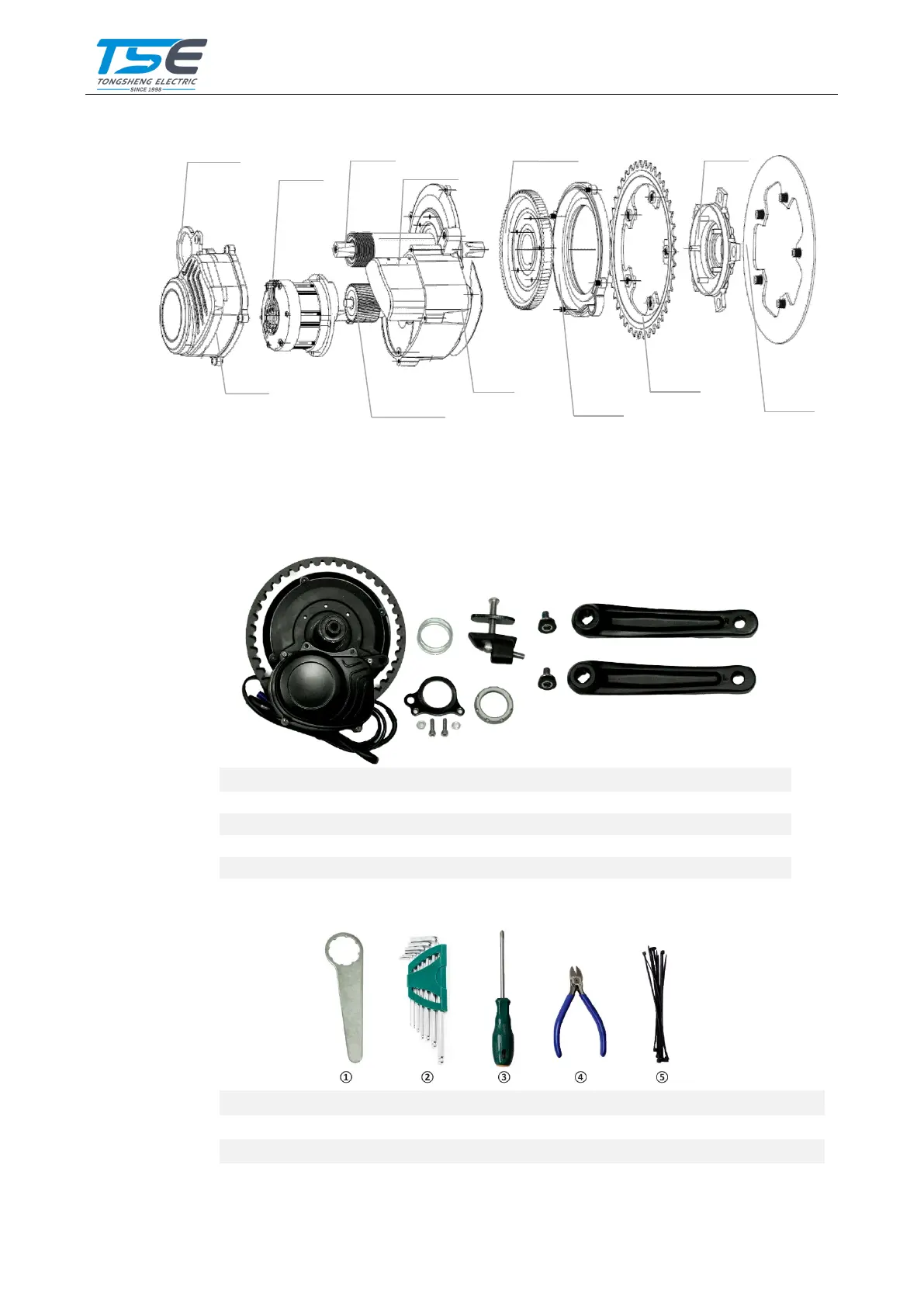

2.3 Mechanical composition
3 Motor Parts and Installation Tools
3.1 Motor Parts List
Item Description
Q.Ty Item Description Q.Ty
① TSDZ2B Motor Body ×1 ② Washer ×2
③
Fixing Plate and Screws
×1
④
Fixing Block
×1
⑤
Locking Nut
×1
⑥
Crank Screw
×2
⑦
Crank Arm
×2
3.2 Installation Tools List
Item Description Q.ty Remark Item Description Q.ty Remark
①
Locking Wrench ×1 Standard
②
Hexagonal Wrench Kit ×1
Self-Provide
③
Cross Screwdriver ×1
Self-Provide
④
Combination Pliers ×1
Self-Provide
⑤
Ribbons ×1
Self-Provide
Fixing Plate
Motor
Core
Controller
Main Body
Clutch Gear
Front Cover
Spider
Back Cover
Reduction Gear
Center shaft
Chain whell
Cover of
Chain wheel
①
⑤
⑥
③
⑦
②
④
