Manual of Mid-drive Conversion Motor——TSDZ2B
Document No.：TSE-PM-MM-TSDZ2B-A-00
Suzhou Tongsheng Electric Appliances Co., Ltd 8 / 10

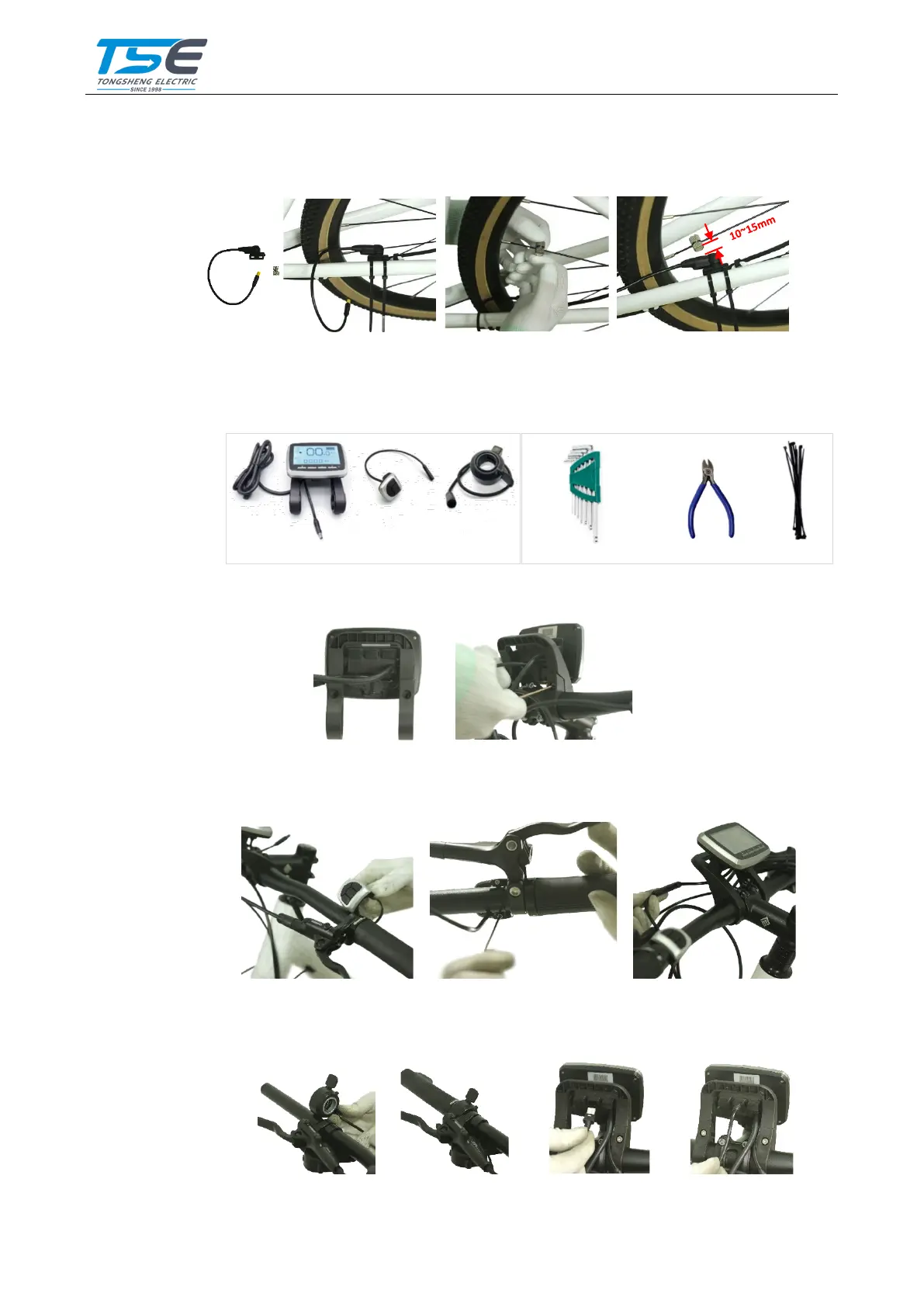

4.2.1 Speed Sensor Installation
Fix the speed sensor at the chain stay with ribbon. Then assemble the magnetic button on the
spoke of back wheel and align it with the triangle “△”on the sensor. Finally, adjust the distance
between the sensor and magnetic button to 10~15mm.
4.2.2 Display Press-button and Throttle Installation
1) Parts and Tools list
Standard Package of Parts And Tools Self-provided
Display Press-button Throttle Hexagonal Wrench Kit Combination Pliers Ribbons
2) Display Installation: Remove the two screws of the displays with M3 hexagonal wrench, then
fix the display on the middle of the handle and tighten the screws.
3) Press-button Installation: Remove the screw of the button and tie the button on the left
handle. Then tighten the screw completely. Finally, connect the button plug wire to the
display plug wire.
4) Throttle Installation: Loosen the screw on the throttle then fix the throttle on the right
handle by tightening the screw completely. Finally, connect the throttle wire to the middle
socket at the back of display.
