TSI Instruments AEROTRAK+ 7510 - Page 37

Communications 3–11
Tech Page—Analog Tab

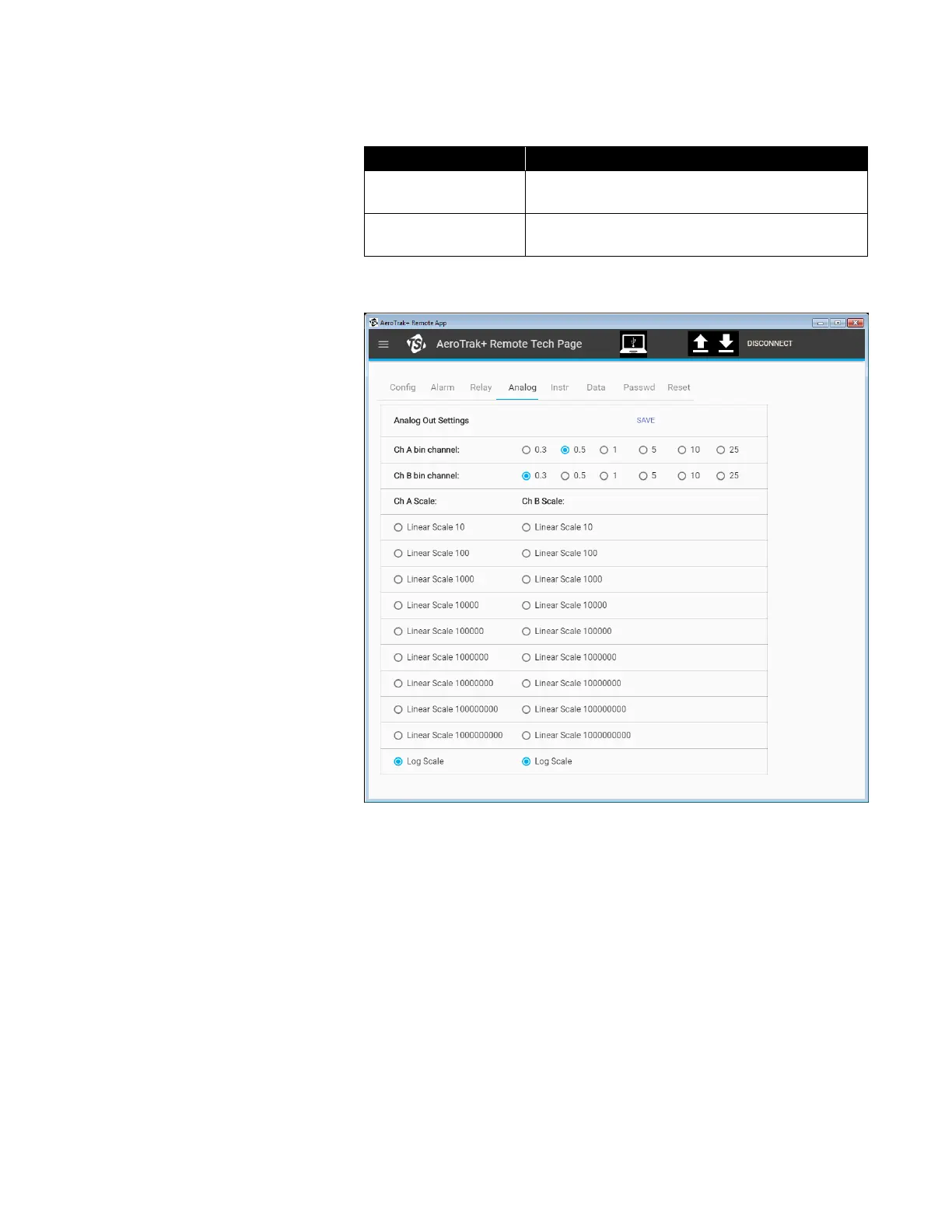

The analog tab allows for the configuration of the analog output for
models supporting this feature.
Label
Function
Ch A, Ch B
Select which size channels to output on analog out
channel A and B
Ch A Scale,
Ch B Scale
Choose the span scaling of channel A and
channel B.
Save must be pressed for the configurations to be saved to the instrument.
