>> Ultrasonic Flow meter User Manual
8

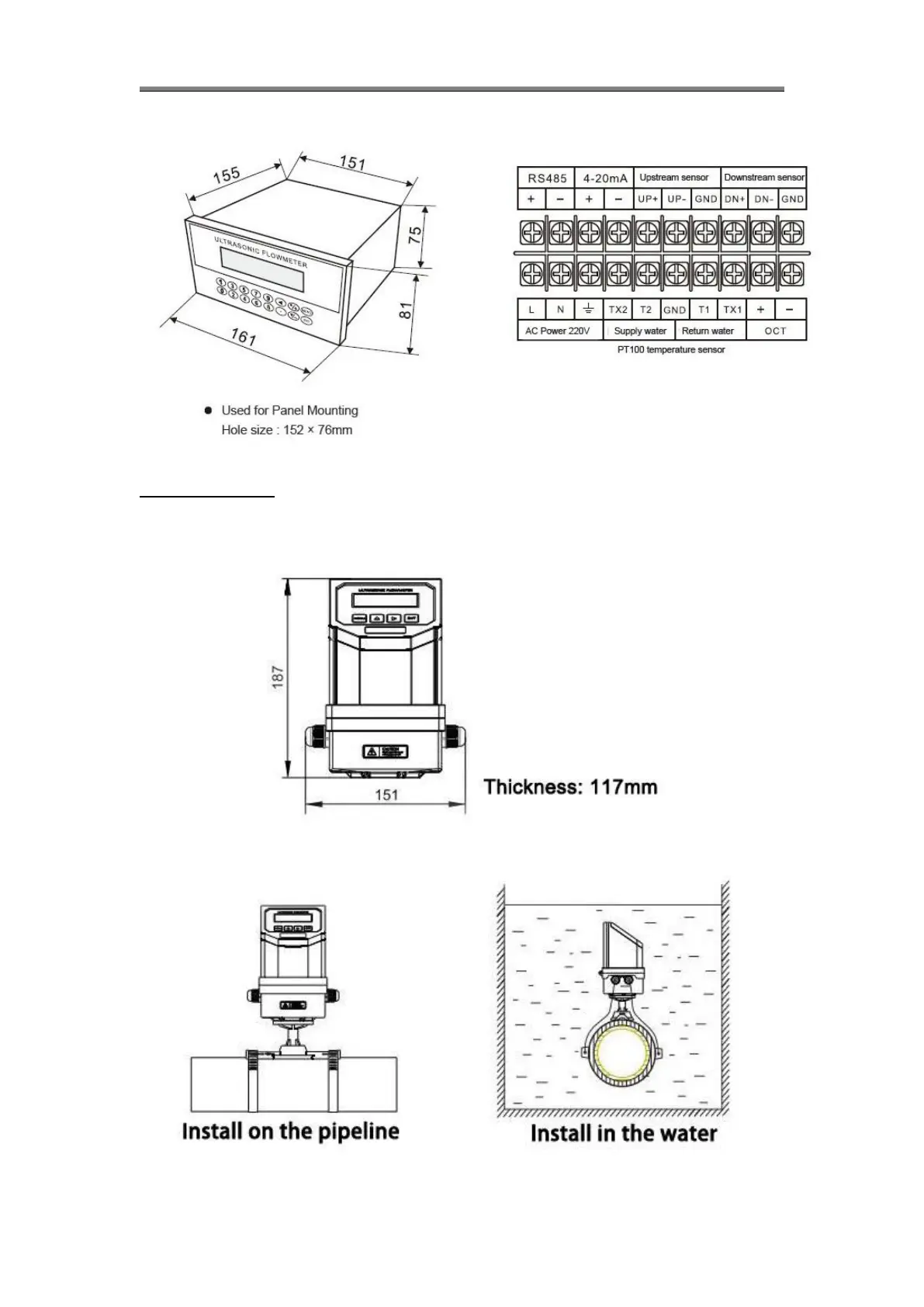

TUF-2000U Installation and Wiring Diagram
4.2 Fix mounting
TUF-2000F2 Installation and Wiring Diagram
The converter is generally installed on the pipeline, sometimes installed in the water.
