Contents
1 2
Chapter 1. Product Introduction
Chapter 2. Installation Guide
2.1
2.2
2.3
2.4
2.5
2.6
2.7
2.8
1.1
1.2
1.3
02
02
03
05
06
07
08
11
13
14
14

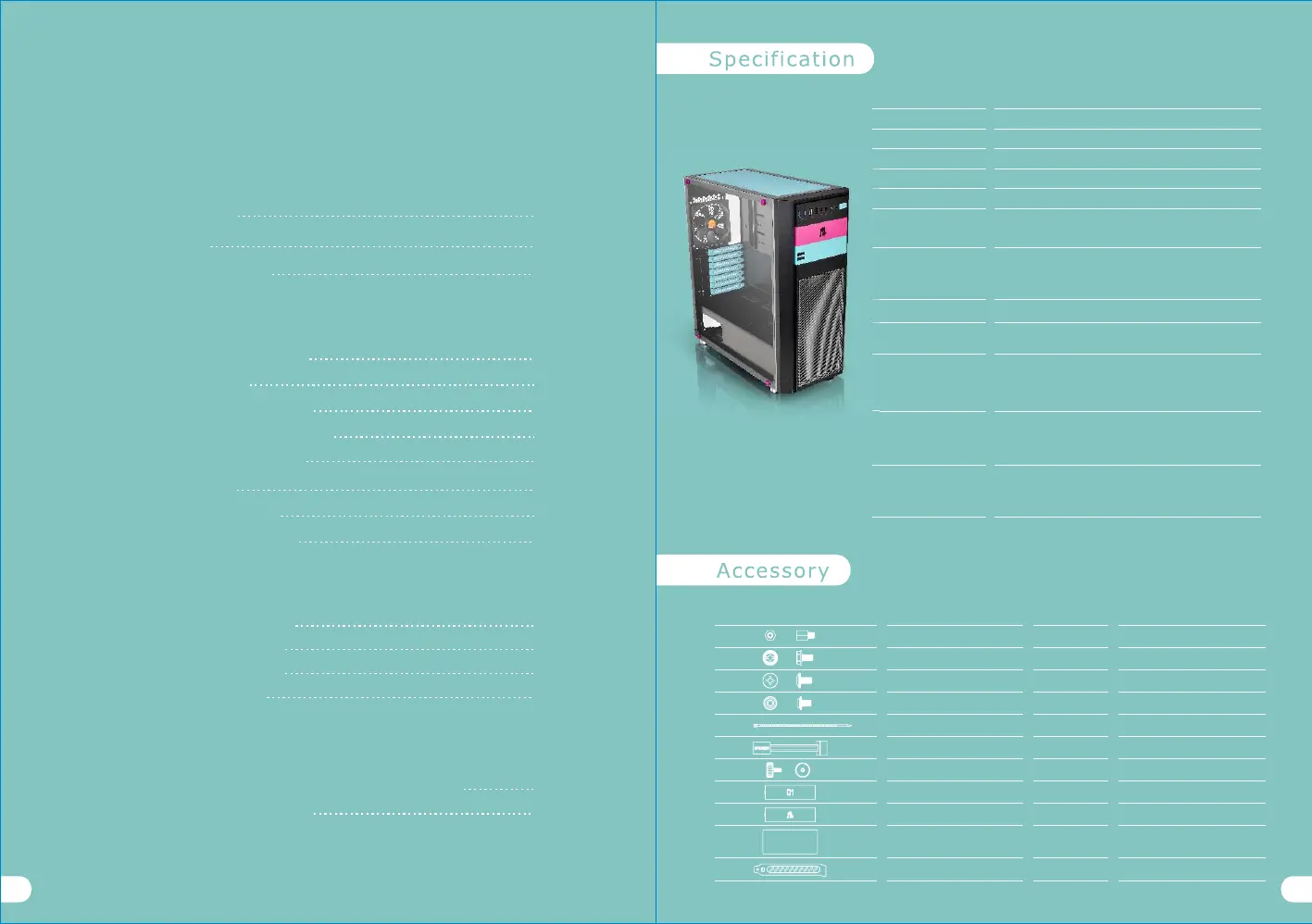

Specification
Accessory
Warning and Notice
Side Panel Disassembly
PSU Installation
Motherboard Installation
3.5" & 2.5" HDD Installation
Chapter 3. Leads Installation
Case LED Connection
USB 2.0 Connection
USB 3.0 Connection
Audio Connection
3.1
3.2
3.3
3.4
15
15
15
15
Chapter 4. Other
4.1
4.2
21
22
Thermaltake Power Supply Series (Optional)
Tt RGB Plus Ecosystem
*Picture for reference only
*Information in the user manual is subject to change without notice
PCI Slot Usage
Radiator Installation
Air Cooling Installation
Stand-off #6-32 x 6mm
3
Motherboard
Screw #6-32 x 6mm
6
PSU
Screw #6-32 x 5mm
10
HDD
Screw M3 x 5mm
30
2.5" HDD / Motherboard / ODD
CableTie
10
Cable Management
Buzzer
1
Motherboard Alarm
Figure
Parts Name
Q'ty
Used for
Versa H26 HATSUNE MIKU EDITION
Middle tower
SPCC
Front: 3 x 120mm
Top: 3 x 120mm, 2 x 140mm
Rear: 1 x 120mm
CPU cooler height limitation: 160mm
VGA length limitation: 310mm
PSU length limitation: 220mm
Side Panel
Full Window
Model
Case Type
Dimension(H*W*D)
493 x 220 x 464 mm (19.4 x 8.7 x 18.3 inch)
Material
Cooling System
Fan Support
Clearance
Drive Bays
- Accessible
- Hidden
Rear (exhaust) :
120 x 120 x 25 mm fan (1000rpm, 16dBA)
-
2 x 2.5“ or 3.5” ; 3 x 2.5”
7
Expansion Slots
6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX),
12” x 9.6” (ATX)
Motherboards
Front: 1 x 360mm
Top: 1 x 360mm, 1 x 280mm
Rear: 1 x 120mm
Radiator Support
5.25 Device Installation
Thumb Screw #6-32 x 5mm
4
For left side cover
For 5.25 Bay cover
For 5.25 Bay cover
For Top cover
1
1
1
ODD Cover
ODD Cover
Top Filter
Pci Slot Cover
7
For Case Rear Slot PCI Bracket
