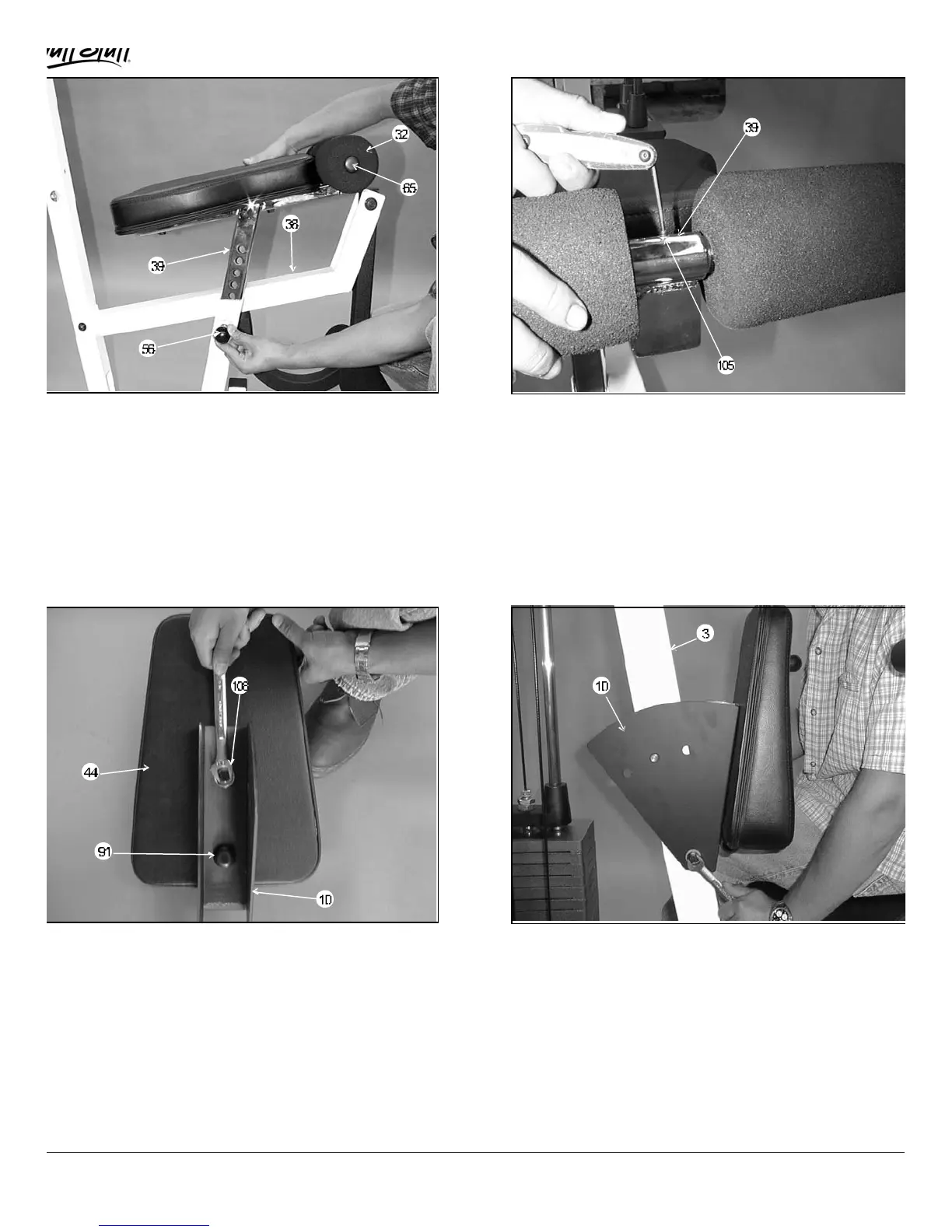

IG. 33 Insert the Bench Press Adj Seat Tube (#39) into
he receptacle on the Leg Extension Bench Frame (#38),as
hown above. Next, insert two Foam Foot Rolls 7 X 4 X 1
#32) and two Plastic Insert Caps 1” Rd. (#65) onto the tube-
nds of the Foot Roll Tube 1 X 16 (#100). Note: Pull the
ush-pull pin 1/2 (#56) to allow the Bench Press Adj Seat
ube (#39) to adjust up and down.
FIG. 34 On the Bench Press Adj Seat Tube (#39) there i
a threaded socket. Secure the Foot Roll Tube 1 X 16 (#100)
using one Set Screw 1/4-20 X 1/4 (#105). Use the supplied
Hex Key 1/8 (#69) tool for securing this Set Screw (#114).
IG. 35 Mount the Back Pad Adj Bracket (#10) to the
ench Press Back Pad (#44) and secure using two Hex Head
ap Screws 3/8-16 X 1 (#81), two Bumper Washers 3/8 (#108)
nd two Bumper Caps Black (#91). Refer to the Exploded View
n page 19 for further clarification of this assembly.
FIG. 36 Secure the Back Pad Bracket (#10) to the Front
Upright (#3) using one Hex Head Cap Screw 3/8-16 X 3 1/
(#76), four Flat Washers Nylon 3/8 (#6), two Flat Washers
SAE 3/8 (#90) and one Nylon Insert Jam Lock Nut 3/8-1
(#86). Refer to the Exploded View on page 19 for further
clarification of this assembly.
SL-IV Muscle IV Home Gym
10
