F

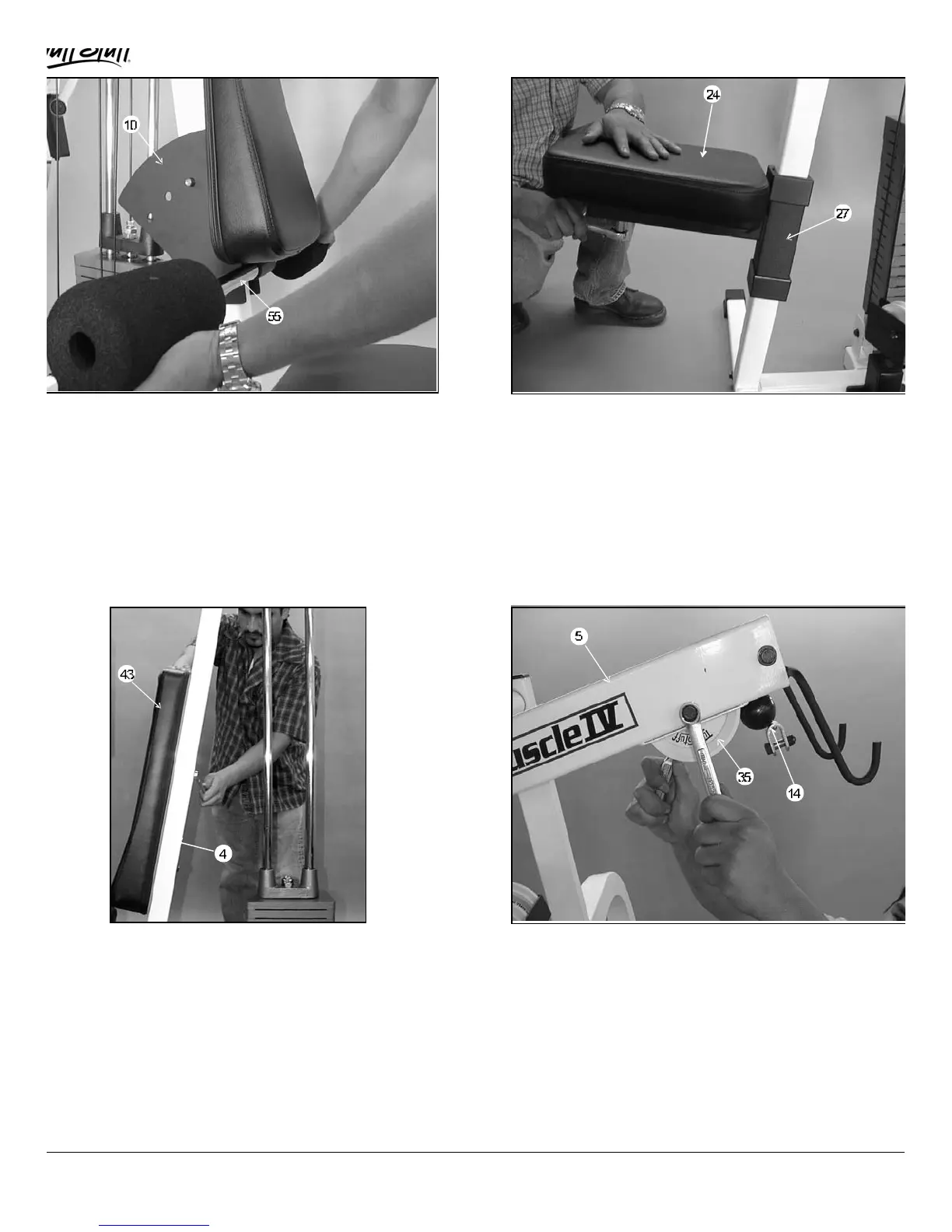

IG. 37 Next, slide the Foot Roll Tube 1 X 23 3/4 (#55)
t
hrough the receptacles on the Back Pad Adj Bracket (#10),
a
s shown above. Next, install the Foam Foot Rolls 7 X 4 X 1
(
#32) as described in Fig. 31 on page 9.
FIG. 38 Attach the Pec Dec Seat Pad (#24) to the Pec De
c
Seat Adj Tube (#27) and secure it using two Hex Head Cap
Screws 3/8-16 X 2 3/4 (#77) and two Flat Washers SAE 3/8
(#90).
FIG. 39 Attach the Pec Dec Back Pad (#43) to
the Rear Upright (#4) and secure it using two Hex
Head Cap Screws 3/8-16 X 2 3/4 (#77) and two
Flat Washers SAE 3/8 (#90).
FIG. 40 Route the Lat Cable (#14) through the Top Pulle
y
Assembly (#5). Then insert one Nylon Pulley 4 1/2 Rd. (#35)
and secure it using one Hex Head Screw 3/8-16 X 2 1/2 (#78),
two Flat Washers SAE 3/8 (#90) and one Nylon Insert Jam
Lock Nut 3/8-16 (#86). Refer to Fig. 1 on page 17 for further
detailed illustration of this cable routing.
