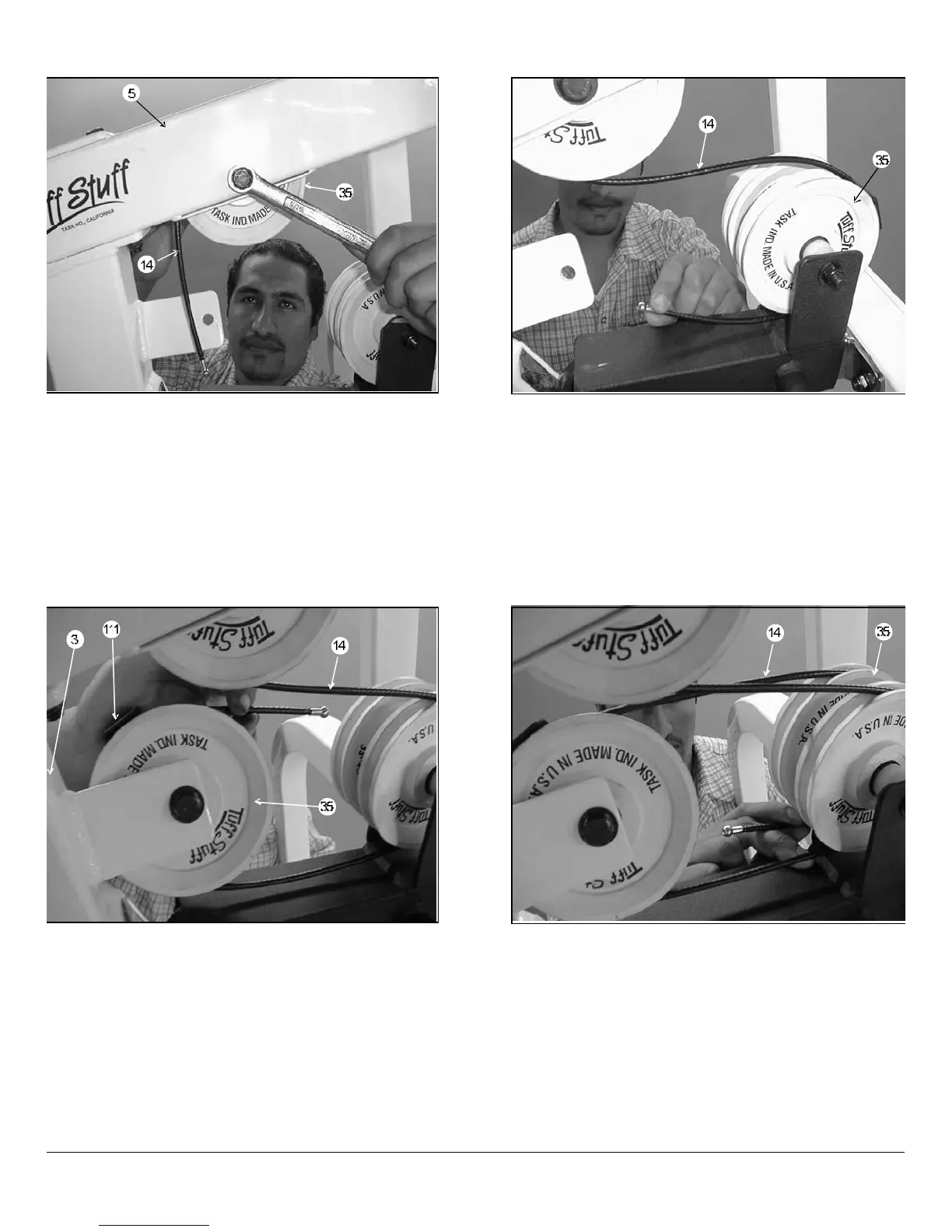

IG. 41 Insert the Lat Cable (#14) and one Nylon Pulley 4
/2 Rd (#35) into the Top Pulley Assembly (#5) and secure it
sing one Hex Head Cap Screw 3/8-16 X 2 1/2 (#78), two Flat
ashers SAE 3/8 (#90) and one Nylon Insert Jam Lock Nut
/8-16 (#86). Refer to Fig. 1 on page 17 and Fig. B on page
8 for further detailed illustration of this cable routing.
FIG. 42 Route the Lat Cable (#14) over, then under the
Nylon Pulley 4 1/2 Rd. (#35), as illustrated above. Refer to Fig.
1 on page 17 and Fig. B on page 18 for further detailed
illustration of this cable routing.
IG. 43 Next, attach a Nylon Pulley 4 1/2 Rd. (#35) to the
ulley bracket on the Front Upright (#3) and secure it using
ne Hex Head Cap Screw 3/8-16 X 1 3/4 (#79), two Flat
ashers SAE 3/8 (#90), one Nylon Insert Jam Lock Nut 3/8-16
#86) and one Cable Retainer Bracket (#111). Next, route the
at Cable (#14) under, then over the Nylon Pulley 4 1/2 Rd.
#35), as shown above. Refer to Fig. 1 on page 17 and Fig. B
n page 18 for further detailed illustration of this cable routing.
FIG. 44 Continue to route the Lat Cable (#14) over the
Nylon Pulley 4 1/2 Rd. (#35), then under, as shown above.
Refer to Fig. 1 on page 17 and Fig. B on page 18 for further
detailed illustration of this cable routing.
Owners’ Manual: Assembly Instruction
SL-IV Muscle IV Home Gym
12
