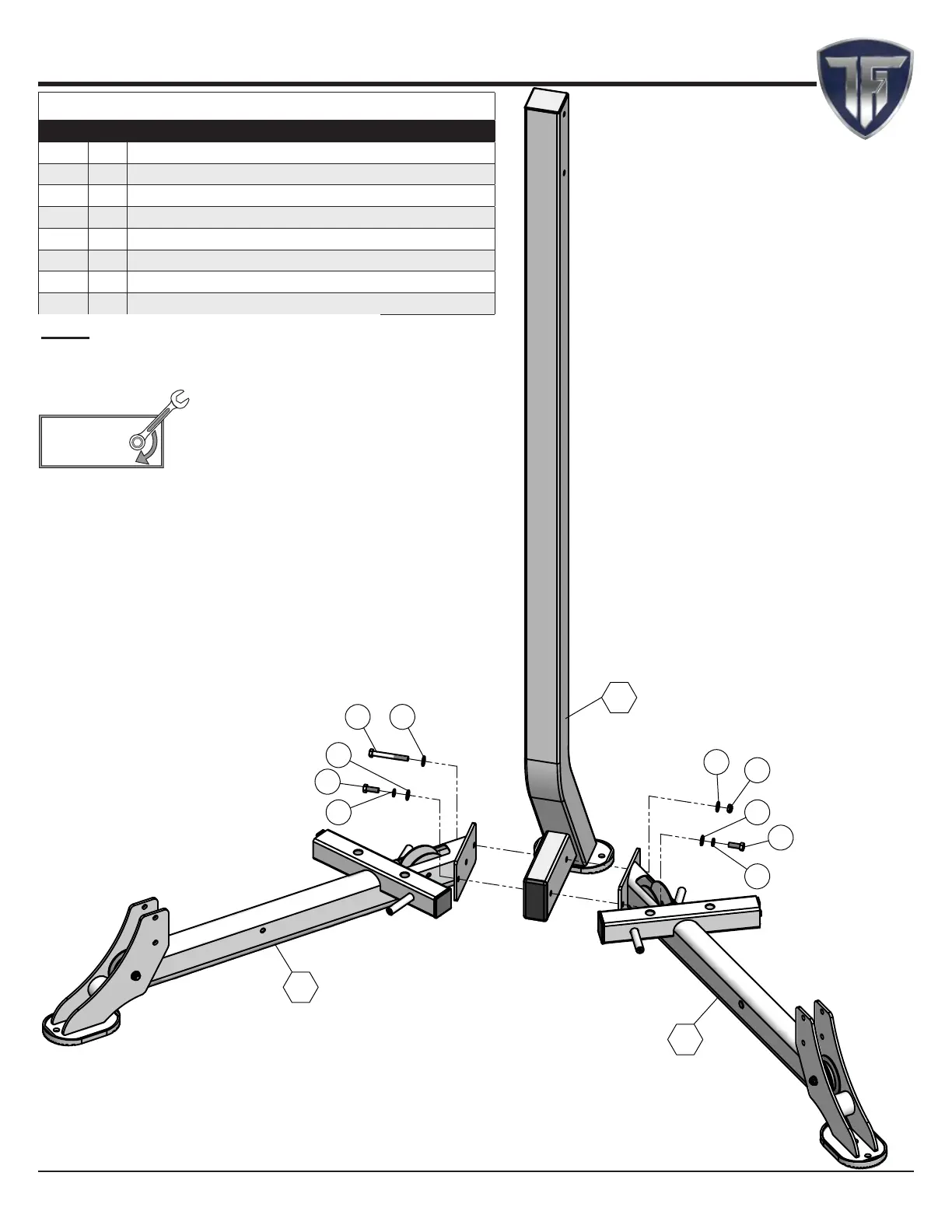

Step 2
Step 2 Assembly List
Item Qty. Description
29 2 HEX HEAD CAP SCREW GR-5 Z/P 3/8-16 X 1
34 1 HEX HEAD CAP SCREW GR-5 Z/P 3/8-16 X 3
39 2 SPLIT LOCK WASHER Z/P 3/8"
43 4 FLAT WASHER SAE Z/P 3/8"
44 1 NYLON INSERT THIN PATTERN LOCK NUT Z/P 3/8-16
*1 1 REAR UPRIGHT ASSEMBLY
*2 1 BASE FRAME, LEFT SIDE ASSEMBLY
*3 1 BASE FRAME, RIGHT SIDE ASSEMBLY
Note:
It is strongly recommended that two
people participate in this assembly step.
Loosely Tighten
70%
Loosely tighten all hardware in this step.
DO NOT Fully Tighten. Some component(s)
may need pre-assembly and or alignment
during the assembly process.
