TuffStuff CPL-400 - Page 13

23
29
29
*6
*8
29
29
23
*9
29
27
29
*7
2927
27
29

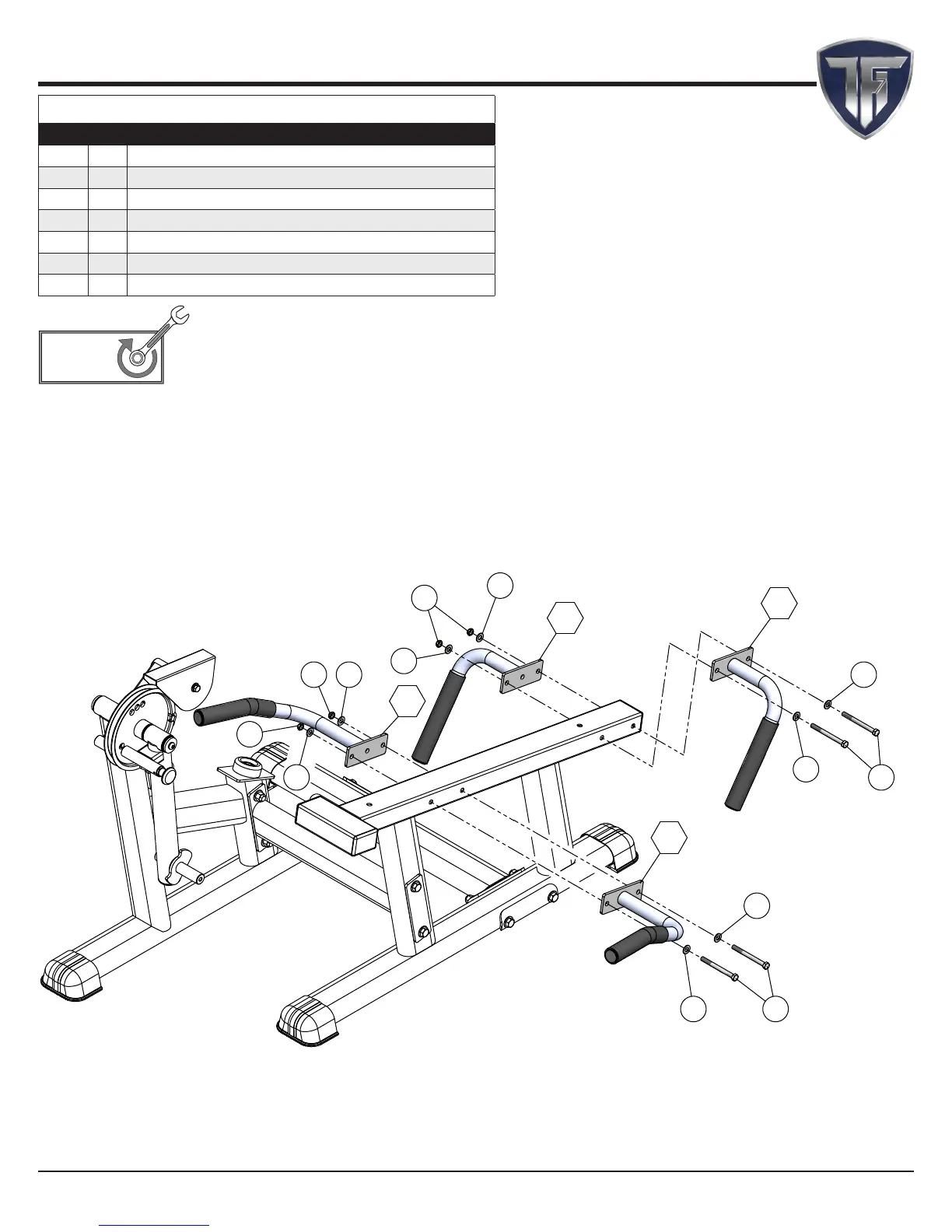

Step 3
Step 3 Assembly List
Item Qty. Description
23 4 HEX HEAD CAP SCREW GR-5 Z/P 3/8-16 X 4
27 4 NYLON INSERT JAM LOCK NUT Z/P 3/8-16
29 8 FLAT WASHER SAE Z/P 3/8"
*6 1 LEFT SIDE UPPER HANDLE ASSEMBLY
*7 1 RIGHT SIDE UPPER HANDLE ASSEMBLY
*8 1 LEFT SIDE LOWER HANDLE ASSEMBLY
*9 1 RIGHT SIDE LOWER HANDLE ASSEMBLY
100%
Fully Tighten
Wrench tighten all hardware in this step.
13CPL-400 Plate Load Leg Extension/Prone Leg Curl Bench
