TuffStuff CPL-400 - Assembly Steps

11
30
25
30
10
30
26
30
28
30
28
30
11
30
25
30
18
*2
3
30
28
30
30
28
30

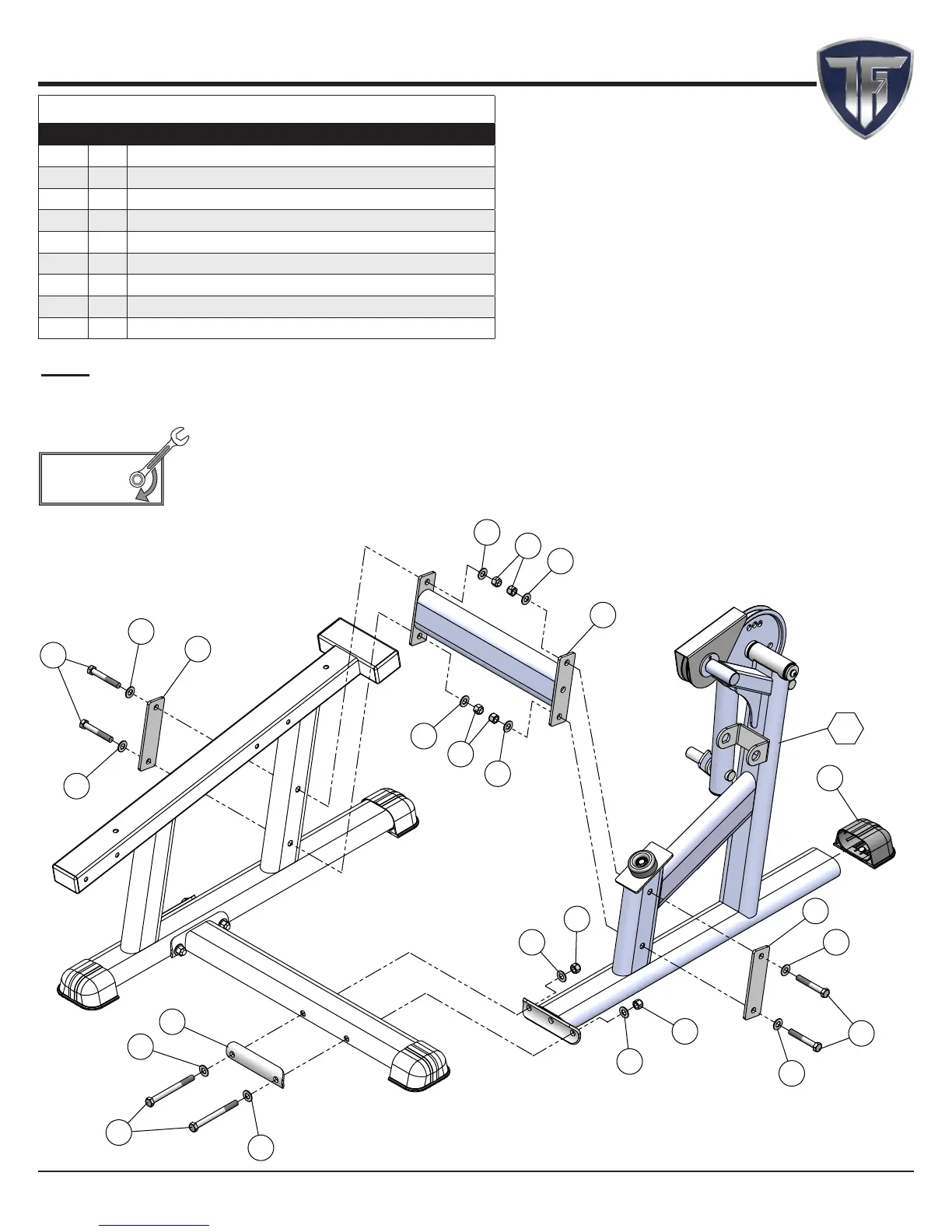

Step 2
Note:
It is strongly recommended that two
people participate in this assembly step.
Loosely Tighten
70%
Loosely tighten all hardware in this step.
DO NOT Fully Tighten. Some component(s)
may need pre-assembly and or alignment
during the assembly process.
Step 2 Assembly List
Item Qty. Description
3 1 TOP CROSS BRACE
10 1 REINFORCEMENT PLATE 1/4 X 2 X 7 (BEND)
11 2 REINFORCEMENT PLATE 1/4 X 2 X 7
18 1 PLASTIC HORIZONTAL ELLIPTICAL SHOE W/LOCK
25 4 HEX HEAD CAP SCREW GR-5 Z/P 1/2-13 X 3 1/4
26 2 HEX HEAD CAP SCREW GR-5 Z/P 1/2-13 X 5 1/4
28 6 NYLON INSERT LOCK NUT Z/P 1/2-13
30 12 FLAT WASHER SAE Z/P 1/2"
*2 1 SIDE FRAME ASSEMBLY
12 CPL-400 Plate Load Leg Extension/Prone Leg Curl Bench
