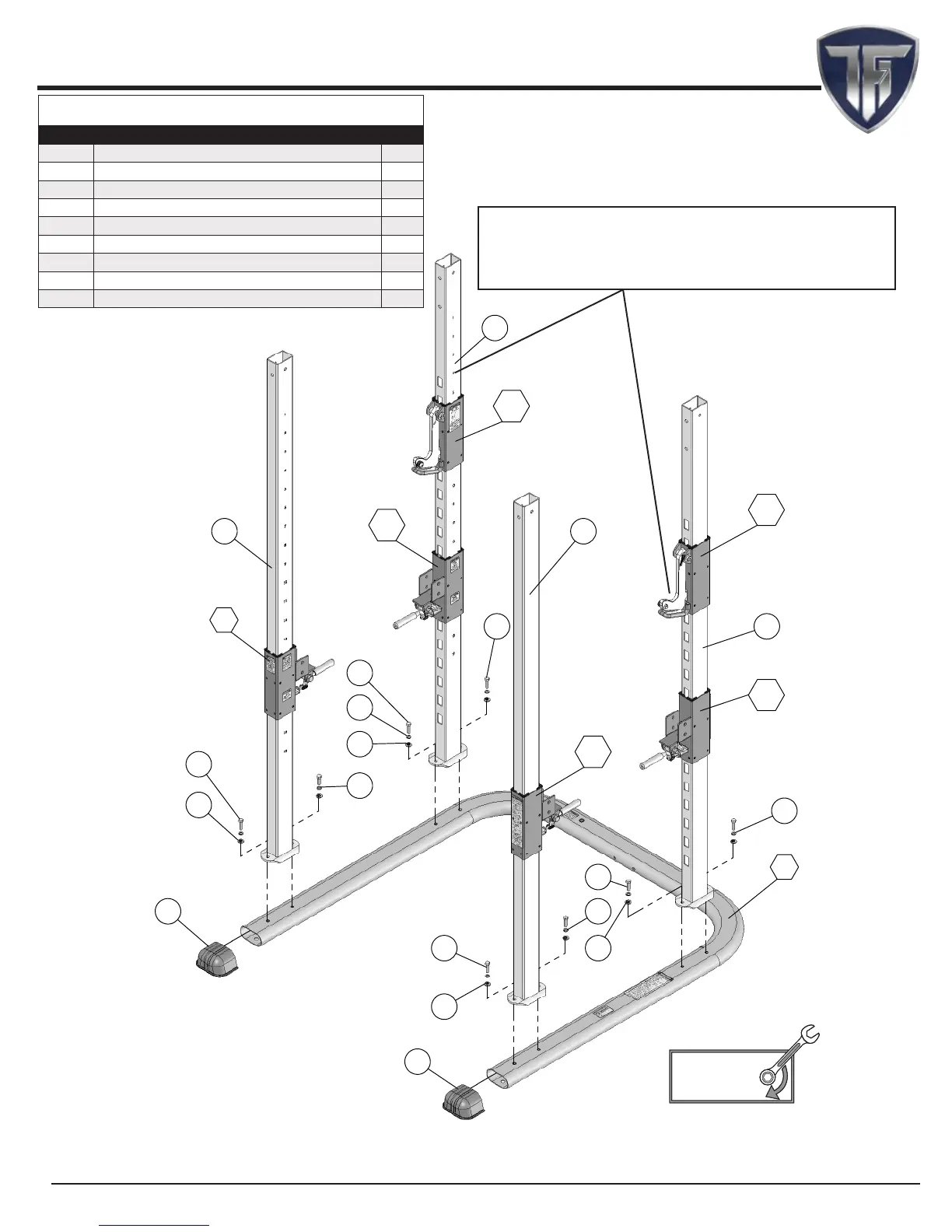

Step 2 Assembly List
Item # Description Qty.
*1 BOTTOM FRAME 1
2 REAR UPRIGHT RT 1
3 REAR UPRIGHT LT 1
4 FRONT UPRIGHT RT 1
5 FRONT UPRIGHT LT 1
12 PLASTIC HORIZONTAL ELLIPTICAL SHOE 4
14 HEX HEAD CAP SCREW GR-5 Z/P 3/8-16 X 1 8
20 SPLIT LOCK WASHER Z/P 3/8” 8
21 FLAT WASHER SAE Z/P 3/8” 8
Step 2
13
NOTE:
1. PLASTIC KNOBS ON BAR HOLDERS AND
REFERENCE NUMBERS ON UPRIGHTS
MUST BE FACING INSIDE.
Loosely Tighten
70%
Loosely Tighten
70%
Loosely tighten all hardware in this step.
DO NOT Fully Tighten. Some component(s)
may need pre-assembly and or alignment
during the assembly process.
