TuffStuff CPR-265 - Step 3

CPR-265 Power Cagewww.tu stu tness.com
ŗŜ
Řŗ
Řŗ
ŗŜ Řŗ ŘŘ
Řŗ
ŗř
ŘŖ
Řŗ
ŘŘ
Řŗ
ŗř
ŘŖ
ŘŘ
Řŗ
ŘŘ
Řŗ
Řŗ
ŘŖ
ŗř
Řŗ
ŗŜ
ŗř
ŘŖ
Řŗ
Șŝ
ȘŞ
Řŗ
ŗŜ

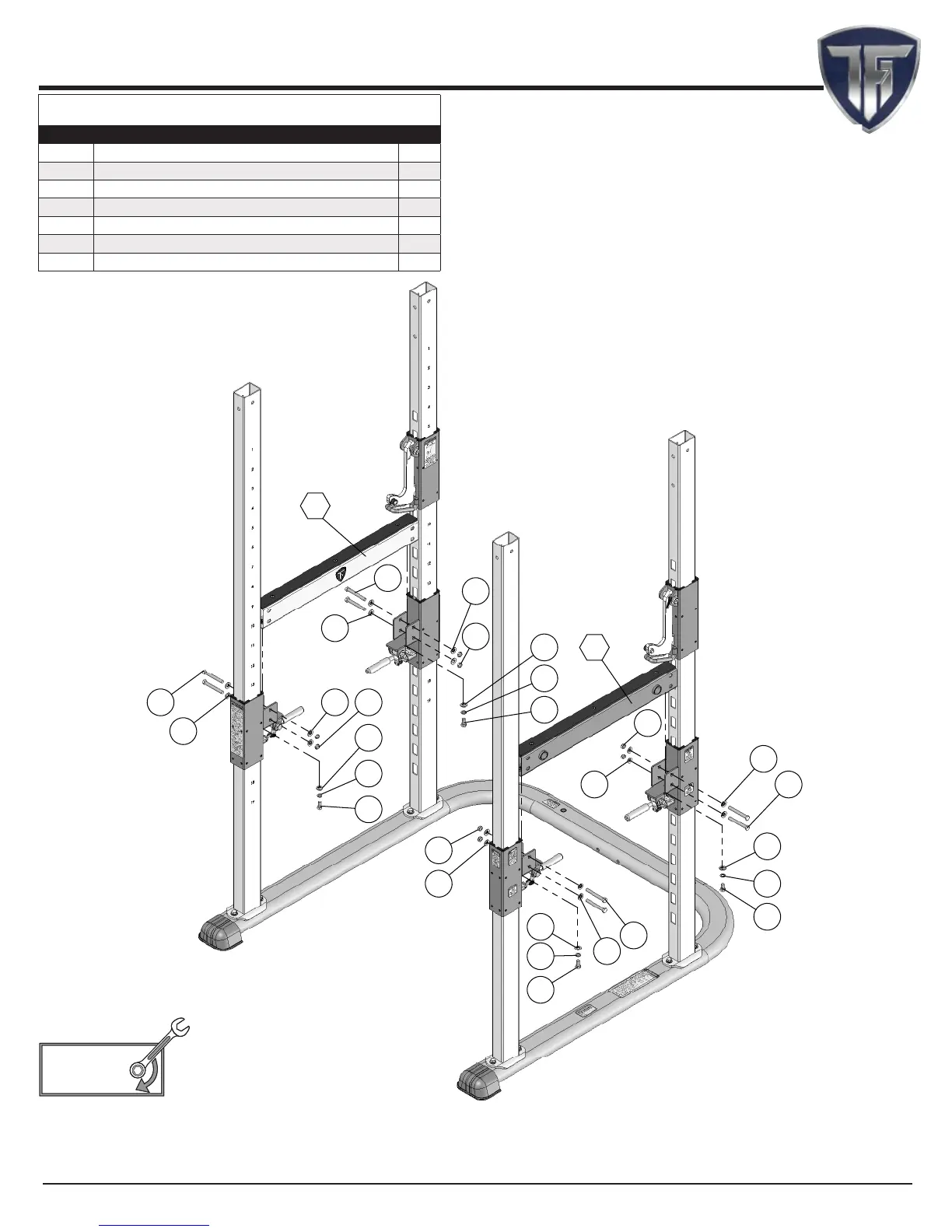

Step 3
Step 3 Assembly List
Item # Description Qty.
*7 CARRIAGE CONNECTOR TUBE 1
*8 CARRIAGE CONNECTOR TUBE W/HOLES 1
13 HEX HEAD CAP SCREW GR-5 Z/P 3/8-16 X 3/4 4
16 HEX HEAD CAP SCREW GR-5 Z/P 3/8-16 X 3 8
20 SPLIT LOCK WASHER B-Z/P 3/8” 4
21 FLAT WASHER SAE Z/P 3/8” 20
22 NYLON INSERT JAM LOCK NUT Z/P 3/8-16 8
14
Loosely Tighten
70%
Loosely Tighten
70%
Loosely tighten all hardware in this step.
DO NOT Fully Tighten. Some component(s)
may need pre-assembly and or alignment
during the assembly process.
