TuffStuff CSM-600 - Page 17

*20
12
12
24
*18
24
*14
13
16

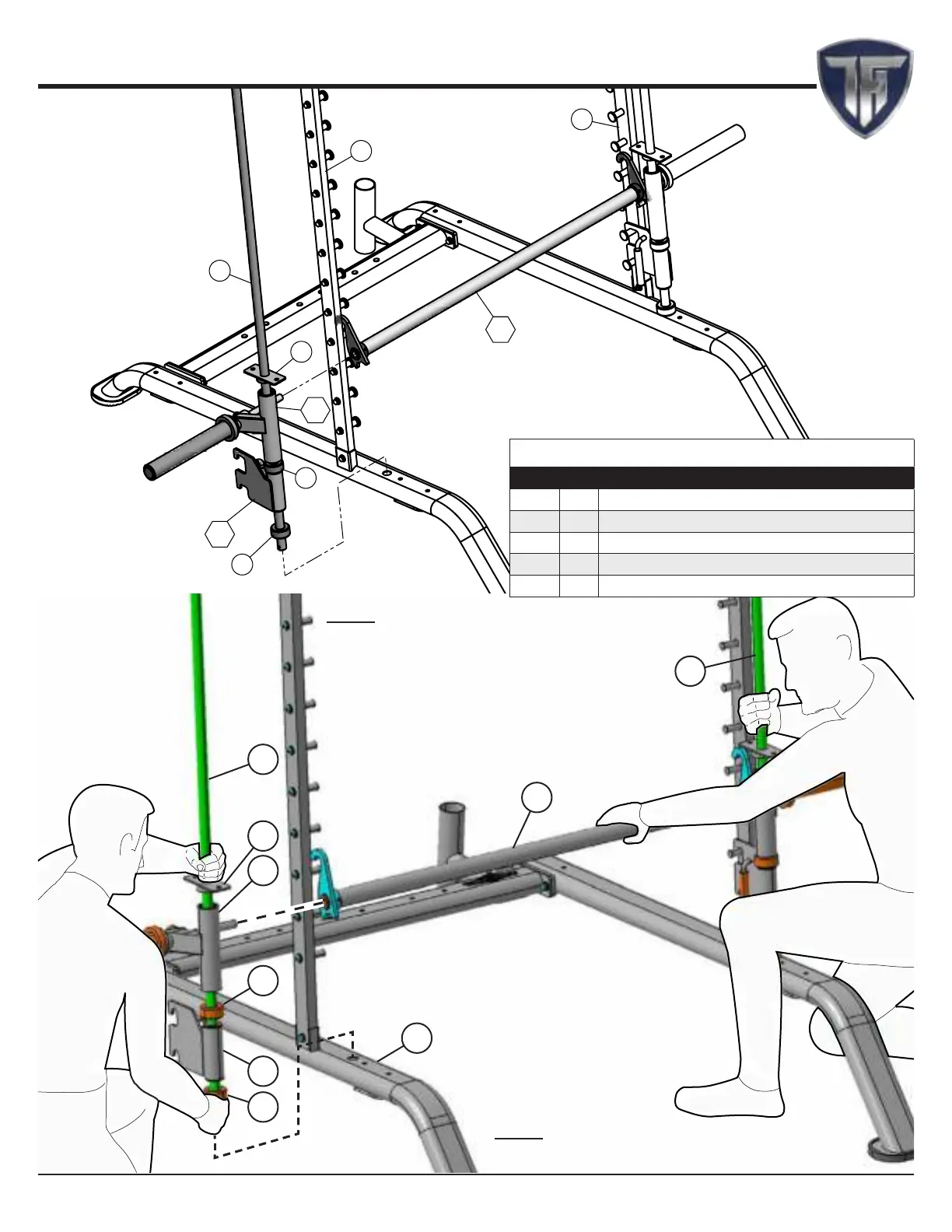

Step 4
Step 4 Assembly List
Item Qty. Description
13 1 SHAFT RETAINER PLATE
*14 1 PRESS BAR HOUSING LT ASSEMBLY
16 1 LINEAR SHAFT 1 X 69 11/16
*18 1 SAFETY STOPPER BRACKET LT ASSEMBLY
24 2 RUBBER DONUT 1 X 2 1/2
20
16
16
13
14
24
18
24
1
Note:
Some parts have been removed for Clarity.
Note:
It is strongly recommended that two
people participate in this assembly step.
17CSM-600 Basic Smith Machine/Half Cage Combo w/Safety Stoppers
