TuffStuff CSM-600 - Page 18

5
*8
*9
*10
*11
6
Step 5

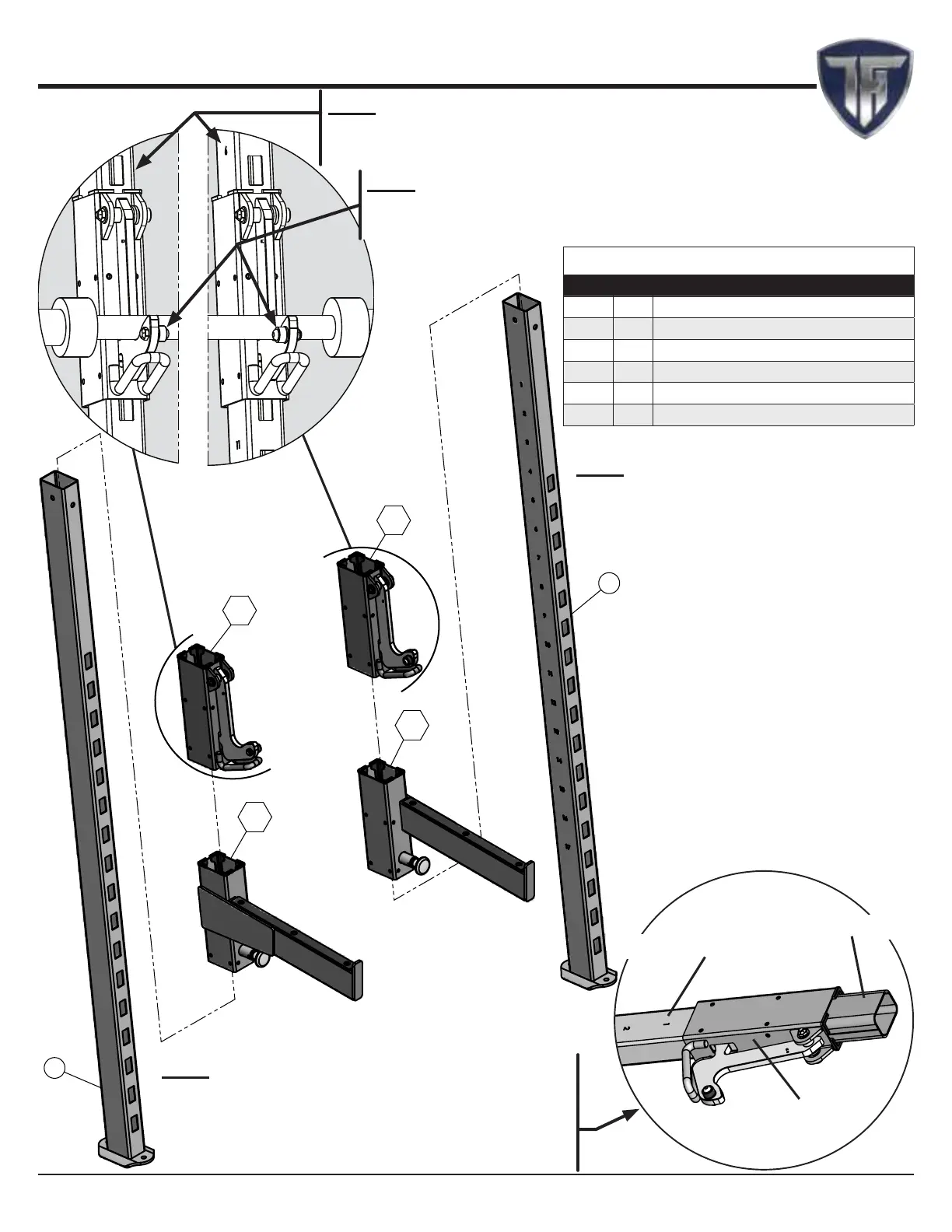

Step 5 Assembly List
Item Qty. Description
5 1 SELECTOR POST LT
6 1 SELECTOR POST RT
*8 1 BAR HOLDER LT ASSEMBLY
*9 1 BAR HOLDER RT ASSEMBLY
*10 1 SAFETY STOPPER LT ASSEMBLY
*11 1 SAFETY STOPPER RT ASSEMBLY
Note:
Position reference numbers facing
toward the inside of the unit.
Note:
Do not remove cardboard from inside of the Bar
Holders as it is used to hold the Plastic Glides in
place. Slide the Bar Holders over the Selector
Posts and the cardboard will slide out as shown.
CARDBOARD
SELECTOR POST
BAR HOLDER
Note:
Nylon Knobs facing toward
the inside of the unit.
Note:
It is strongly recommended that two
people participate in this assembly step.
