1
35
39
35
35
27
27
35
*3
35
29
12
26
27
35
5
35
39
27
35
35
39
35
*4
35
39
35
35
30
35
39
39
35
6
35
26
29
35
35
39
30
12
2
39

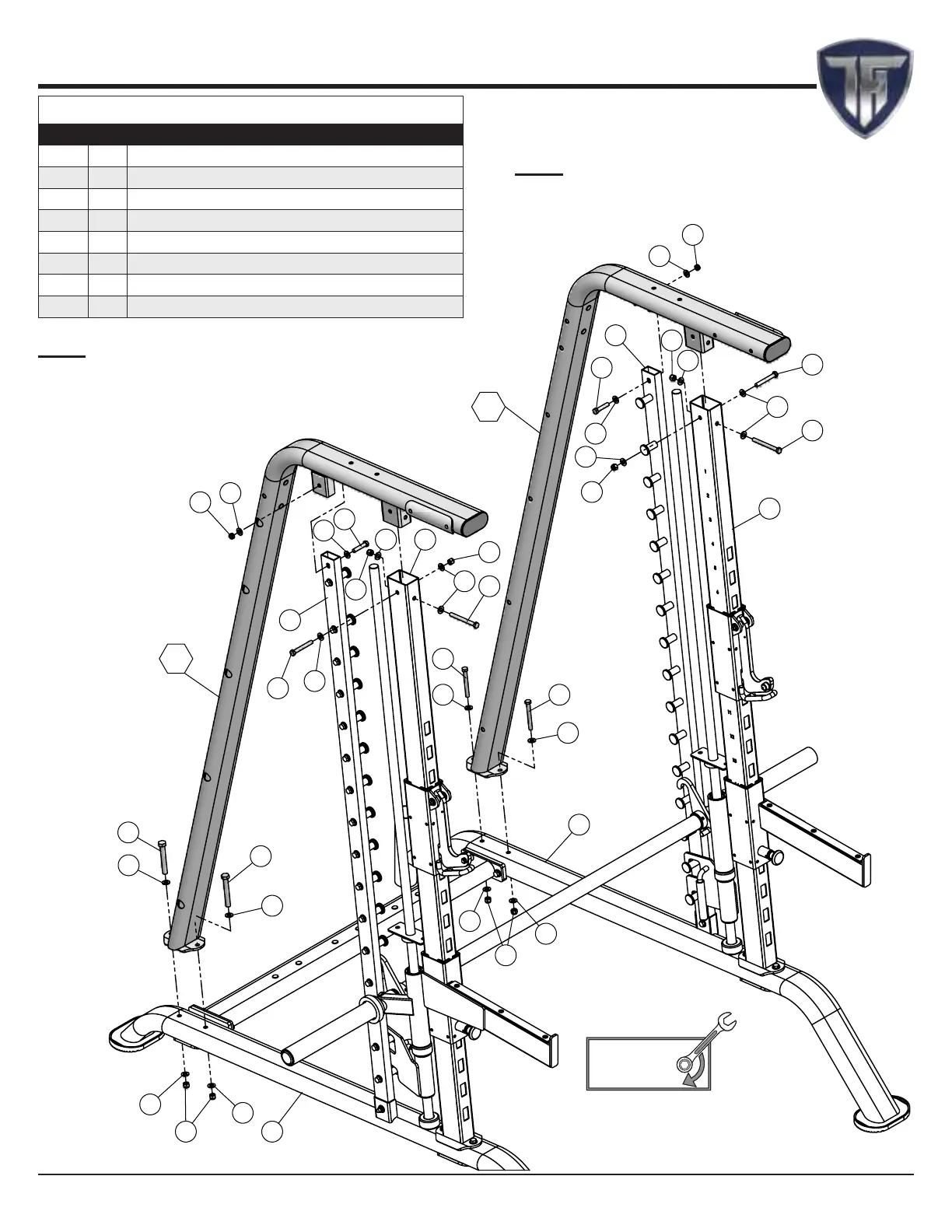

Step 7
Step 7 Assembly List
Item Qty. Description
*3 1 REAR SIDE SUPPORT LT ASSEMBLY
*4 1 REAR SIDE SUPPORT RT ASSEMBLY
26 2 HEX HEAD CAP SCREW GR-5 Z/P 3/8-16 X 3 1/2
27 4 HEX HEAD CAP SCREW GR-5 Z/P 3/8-16 X 3
29 2 HEX HEAD CAP SCREW GR-5 Z/P 3/8-16 X 2 1/2
30 2 HEX HEAD CAP SCREW GR-5 Z/P 3/8-16 X 1 3/4
35 20 FLAT WASHER SAE Z/P 3/8”
39 10 NYLON INSERT JAM LOCK NUT Z/P 3/8-16
Note:
Some parts have been removed for Clarity.
Note:
It is strongly recommended that two
people participate in this assembly step.
Loosely Tighten
70%
Loosely Tighten
70%
Loosely tighten all hardware in this step.
DO NOT Fully Tighten. Some component(s)
may need pre-assembly and or alignment
during the assembly process.
20 CSM-600 Basic Smith Machine/Half Cage Combo w/Safety Stoppers
