TuffStuff CSM-600 - Page 21

28
35
13
3
35
39
35
16
28
35
13
16
4
35
39
35

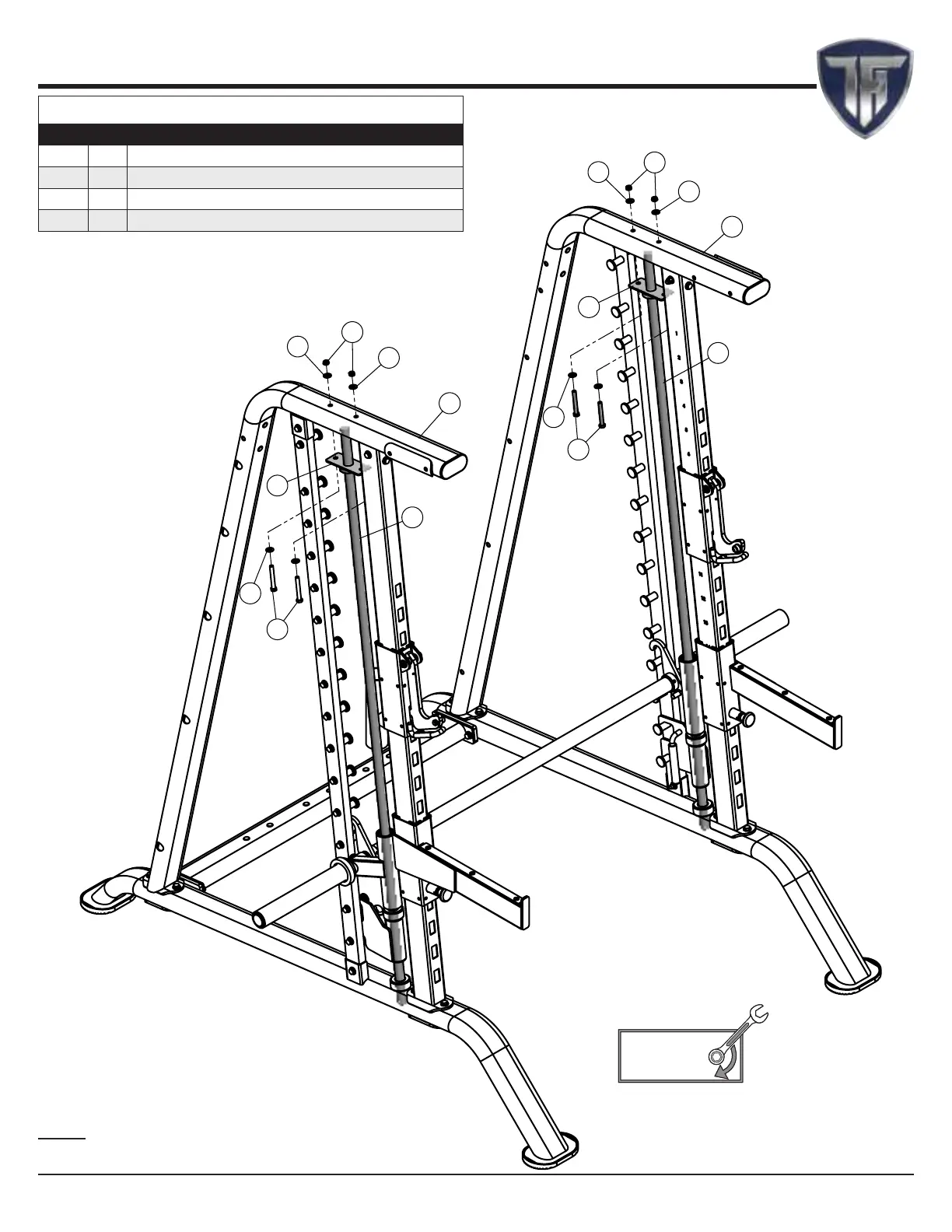

Step 8
Step 8 Assembly List
Item Qty. Description
13 2 SHAFT RETAINER PLATE
28 4 HEX HEAD CAP SCREW GR-5 Z/P 3/8-16 X 2 3/4
35 8 FLAT WASHER SAE Z/P 3/8”
39 4 NYLON INSERT JAM LOCK NUT Z/P 3/8-16
Note:
Some parts have been removed for Clarity.
Loosely Tighten
70%
Loosely Tighten
70%
Loosely tighten all hardware in this step.
DO NOT Fully Tighten. Some component(s)
may need pre-assembly and or alignment
during the assembly process.
21CSM-600 Basic Smith Machine/Half Cage Combo w/Safety Stoppers
