TuffStuff CSM-600 - Page 22

36
38 34
*17
87
*17
87
*17
87
*17
87
4
34
38
36
3638
34
36
38
34
87
*17
87
*17
36
38
34
34
38
36
3
*17
*17
87
87

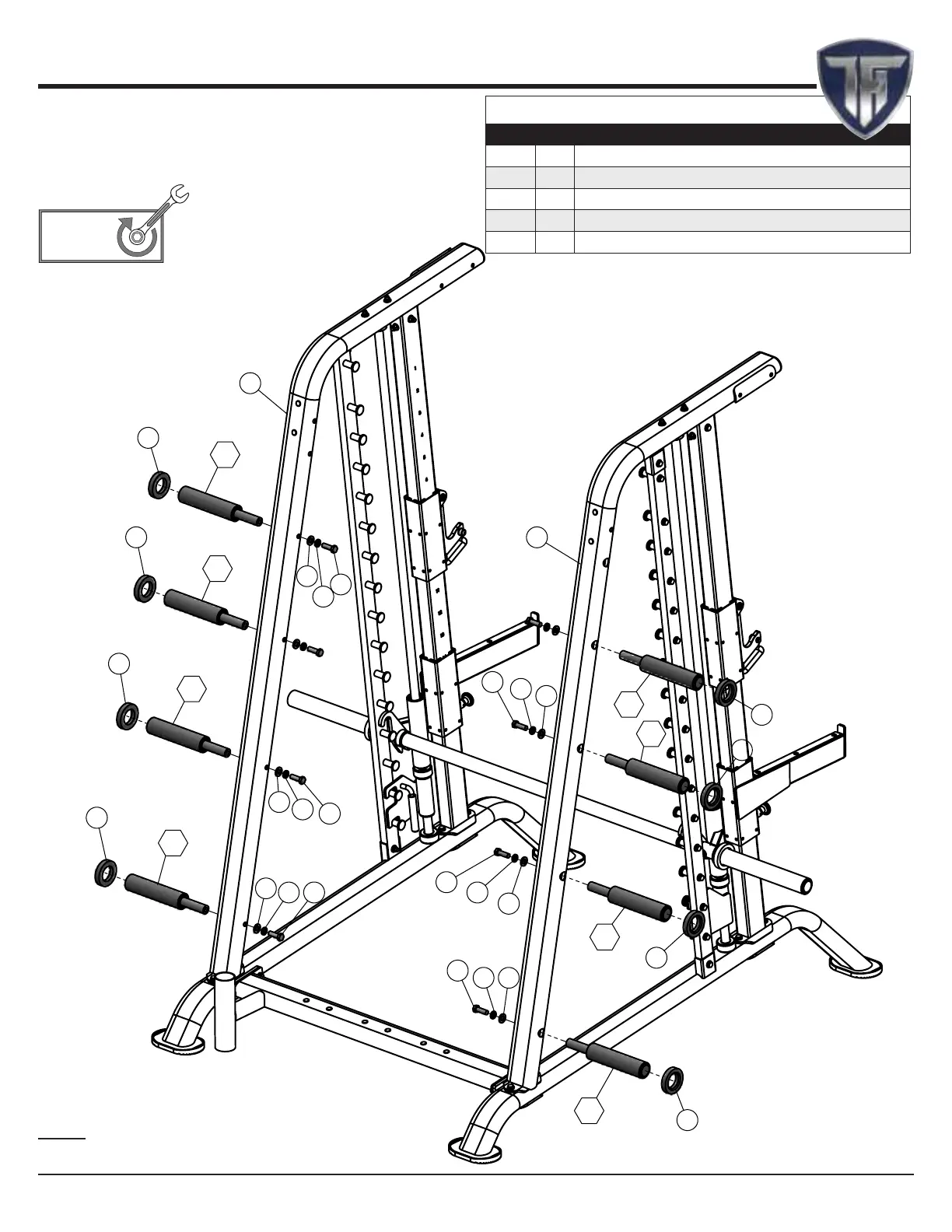

Step 9
Step 9 Assembly List
Item Qty. Description
*17 8 OLYMPIC ADAPTER 1 X 8 X 3 9/16 AXLE ASM
34 8 HEX HEAD CAP SCREW GR-5 Z/P 1/2-13 X 1 1/4
36 8 FLAT WASHER SAE Z/P 1/2”
38 8 SPLIT LOCK WASHER B-Z/P 1/2”
87 8 RUBBER WASHER 1 7/8 ID X 4 1/4 OD X 9/16 TK
100%
Fully Tighten
Wrench tighten all hardware in this step.
Note:
Some parts have been removed for Clarity.
22 CSM-600 Basic Smith Machine/Half Cage Combo w/Safety Stoppers
