TuffStuff CSM-600 - Page 23

78
87
*17
32
36
78
36
38
33
21
33
38
36
36
40
40
36
78
78
36
32
*17
87
3
4

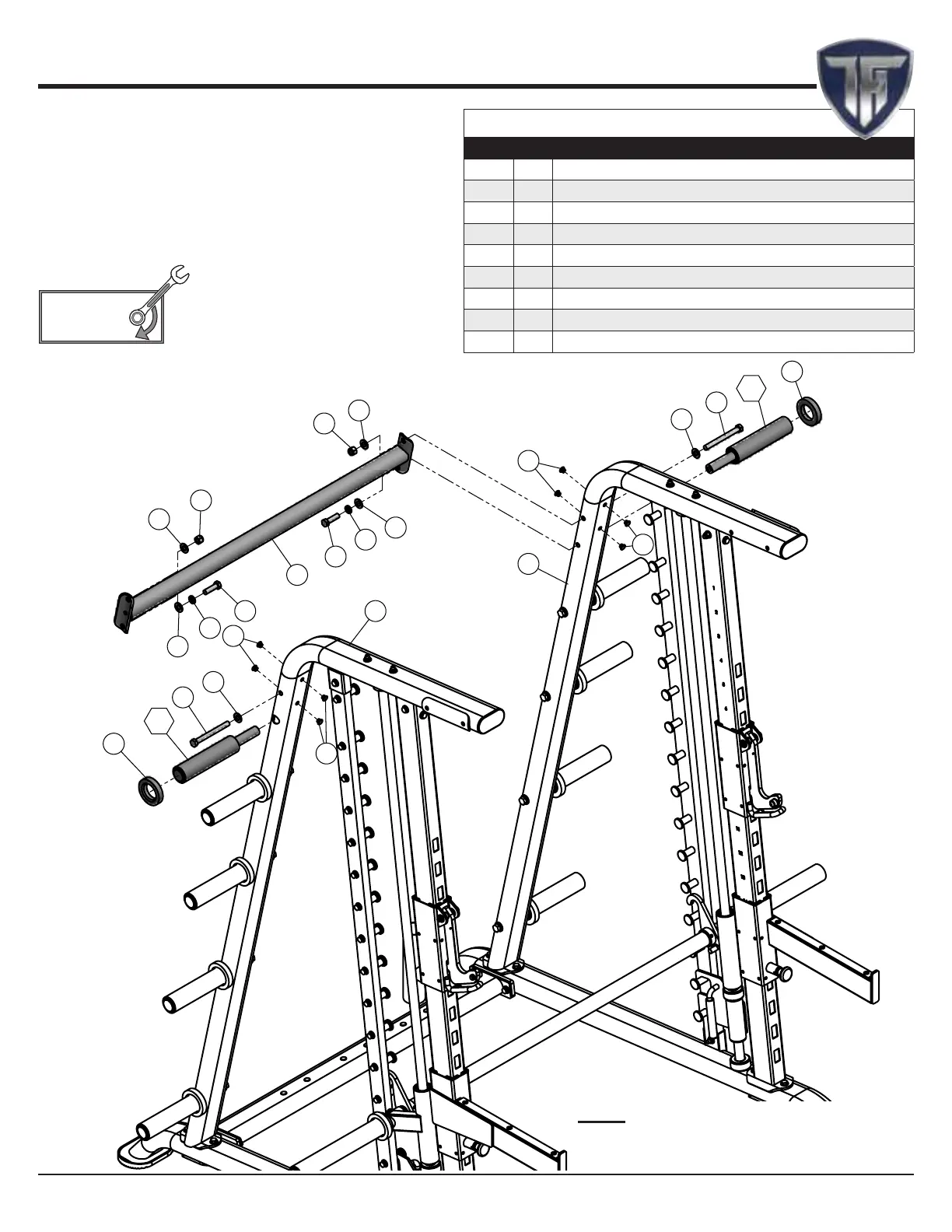

Step 10
Step 10 Assembly List
Item Qty. Description
*17 2 OLYMPIC ADAPTER 1 X 8 X 3 9/16 AXLE ASSEMBLY
21 1 TOP CROSS BRACE
32 2 HEX HEAD CAP SCREW GR-5 Z/P 1/2-13 X 4 3/4
33 2 HEX HEAD CAP SCREW GR-5 Z/P 1/2-13 X 1 1/2
36 6 FLAT WASHER SAE Z/P 1/2”
38 2 SPLIT LOCK WASHER B-Z/P 1/2”
40 2 NYLON INSERT LOCK NUT Z/P 1/2-13
78 8 NYLON SNAP-IN FINISHING PLUG 3/8”
87 2 RUBBER WASHER 1 7/8 ID X 4 1/4 OD X 9/16 TK
Note:
It is strongly recommended that two
people participate in this assembly step.
Loosely Tighten
70%
Loosely Tighten
70%
Loosely tighten all hardware in this step.
DO NOT Fully Tighten. Some component(s)
may need pre-assembly and or alignment
during the assembly process.
23CSM-600 Basic Smith Machine/Half Cage Combo w/Safety Stoppers
