Note:
If you are Assembling the CHL-610WS High/
Low Pulley w/200 lbs Weight Stack to the
CSM-600, skip the assembly of the NYLON
SNAP-IN FINISHING PLUG 3/8” (#78)

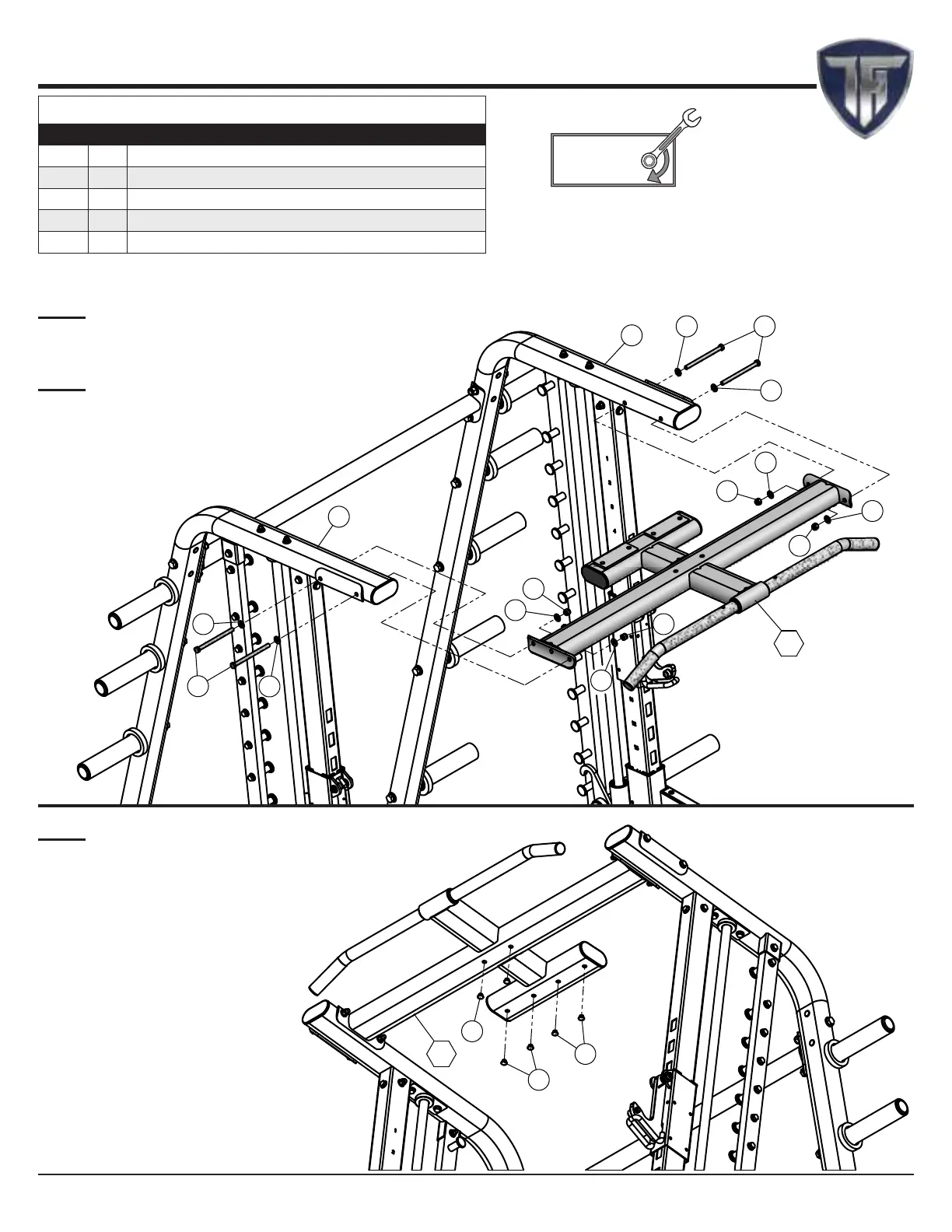

Step 11
Step 11 Assembly List
Item Qty. Description
*22 1 TOP CROSS BRACE WITH CHIN UP BAR ASSEMBLY
25 4 HEX HEAD CAP SCREW GR-5 Z/P 3/8-16 X 5
35 8 FLAT WASHER SAE Z/P 3/8”
39 4 NYLON INSERT JAM LOCK NUT Z/P 3/8-16
78 6 NYLON SNAP-IN FINISHING PLUG 3/8”
Note:
Some parts have been removed for Clarity.
Note:
It is strongly recommended that two
people participate in this assembly step.
Loosely Tighten
70%
Loosely Tighten
70%
Loosely tighten all hardware in this step.
DO NOT Fully Tighten. Some component(s)
may need pre-assembly and or alignment
during the assembly process.
24 CSM-600 Basic Smith Machine/Half Cage Combo w/Safety Stoppers
