SP-403 Multi-Press

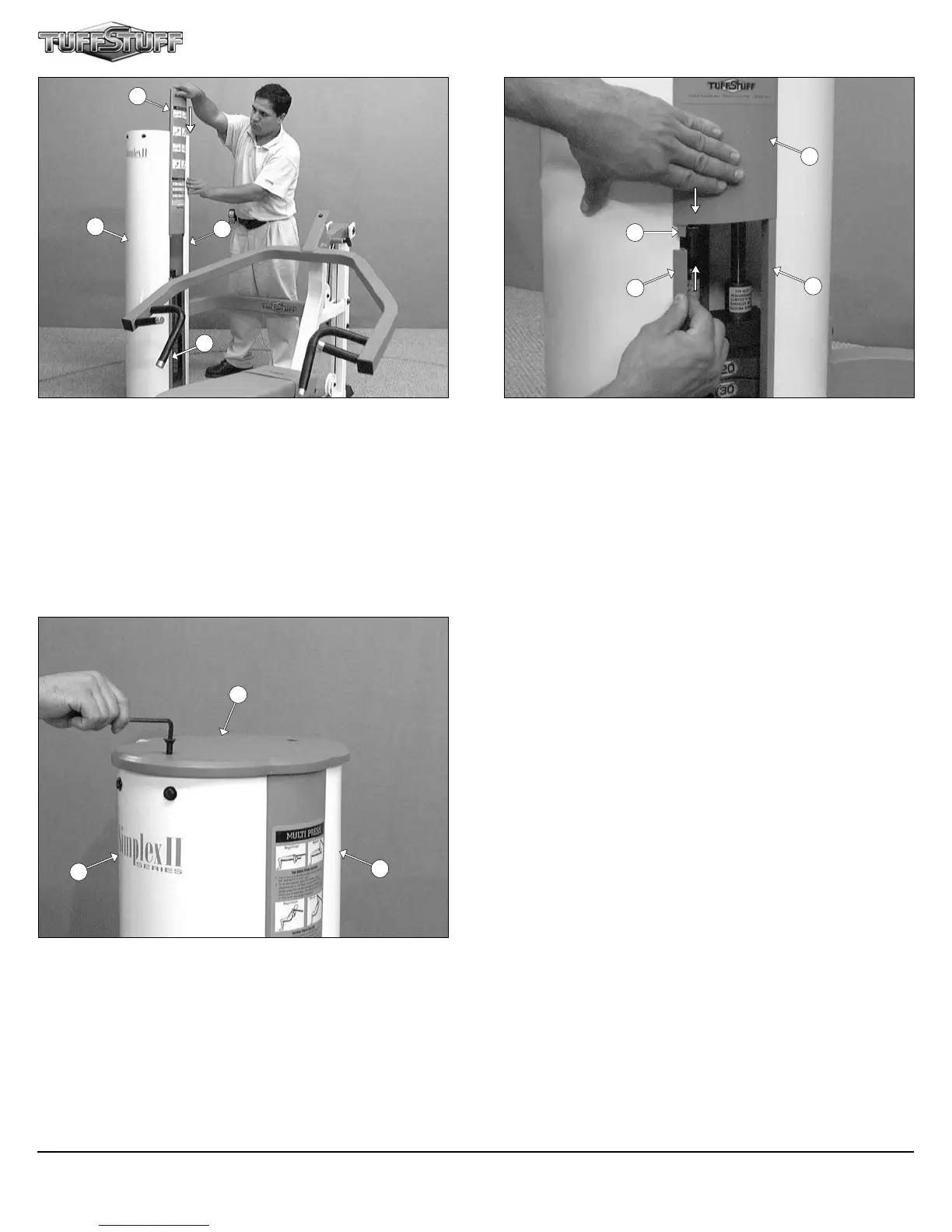

FIG. 28 Connect the two Plastic Shroud Edge Protectors (#12) to
the Plastic Shroud Gap Cover (#10) using the two Plastic Connectors
(#6).
10
6
12
12
FIG. 29 Attach the Plastic Shroud Lid (#11) to Guide Rod Retainer
(#5), in the position as shown above, and secure it into place using
two Flat Head Socket Cap Screws 3/8-16 X 3 (#25).
11
2
3
FIG. 27 Align the edges of both Shrouds (#2, #3) with the grooves
of the Plastic Shroud Gap Cover (#10) and slide it down, as shown
above.
10
3
2
