CABLE ADJUSTMENT
It is imperative that you maintain proper cable adjustment to ensure
a safe and smooth operation.
Caution: The Cable should be inspected and adjusted peri-
odically to avoid any slack in the cable which would, conse-
quently, prevent any damage to the equipment or personal in-
jury.

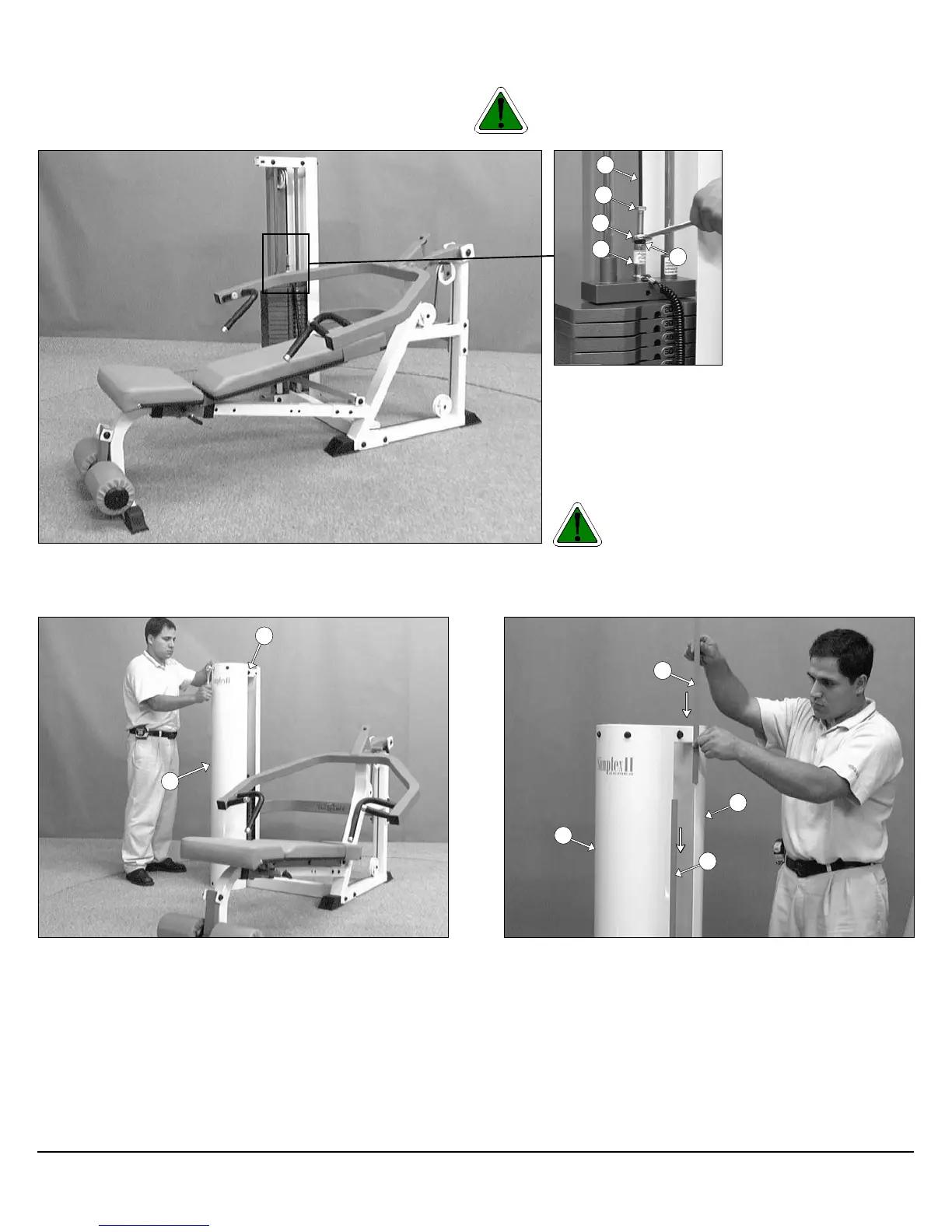

FIG. 25 Affix the Weight Shroud (#2) to the bottom of the Weight
Stack Frame (#1) and at the top of the Guide Rod Retainer (#5) us-
ing four Hex Head Cap Screws 1/4-20 X 3/4 (#21), and four Flat
Washers 1/4” (#20).
8
SP-403 Multi-Press
Cable Adjustment
1. Loosen the Finished Hex Nut 1/2-13 (#69).
2. Thread the Cable Hex Tap Bolt 1/2-13 X 3 (#88) in or out
of the threaded socket of the Top Plate Selector Bar (#9)
to give the Cable (#87) proper tension.
3. Re-tighten the Finished Hex Nut 1/2-13 (#69) to complete
the adjustment.
Caution: Make sure the Cable Hex Tap Bolt 1/2-13
X 3 (#88) is threaded at least 1/2” into the threaded
socket of the Top Plate Selector Bar (#9) once the
cable adjustment has been completed.
88
9
66
69
FIG. 26 Insert the two Plastic Shroud Edge Protectors (#12) to both
Shrouds (#2, #3), in the position as shown above, and slide them all
the way down.
12
12
3
2
2
5
87
