TuffStuff Multi-Press SP-403 - Page 8

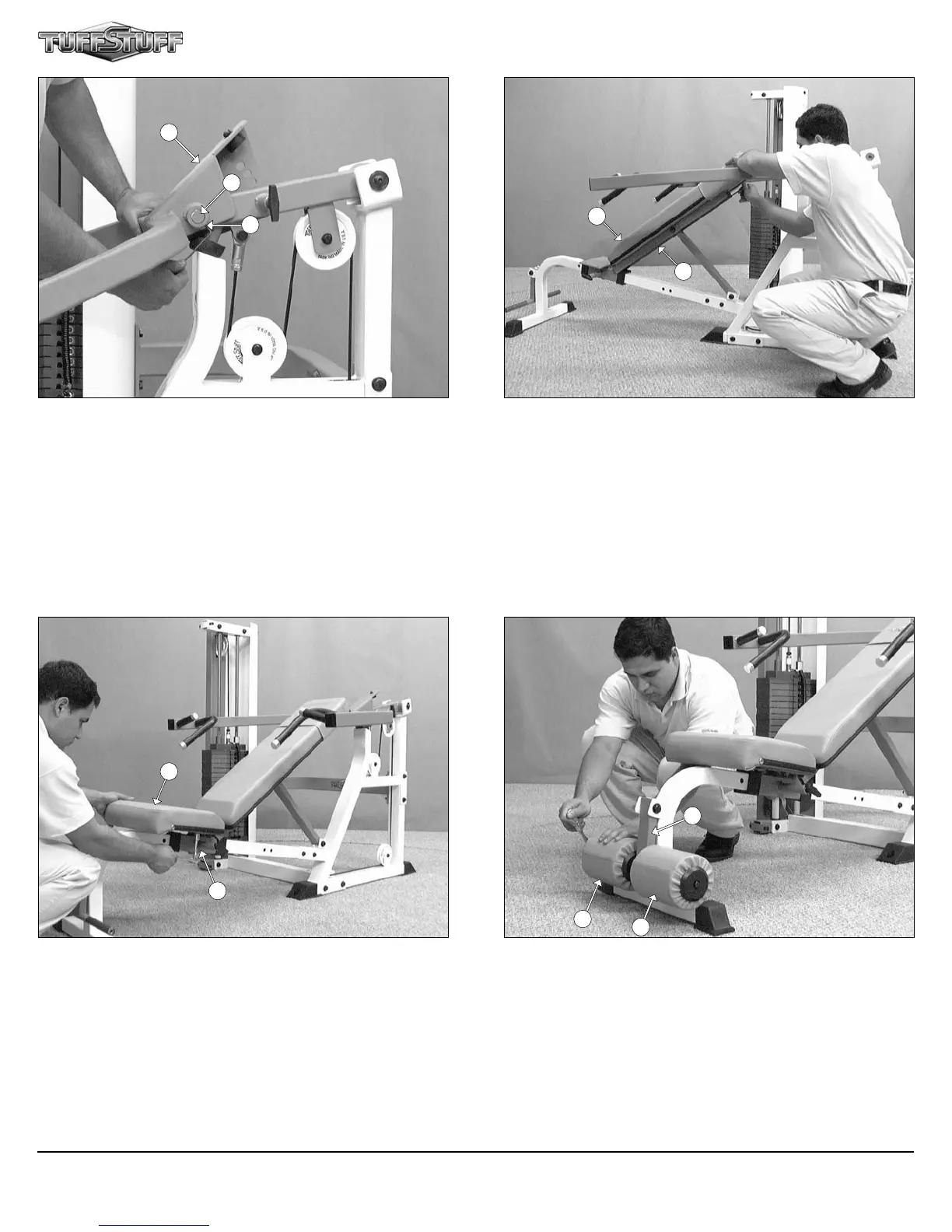

FIG. 21 Secure the Press Bar (#31) to the Press Bar Pivot Axle
(#34) using two Socket Set Screws 1/4-20 X 1/4 (#86). Use the sup-
plied Hex Key 1/8” (#92) for securing both Socket Set Screws.
FIG. 22 Affix the Back Pad (#44) to the Bench Back Pad Frame
(#36), in the position as shown above, using two Flat Head Socket
Cap Screws 3/8-16 X 1 1/4 (#25). Use the supplied Hex Key
7/32” (#93) for securing both Flat Head Socket Cap Screws.
FIG. 23 Affix the Seat Pad (#43) to the Bench Slide Carriage
(#42), in the position as shown above, using four Hex Head Cap
Screws 3/8-16 X 1 1/4 (#75), and four Flat Washers SAE 3/8” (#19).
FIG. 24 Insert a Foot Roll 1 X 5 1/2 X 7 1/4 (#46) over each tube-
end of the Bench Foot Roll Holder (#41), and secure them into
place using two Hex Head Cap Screws 3/8-16 X 1 1/2 (#76).
7
SP-403 Multi-Press
31
34
86
44
36
43
42
41
46
46
