TuffStuff SXT-LP - Step 5 Assembly

Leg Press Option for XT Gym Series www.tu stu tness.com
19
38
62
28
57
60
28
62
42
*8
38

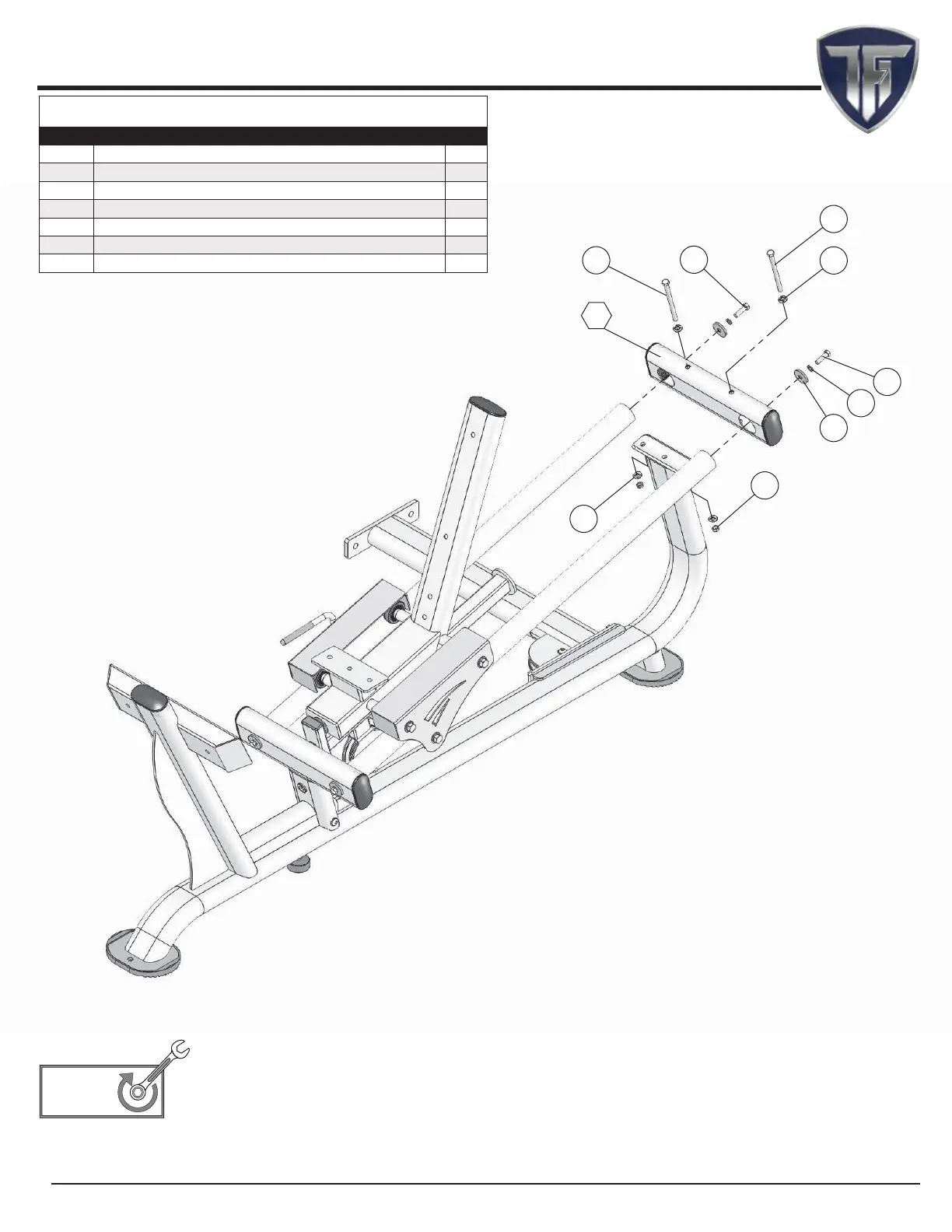

Step 5
Note:
1. Refer to pages 32-33 for Rail Wheel Adjustment
100%
Fully Tighten
Fully Tighten
Wrench tighten all hardware in this and
previous loosely tighten steps.
Step 5 Assembly List
Item # Description Qty.
*8 LINEAR SHAFT HOUSING 1
28 HEX HEAD CAP SCREW GR-5 Z/P 3/8-16 X 1 1/4 2
38 HEX HEAD CAP SCREW GR-5 Z/P 3/8-16 X 4 3/4 2
42 NYLON INSERT THIN PATTERN LOCK NUT Z/P 3/8-16 2
57 SPLIT LOCK WASHER Z/P 3/8” 2
60 FLAT WASHER Z/P 3/8 ID X 1 1/2 OD X 3/16 2
62 OVAL WASHER Z/P 3/8” 4
