TuffStuff SXT-LP - Step 4 Assembly

Leg Press Option for XT Gym Serieswww.tu stu tness.com
18
57
28
9
9
*4
60

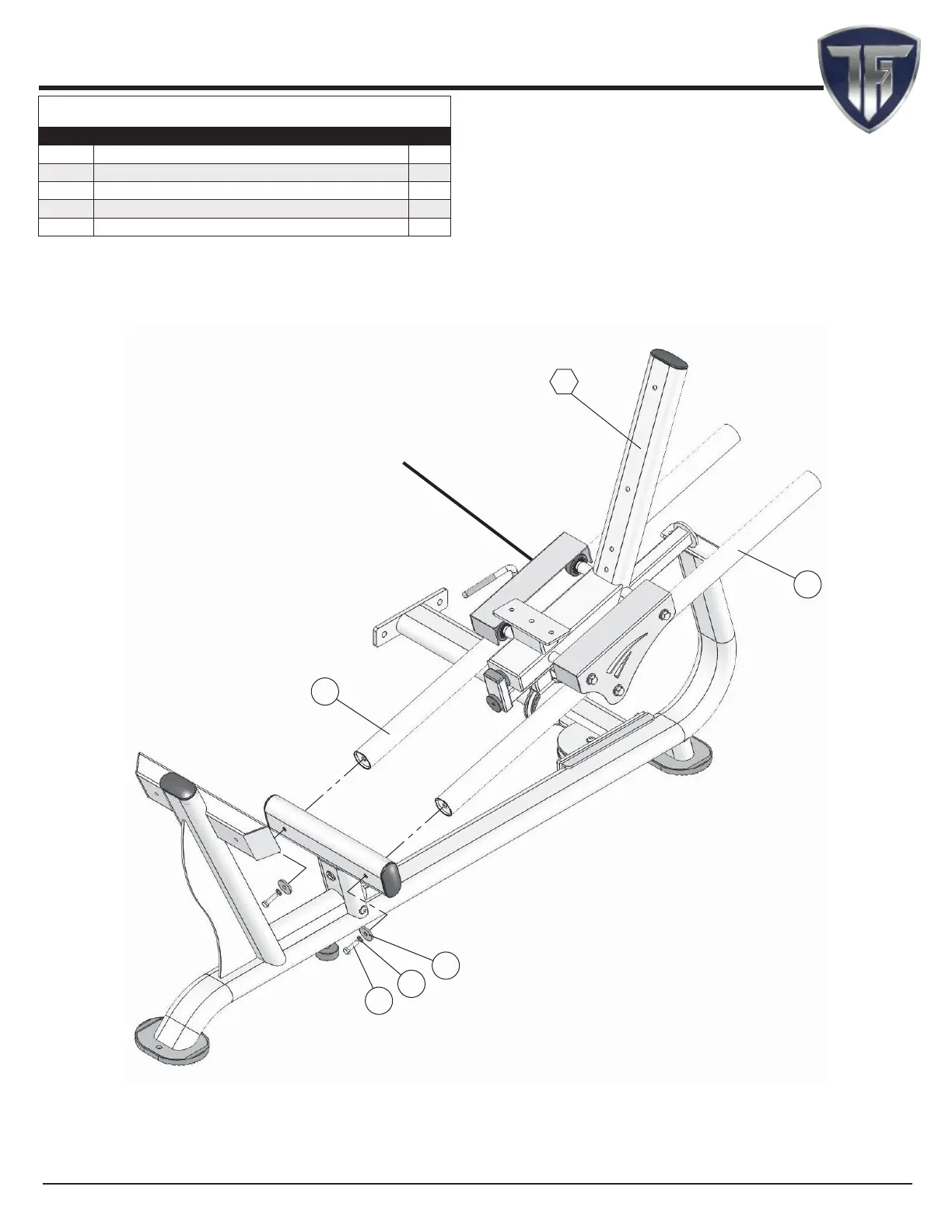

Step 4
NOTE:
1. Two people required for this step.
Step 3 Assembly List
Item # Description Qty.
*4 CARRIAGE 1
9 LINEAR SHAFT 2
28 HEX HEAD CAP SCREW GR-5 Z/P 3/8-16 X 1 1/4 2
57 SPLIT LOCK WASHER Z/P 3/8” 2
60 FLAT WASHER Z/P 3/8 ID X 1 1/2 OD X 3/16 2
CAUTION WITH SLIDING CARRIAGE
