Tunstall ID-Lock Smart - Split Mechanics Exploded View

ID-Lock Smart Installation guide - Ver. 1.3
6

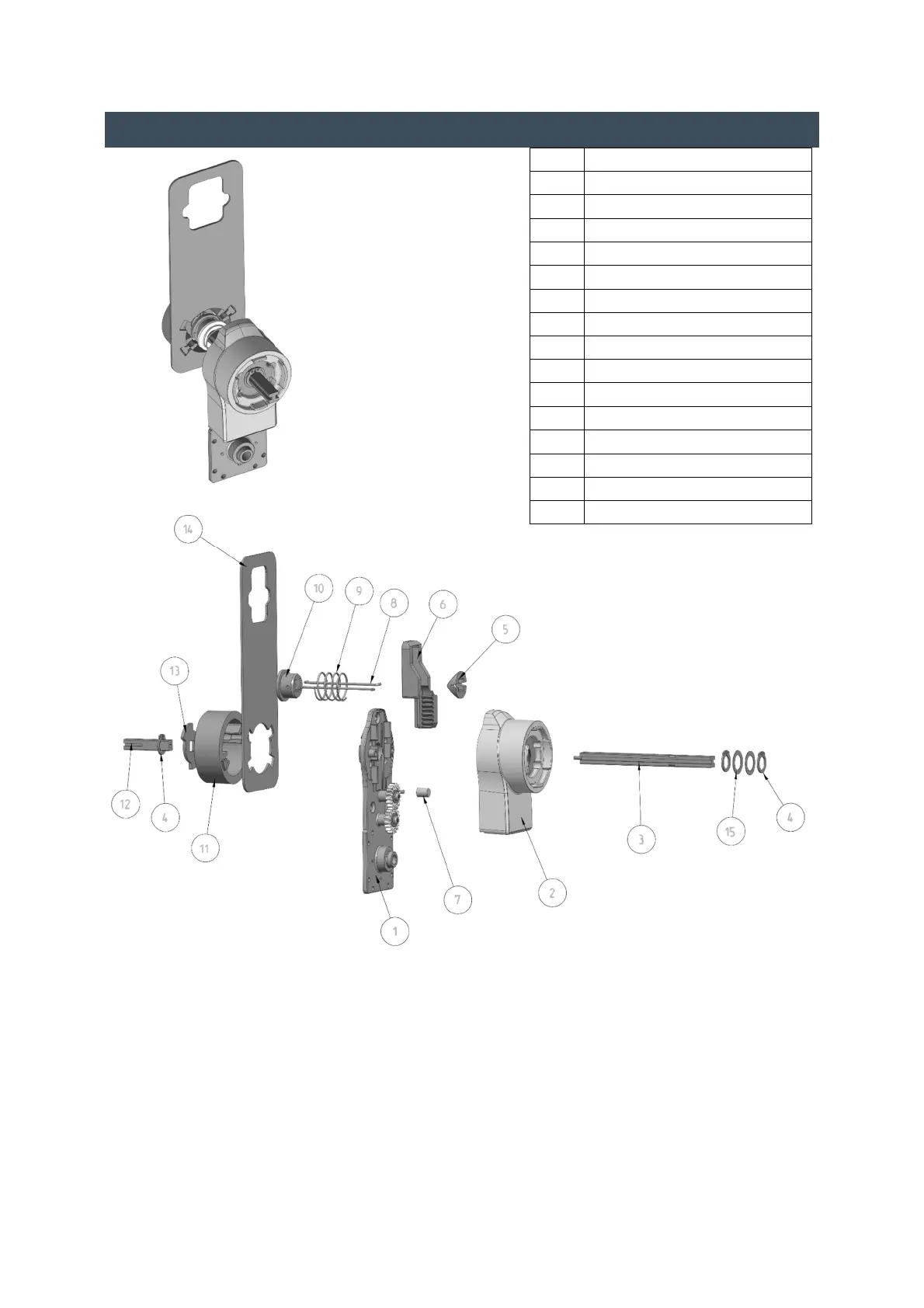

Exploded view of the Split mechanics
Item Name
1 Satellite bottom
2 Top cabinet
3 Main spindle
4 Circlip
5 Wire sleeve
6 Tooth module
7 Support roller
8 Steel wire
9 Spring
10 Outer wire sleeve
11 Outer spacer
12 Outer spindle
13 Limit bracket
14 Door plate
15 Shim washer
