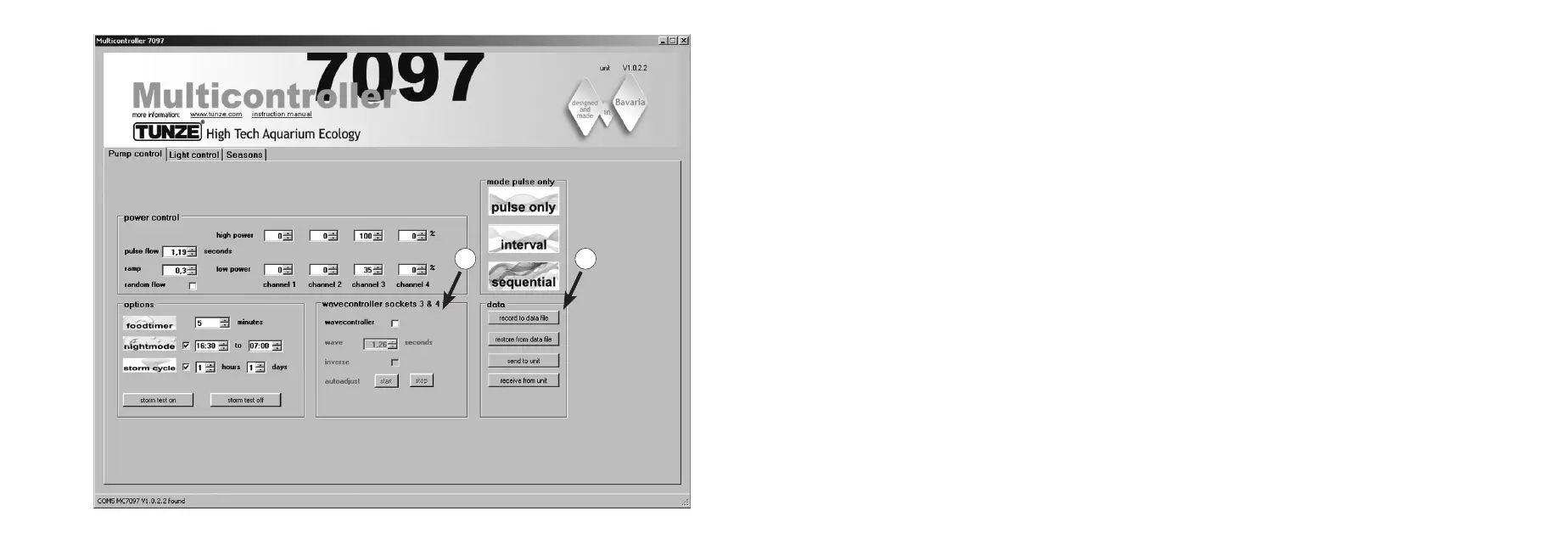

Field “wavecontroller socket 3 & 4“ (4)
The Wavecontroller function can be switched independently at the outputs 3 and 4 four each “mode“. This function
was especially designed for the use of TUNZE
®
Waveboxes, and is also interesting option for the electronically
controlled Turbelle
®
propeller pumps.
This eld is used to activate the function, but also the automatic search for the wave frequency, and direct or reciprocal
switching of the Waveboxes.
Field “data“ (5)
This eld is used activate the connections between the Multicontroller 7097 and computer:
“record to data le“ = saves the settings of the Multicontroller into a le on the computer.
“restore from data le“ = the data stored on the computer transferred back to the Multicontroller.
“send to unit“ = computer settings are sent to the Multicontroller.
“receive from unit“ = the Multicontroller settings are sent to the computer.
4
5
