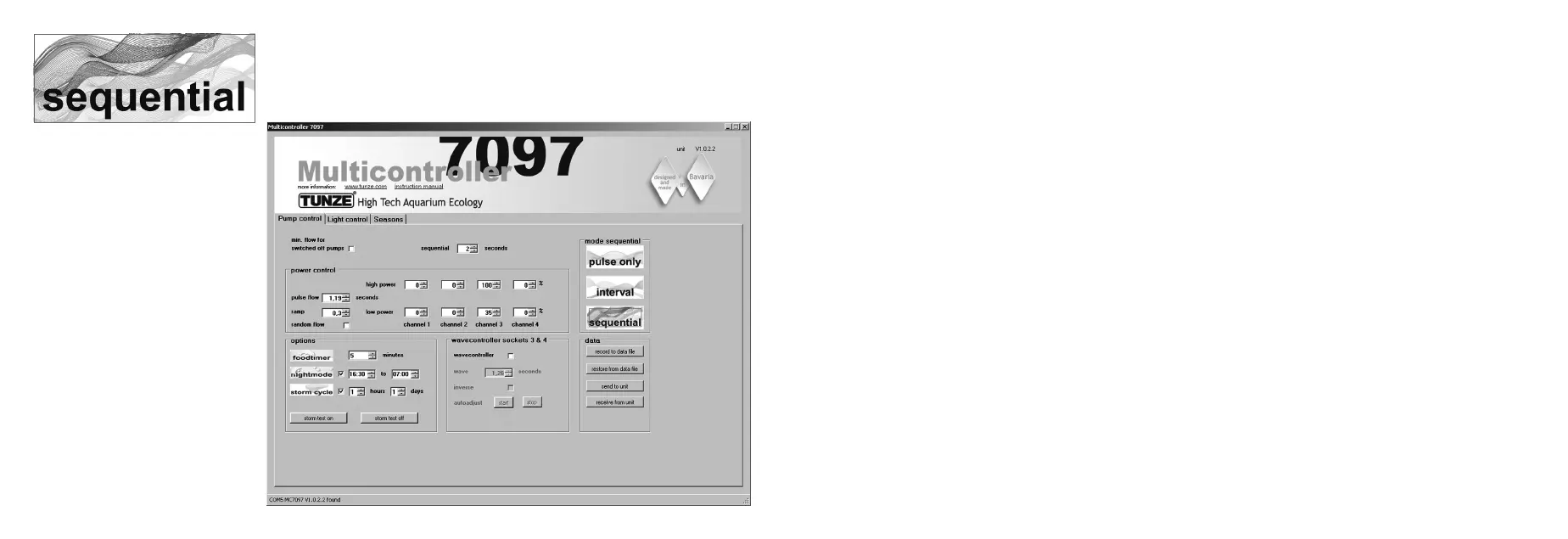

An example for “sequential“:
Outputs 1 and 2, “low power“ at 80% and “high power“ at 80%.
Outputs 3 and 4, “low power“ at 100% and “high power“ at 100%.
„Sequential“ switching time at 2 sec.
Connect a pump to each socket of the outputs.
Result:
Pump 1 will start with 80% power.
2 seconds later pump 2 will start with 80% power.
2 seconds later pump 3 will start with 100% power.
2 seconds later pump 4 will start with 100% power.
2 seconds later all four pumps will stop.
2 seconds later pump 1 will start again, etc.
If the “wavecontroller“ function is activated, the outputs 3 and 4 will be used, the sequential pump circuit “sequential“
will then only be active for outputs 1 and 2.
