user manual
FLEX ARRAY
FLEX ARRAY user manual
Page 39

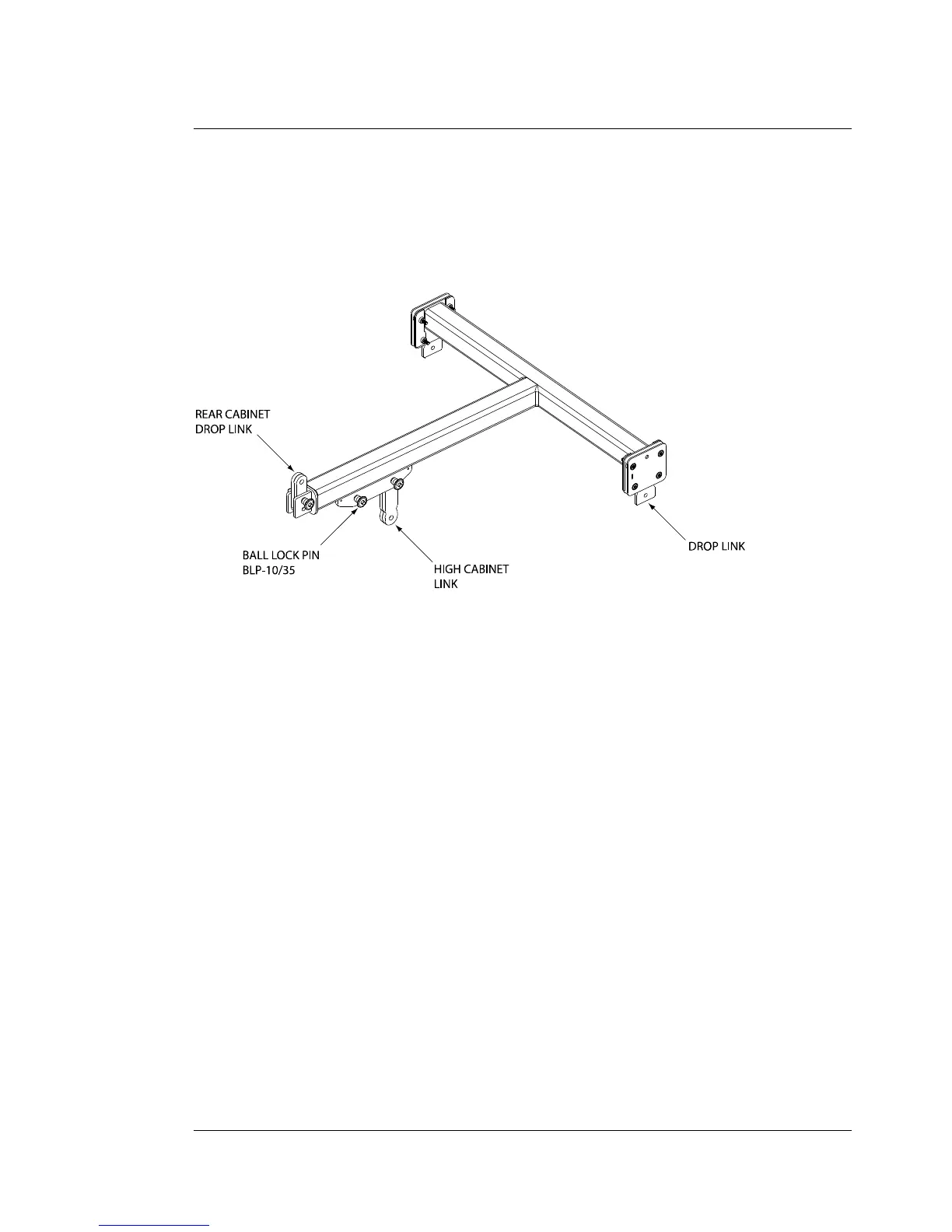

CF-600 Conversion Frame
Used to interface between bass cabinets and mid/high cabinets in a flown column of Flex
Array loudspeakers. The conversion frame has a SWL of 520kg which enables a column of up
to a maximum of 12 TFA-600H cabinets to be suspended below it.
The CF-600 conversion frame also functions as a ground stacking frame, interfacing between
ground stacked TFA-600L bass cabinets and the mid-high cabinets positioned on top.
The net weight of the conversion frame is 11kg (24.2lbs)
