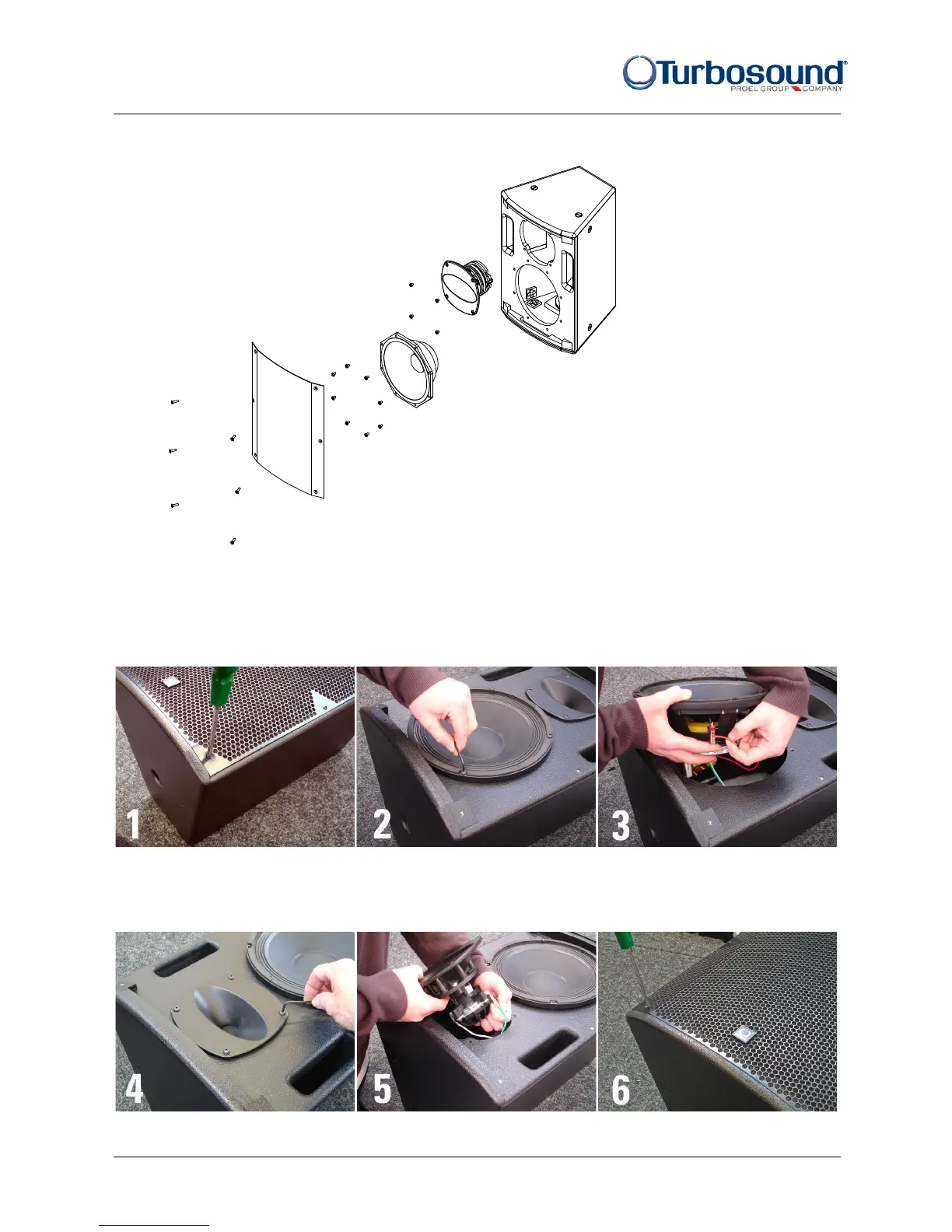

Servicing and driver removal
1. Place the cabinet on its back on a suitable work surface. Remove the six Pozidrive countersunk screws that hold the grille in
place and set the grille aside (fig 1).
2. Remove the M5 hex head bass driver fixings screws (fig 2).
3. Disconnect and remove the bass driver, making a note of the polarity for later reconnection (fig 3).
4. Remove the M5 hex head HF horn fixing screws (fig 4).
5. Lift out the horn and compression driver assembly. Disconnect the cables from the compression driver, making a note of the
polarity for later reconnection (fig 5).
