Note: Please remove all foams inside the enclosure box before using,
since they are used as protection during shipping.
Part 1: Mounting the Rain Shade
Mount rain shade to the left side of the SkyShield with 4x M4*10mm Screws.
Rain Shade can be found in a brown box inside the Enclosure.

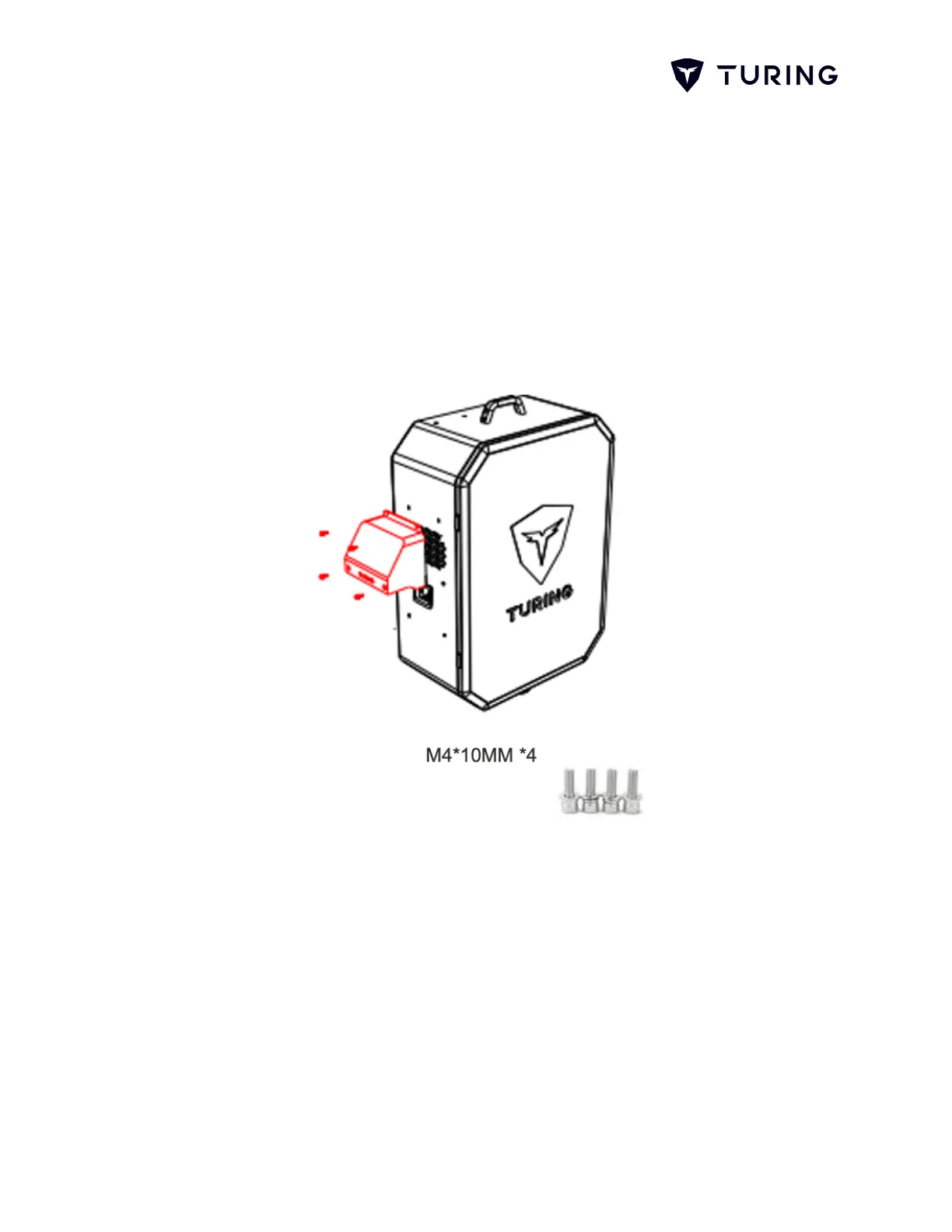

Fig. 2.1 Mounting Rain Shade
Part 2: Mounting Cameras to the SkyShield
Mount cameras to the SkyShield left, right, or bottom, depending on the camera you
selected. A few different scenarios and how users mount cameras to the SkyShield are
listed below
