5
STEP
6
STEP
•

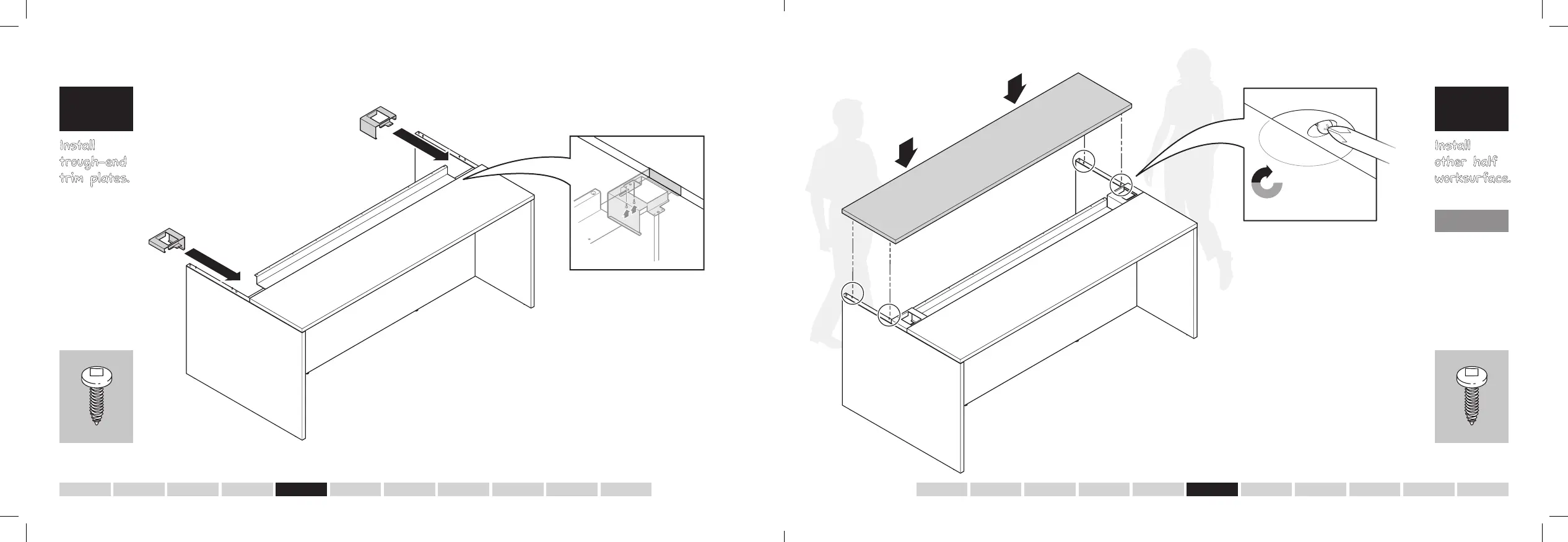

Install the trough-end trim
plates. Be sure the longer
side of the trim plate goes
on the inside and the lip
covers the edge of the leg.
•
After the trim plates are
in place, tighten from
underneath the installed
worksurface using the
X screws.
View from under big table.
Install
trough-end
trim plates.
Install
other half
worksurface.
1 2 3 4 5 6 7 8 9 10 11
•
Call over your friend again to help place the
second half worksurface onto the leg structure.
•
Carefully line up the holes on the bottom of the
worksurface with the metal extrusions on the
top of the base.
•
After the worksurface top is in place, tighten the
cam-locks underneath the table.
4x
1 2 3 4 5 6 7 8 9 10 11
tip
Make sure the
cam-locks on
the worksurface
are turned to the
left (Just like in
step 2).
tip
Use X screw.
size: #10 x 1.071"
Use X screw.
size: #10 x 1.071"
Half turn to the right. Repeat 4 times.
To Next Page
