STEP
•

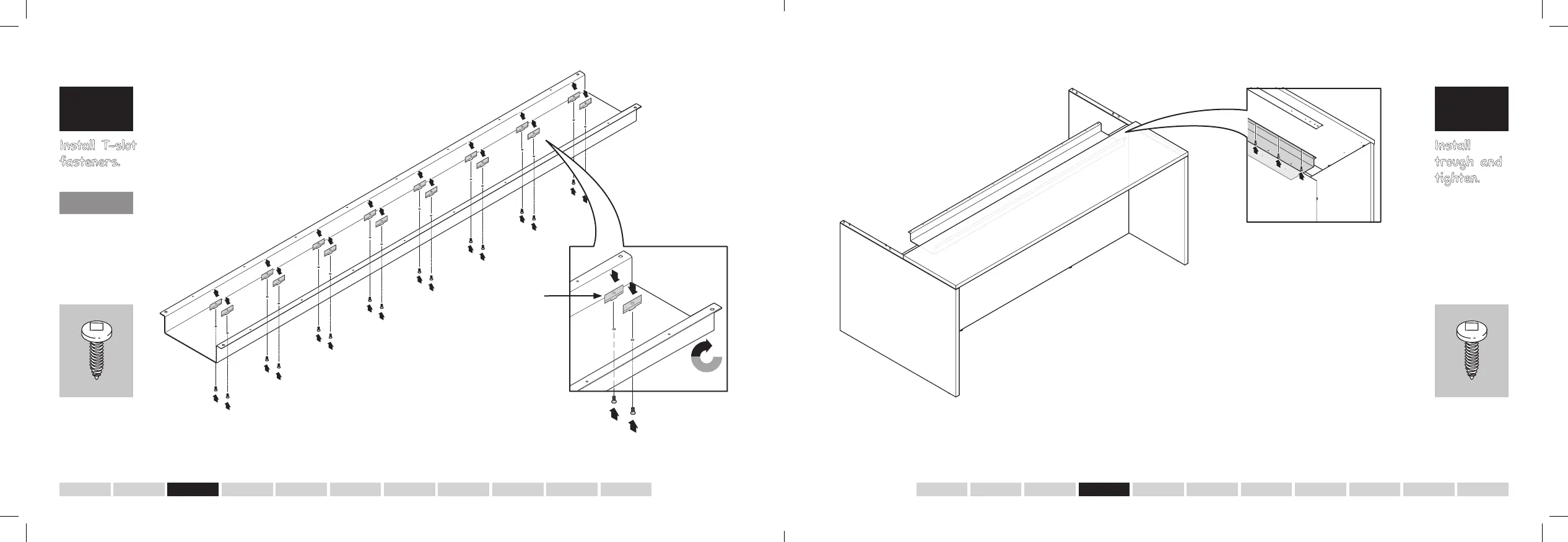

Install the T-slot fasteners loosely into
the center trough by inserting the
screws into the pre-drilled holes and
turning loosely from the bottom.
16x
T-slot fastener
Install T-slot
fasteners.
tip
Use the packaging
to balance the
trough on its side
to easily connect
the fasteners.
4
STEP
•
Place trough underneath the worksurface
and make sure the two rows of fasteners
straddle the center rail.
•
After the trough is in place, look for the
guide holes on the bottom of the
worksurface (second hole in on each
side) to help align the trough. Tighten
from underneath using screw X.
View from under big table.
Install
trough and
tighten.
1 2 3 4 5 6 7 8 9 10 11 1 2 3 4 5 6 7 8 9 10 11
Use X screw.
size: #10 x 1.071"
Use X screw.
size: #10 x 1.071"
To Next Page
